ITX-MB61

ITX-MB61

Mini itx boad support 2nd generation Intel Core i7 i5 i3 LGA1155 CPU

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Mini Itx Boad
Mini Itx Boad

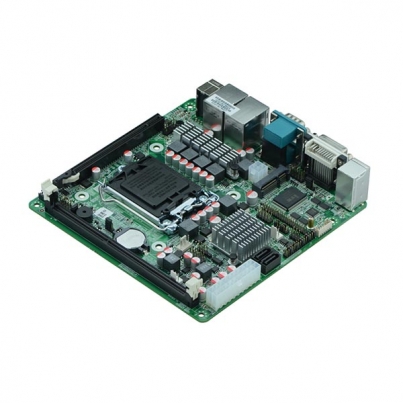

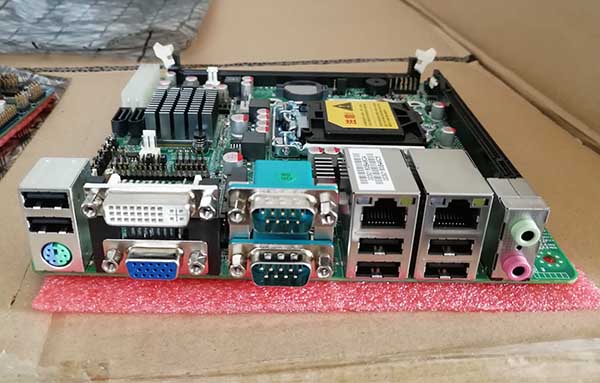

Mini itx boad [Photo.2]
Mini itx boad [Photo.2]

Features
  • CPU LGA1155 Intel Core i3/i5/i7 32nm/22nm Processor
  • Chipset Intel H61 Chipset
  • Memory 1* DDRIII DIMM 1066/1333MHz,Max. up to 8GB
  • Graphics Intel HD Graphics ,support VGA/DVI synchronous/asynchronous display
  • Expansion Slots 1* PCI-Express 2.0 16x           1* MPCIE (support SSD/WIFI/USB WIFI)
  • LAN 2* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
  • Storage 2* SATAIII 6Gbps
Specifications
  • CPU LGA1155 Intel庐 Core i3/i5/i7 32nm/22nm Processor
  • Chipset Intel庐 H61 Chipset
  • Memory 1* DDRIII DIMM 1066/1333MHz,Max. up to 8GB
  • Graphics Intel庐 HD Graphics ,support VGA/DVI synchronous/asynchronous display
  • Expansion Slots 1* PCI-Express 2.0 16x           1* MPCIE (support SSD/WIFI/USB WIFI)
  • LAN 2* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
  • Storage 2* SATAIII 6Gbps
  • Audio Integrated Realtek HD ALC662 for 6-Channel output
    support MIC/Line-out/Line-in
  • Rear I/O

    1* PS/2, 6* USB 2.0, 1* DVI, 1* VGA , 2* RS232 (COM1 supports RS422/485), 2* RJ-45 LAN, 1* AUDIO I/O (MIC and Line-out)

  • Internal I/O 4* RS232, the 9th pin supports +5V/+12V charged function, 1* TX-RXCOM (RS422/485), 3* USB 2.0, 1* JVGA 2*5pin,  1* AUDIO pin (Front Audio interface 2*5pin) , 1* FP1 (2*5pin Front panel buttons and LED connected)
  • Fun interface 1* CPUFAN 4pin 2* SYSFAN 3pin
  • GPIO 1* GPIO (Support 4-way GPIO function)
  • BIOS 32MB SMT Flash ROM
  • Watchdog Support hardware reset function (L256, 0~255 seconds)
  • Power Input 20pin ATX Power Supply
  • Operating Temp. -10°C~60°C
  • Storage Temp. -20°C~70°C
  • Humidity 0%-95%(relative humidity; non-condensing)
  • Dimension 170mm x 170mm
