IDM-08-M10

Industrial panel monitor with Resistive Touch Screen, 8" LCD Panel, 1024 x 768, XGA, LED Backlight, VGA, 4:3


  • Touch Screen: Resistive Touch Screen
  • Size: 8" LCD Panel
  • Resolution: 1024 x 768, XGA
  • Backlight Type: LED Backlight
  • Signal Interface: VGA
  • Video Format: 4:3

Specifications

Display

Display Type 8" XGA TFT LCD
Resolution 1024x768
Max.color 16.7M
Luminance 350 cd/m2
View Angle 110掳(H) , 120掳(V)
Pixel Pitch 0.15825脳0.15825mm
Contrast Ratio 700 : 1
Response Time 8  ms
LCD MTBF 50,000hrs

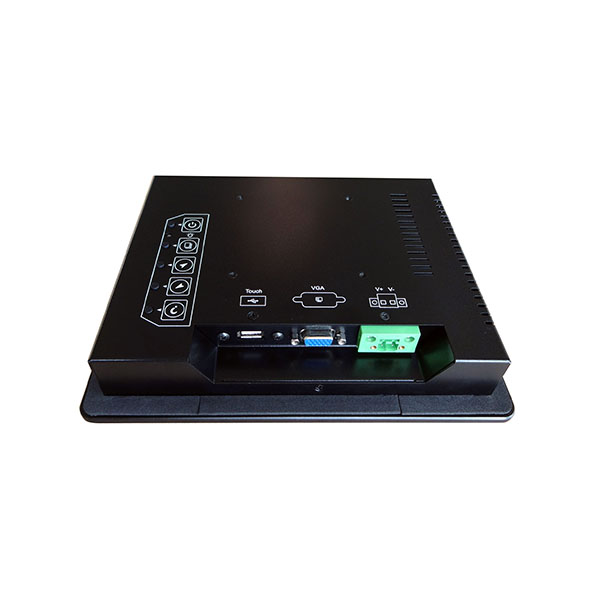

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input No

Power supply

Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0 掳C to 50 掳C
Storage temperature -20 掳C to 60 掳C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Packing info

Dimensions (WxHxD) 287.5 x 231 x 50 mm
Weight Net: 3.0 kg , Gross: 4.5 kg

Tags: Industrial panel monitor, Resistive Touch Screen, 8" LCD Panel, 1024 x 768, XGA
