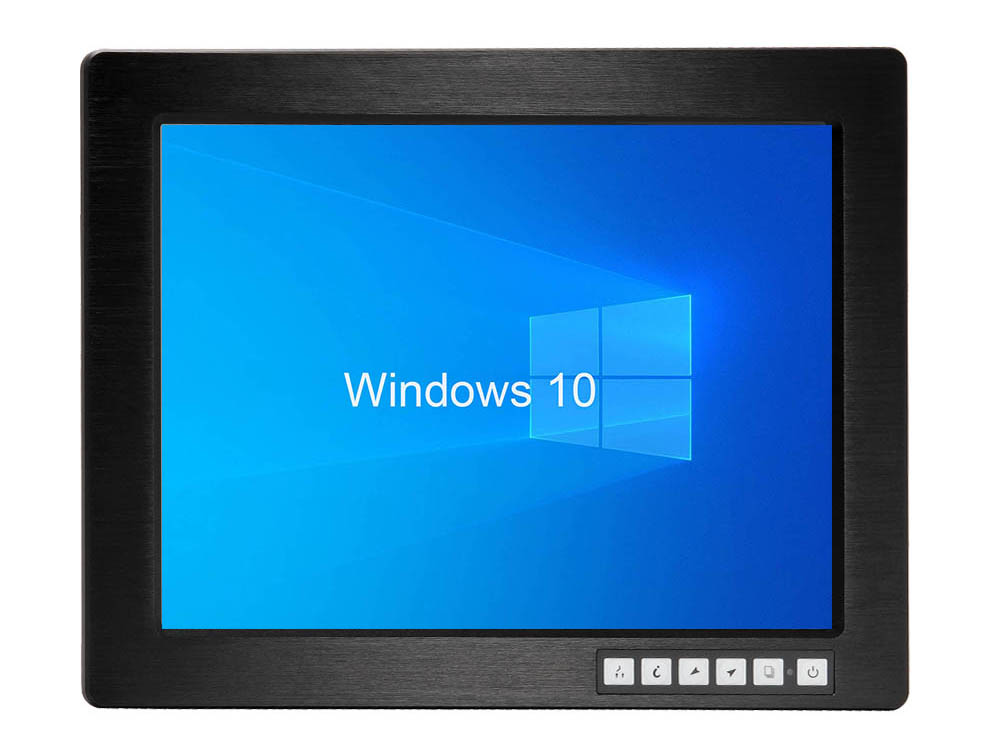

IDM-15-M17

Industrial panel monitor with Resistive Touch Screen, 15" LCD Panel, 1024 x 768, XGA, LED Backlight, VGA , HDMI, 4:3


  • Touch Screen: Resistive Touch Screen
  • Size: 15" LCD Panel
  • Resolution: 1024 x 768, XGA
  • Backlight Type: LED Backlight
  • Signal Interface: VGA , HDMI
  • Video Format: 4:3

Specifications

Display

Display Type 15" SXGA TFT LCD
Resolution 1024 x 768
Max.color 16.2M
Luminance 250 cd/m2
View Angle 178掳(H) , 160掳(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 700:1
Response Time 5 ms
LCD MTBF 50,000hrs

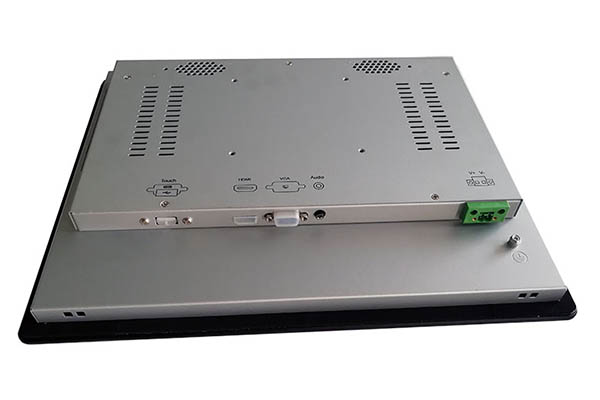

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
VideO Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite video/Audio, S-videO Input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0 掳C to 50 掳C
Storage temperature -20 掳C to 60 掳C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Packing info

Dimensions (WxHxD) 375 x 300 x 42 mm
Weight Net: 6.0kg , Gross: 8.0 kg


Industrial panel monitor, touch screen industrial monitor with hdmi

Tags: Industrial panel monitor, Resistive Touch Screen, 15" LCD Panel, 1024 x 768, XGA
