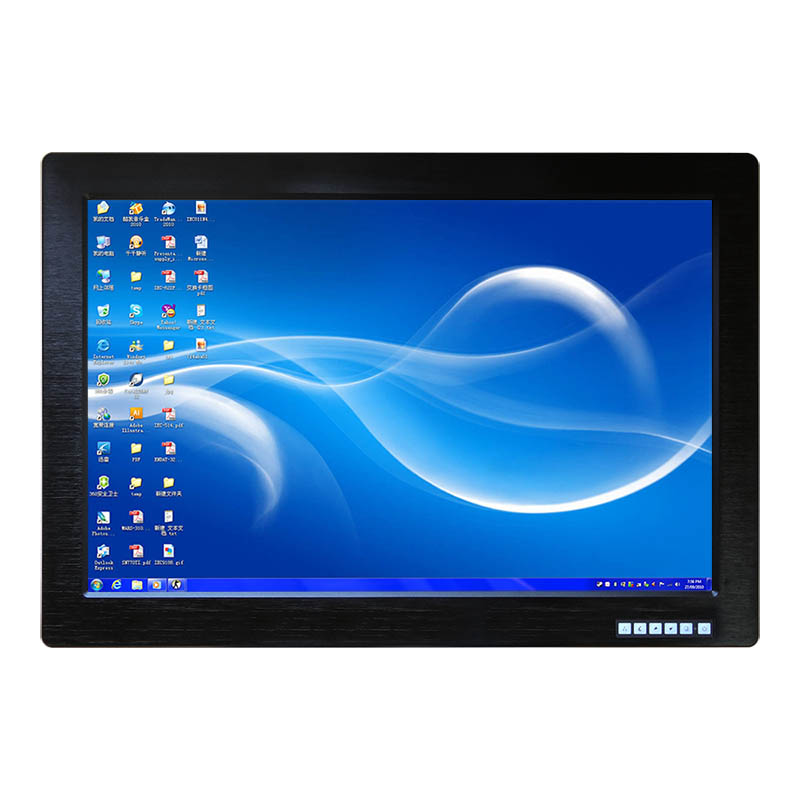

IDM-32W-M22

Wide screen industrtial monitor with Resistive Touch Screen, 32" Wide LCD, 1920x1080 Full HD, LED Backlight, VGA , DVI, 16:9


  • Touch Screen: Resistive Touch Screen
  • Size: 32" Wide LCD
  • Resolution: 1920x1080 Full HD
  • Backlight Type: LED Backlight
  • Signal Interface: VGA , DVI
  • Video Format: 16:9

Specifications

Display

Display Type 32" HDTV TFT LCD(Backlight LED)
Resolution 1920x1080 (WSUGA)
Max.color 16.7M
Luminance 300 cd/m2
View Angle 85掳(H) , 75掳(V)
Contrast Ratio 1000:1
Response Time 8 ms
Backlight Life 50,000hrs

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input 2-Pin Terminal Block
HDMI Signal HDMI connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive type touch screen with USB  controller
DC Power Input Wide Range 9~36v DC input

Power supply

Standard 100~320VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
DC-DC Power DC 9 ~ 36v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0 掳C to 50 掳C
Storage temperature -20 掳C to 60 掳C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Packing info

Dimensions (WxHxD) 816 x 510 x 105 mm
Weight Net: 18.3kg , Gross:23 kg
