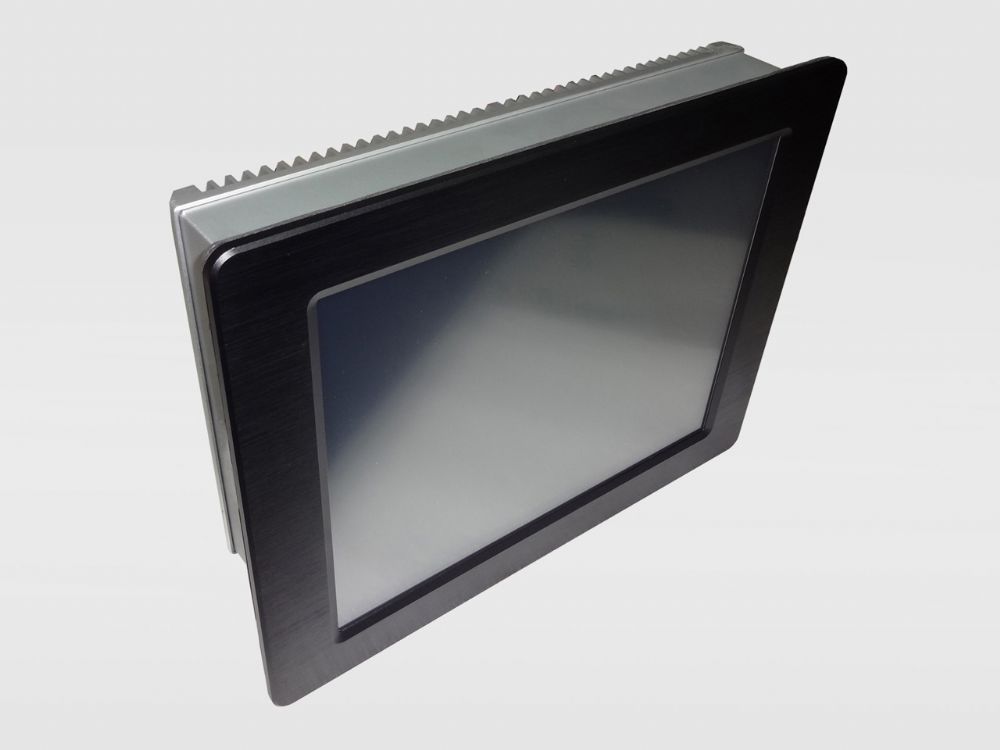

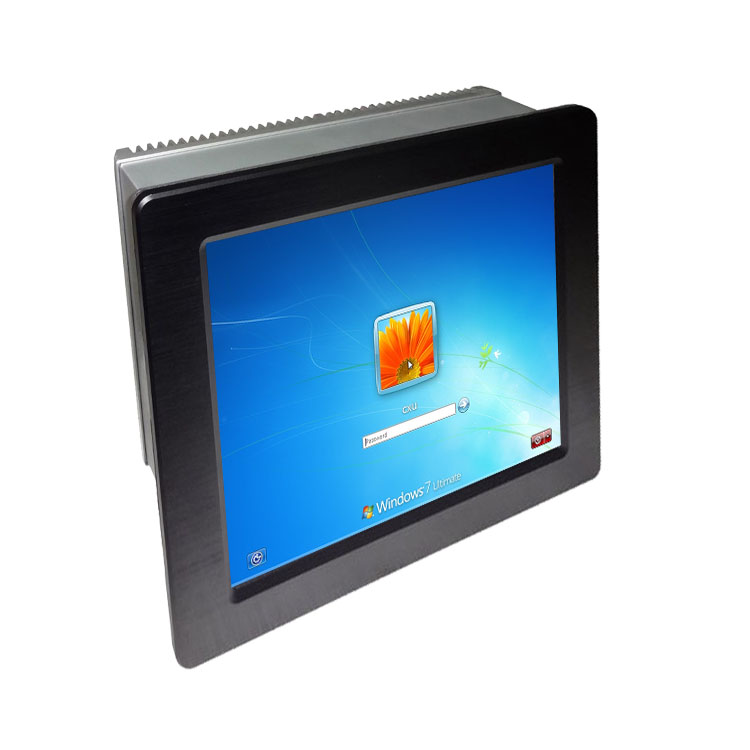

Ruggedized Panel PC with 15 inch LCD and Touch screen

Factory price
Country of Origin: China
OEM/ODM accepted

Datasheet Dimensions Diagram [6] Images

Panel PC
Panel PC

Ruggedized Panel PC
Ruggedized Panel PC

Ruggedized Panel Computer
Ruggedized Panel Computer

Rugged Computer
Rugged Computer

Automation Computer
Automation Computer

15 Inch Ruggedized Panel Pc
15 Inch Ruggedized Panel Pc

Features
  • Ruggedized fanless design panel PC for industrial automation application
  • 15" TFT XGA LED Panel (1024 x 768) with resistive touch screen
  • Embedded Intel? Atom? processor N2800 1.86 GHz
  • System memory up to 4 GB SODIMM DDR3 800/1066/1333 SDRAM
  • 4x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO
  • Offers 2 x Mini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication
  • Wireless LAN with antenna (optional)
  • Robust aluminum with IP65 compliant front bezel design
  • Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm
Specifications
Main System
CPU Onboard Intel Atom N2800 1.86GHz Dual-core CPU with 667 MHz    FSB
Chipset Intel NM10 chipset
System Memory 1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB, preload 2GB Ram
HDD (hard disk ) 2.5" SATA HDD; Preload 320GB HDD or 32G SSD
LAN Two LAN onboard: 2x Realtek ? RL8111x (Gigabit )    10/100/1000Ethernet
Graphic Intel GMA3650 chipset
Audio Realtek ? ALC662, 5.1 channel surround audio

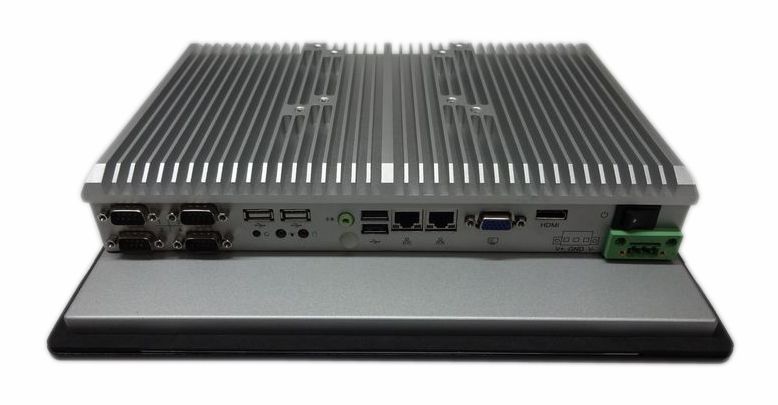

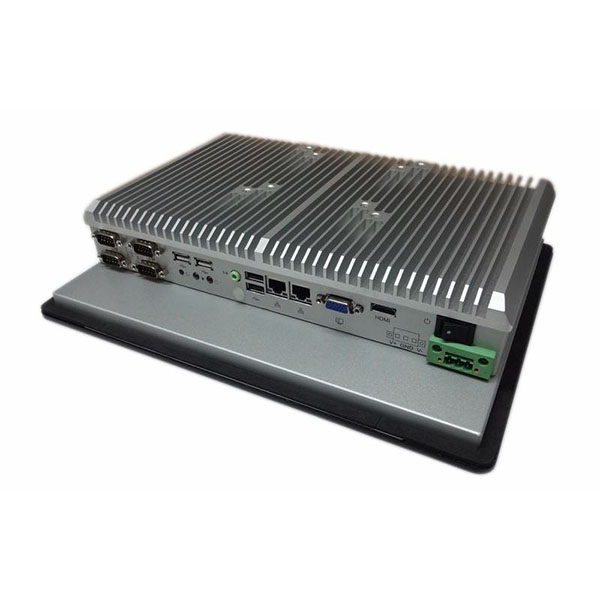

I/O Connector 3 x RS-232
1 x RS-232/RS422/485
1 x HDMI
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
4x USB2.0
1x 3Pin DC power input terminal block

Expansion Mini PCIe slot
General
Construction Aluminum front bezel and Aluminum chassis
OS Support Windows 10/8/7, Windows XP, Linux
Mounting Panel mount or Standard VESA 75/100mm
Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating    32W
LCD display
Display type 15" XGA TFT LCD LED Backlight
Resolution 1024 x 768 pixels
Luminance 450 cd/m2
Viewing angle 160°(H) , 140°(V)
Touchscreen
Type Analog Resistive 5-wire
Controller Interface Internal USB interface controller
Resolution Continuous
Light Transmission 81% or more
Operating Force ��100g
Life Expectancy 35 Million
Environmental
Operate Temperature 0 ~ 45°C (32 ~ 113°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Humidity 10% to 90%@ 40°C , on-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Ingress Protection Front panel: IP65

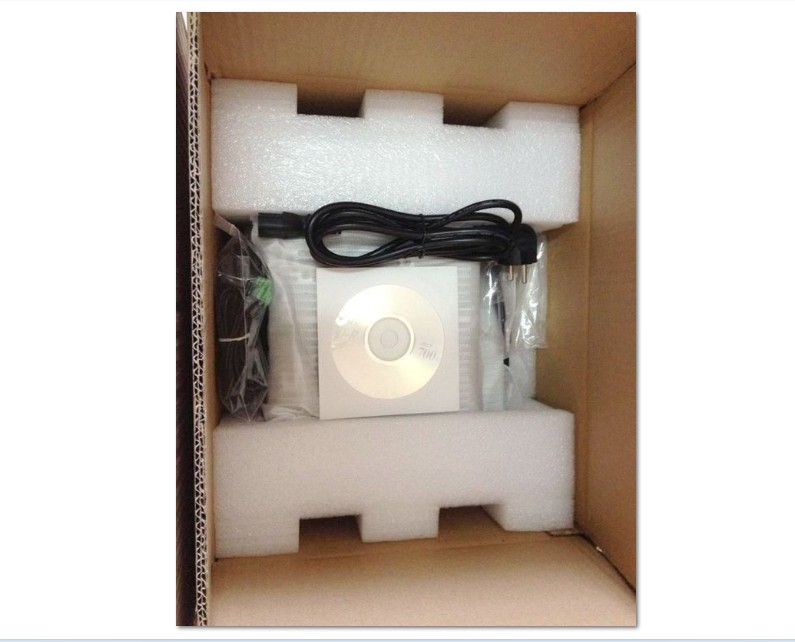

Packing info

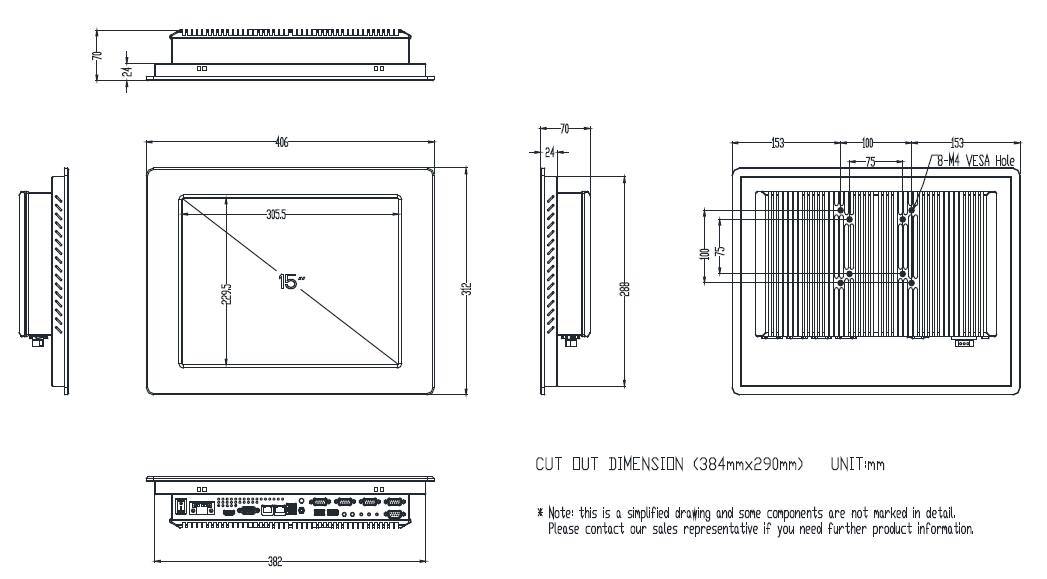

Dimensions(WxHxD) 406 x 312 x 55 mm
NET weight 5.8 KG
Ordering informations
IPC-15FL Fanless Ruggedized Panel PC with 15" XGA TFT LCD, Intel Atom N2800    Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional),4xCOM    (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO
IPC-15FLT Fanless Ruggedized Touch screen Panel PC with 15" XGA TFT LCD, Intel    Atom N2800 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G    optional),4x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO,    Resistive touch screen
