IDM-156W

IDM-156W

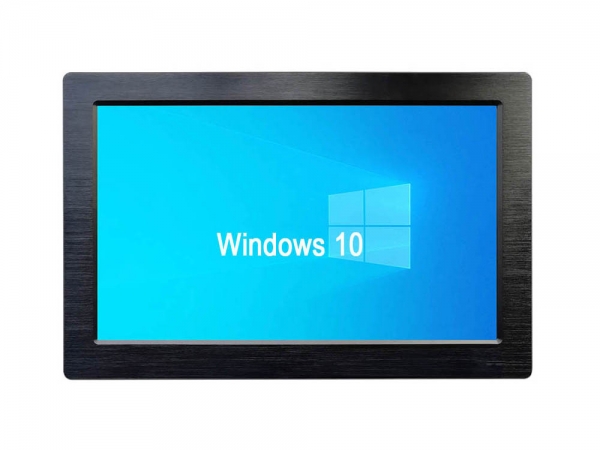

15.6 inch wide industrial monitor with 1920 x 1080 lcd HDMI

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [3] Images

Industrial Monitor With 15.6 Inch 1920 X 1080 Wide Lcd
Industrial Monitor With 15.6 Inch 1920 X 1080 Wide Lcd

Industrial Monitor With RS232 Or USB Touch
Industrial Monitor With RS232 Or USB Touch

15.6 Inch Industrial Wide Lcd Monitor
15.6 Inch Industrial Wide Lcd Monitor

Features
  • 15.6" wide Full HD LCD Panel support 1920 x 1080 pixels, 400 cd/m2 brightness
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Flat, sealed and modularized design
  • Direct VGA, HDMI input interfaces
  • OSD control keys to optimize the display (Optional)
  • Power adapter with AC 100 V ~ 240 V input and DC +12 V  output
  • Optional 9 ~ 36 VDC power input
  • NEMA4 / IP 65 compliant front panel
  • Supports panel, wall, desktop, rack or VESA arm mounting
Specifications
Display
  • Display Type 15.6" Wide Full HD LCD
  • Resolution 1920 x 1080
  • Max.color 16.7M
  • Luminance 400 cd/m2
  • View Angle 160°(H) , 140°(V)
  • Contrast Ratio 700:1
  • Response Time 8 ms
  • Backlight Life 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input 2-Pin Terminal Block
  • HDMI Signal HDMI connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive type touch screen with USB  controller
  • DC Power Input Wide Range 9~36v DC input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 9 ~ 36v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 402x 252 x 45 mm
  • Weight Net: 7.5kg , Gross: 9 kg
Ordering informations
  • IDM-156W 15.6" wide screen Full HD LCD industrial panel monitor with VGA, HDMI  input
  • IDM-156WT 15.6" wide screen Full HD LCD Industrial Panel Monitor with VGA, HDMI, resistiveTouch screen
