Industrial monitors Industrial Monitor with Touchscreen 7 inch Industrial panel LCD touch screen monitor
7 inch touch screen monitor
IDM-07 Send enquiry!

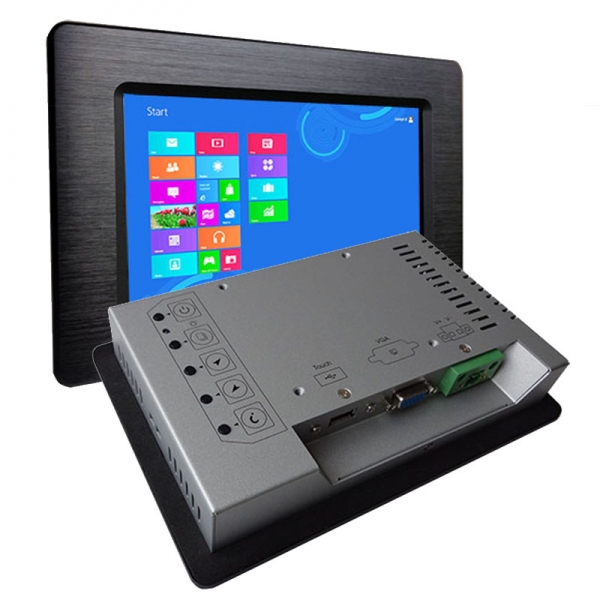

7 inch Industrial panel LCD touch screen monitor



Factory price
Country of Origin: China
OEM/ODM accepted

Datasheet Dimensions Diagram [4] Images
Features
  • 7" WVGA TFT LCD Panel support 800 × 480 pixels,300 cd/m2 brightness
  • 6mm Aluminum front bezel panel and with resistive touch screen
  • Rugged construction and modularized design
  • VGA Input signal
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • DC 8 ~ 30V input power module(Optional)
  • Panel ( Flush ) mount with bracket
  • NEMA4 / IP 65 compliant front panel
  • With standard VESA hole ( 75x75 mm ), support desk top stand /wall mount/ swing arm mounting
Specifications
Display
Size WVGA 7" TFT LCD
Resolution 800*480
Color 262K
Backlight LED
Luminance 300 cd/m2
Contrast Ratio 300:1
View Angle 120°(H) , 110°(V)
LCD MTBF 50,000hrs
System
Construction Aluminum magnesium Alloy
Color Black
I/O DC input/VGA/USB
Installation Install on desk,Hanging on the wall or VESA    cantilever install
Power Supply DC12V input
Touchscreen
Type Resistive Touchscreen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions
Environmental
Operate Temperature 0 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g    acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65
Packing info
Dimensions(WxHxD) 210 x 140 x 40 mm
Packing Dimension 406x344x140mm
NET weight 2.8KG
Ordering informations
IDM-07 Industrial monitor with 7" TFT LCD,    7" touch screen, VGA
