IDM-08

IDM-08

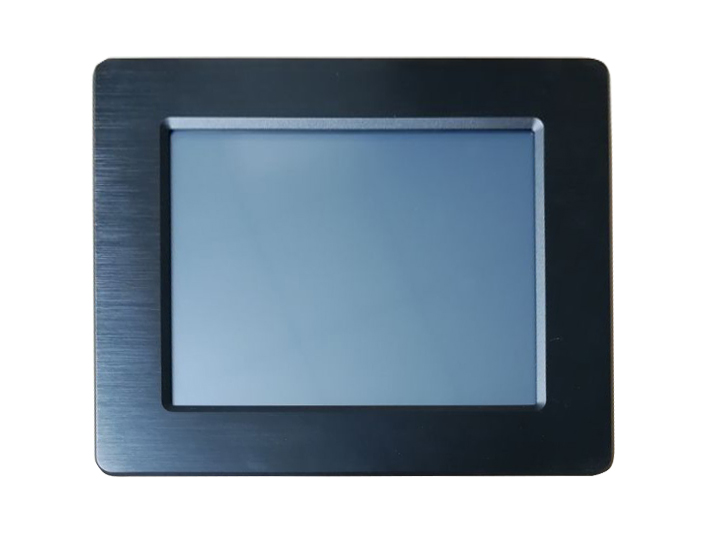

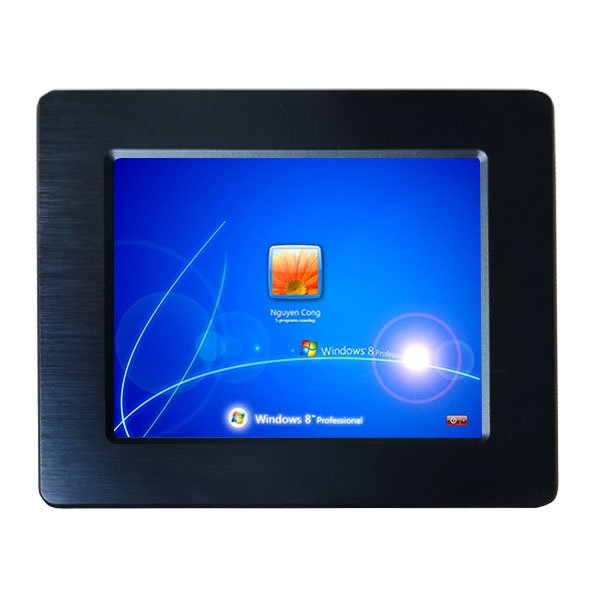

8 inches LCD 1024x768 Industrial panel monitor with touchscreen

Country of Origin: China
Customization OEM accepted

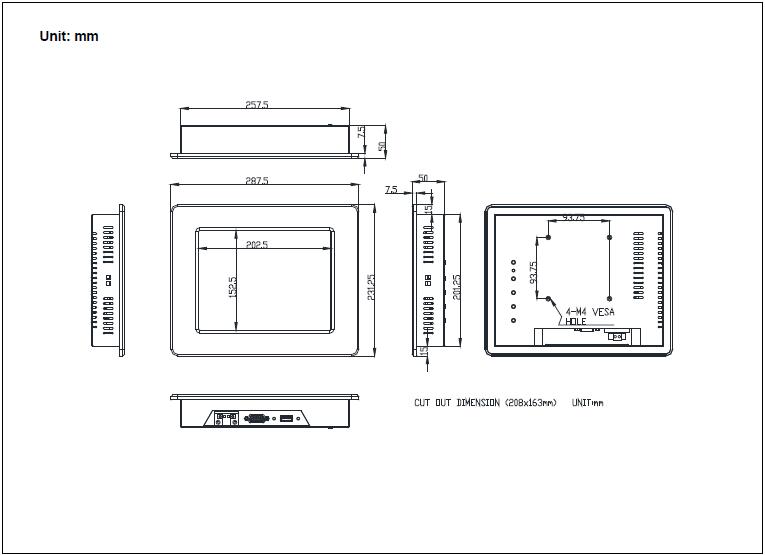

Datasheet (PDF) Dimensions Drawing [6] Images

Industrial Panel Mount Monitor
Industrial Panel Mount Monitor

8 Inch Touch Screen Monitor
8 Inch Touch Screen Monitor

8 Inch LCD Monitor
8 Inch LCD Monitor

8 Inch Touch Panel Monitor
8 Inch Touch Panel Monitor

Industrial Monitor
Industrial Monitor

Touch Panel Monitor
Touch Panel Monitor

Features
  • 8" XGA TFT LCD Panel support 1024x768 pixels,250 cd/m2 brightness
  • 6mm Aluminum front bezel with resitive touch screen(USB connector) /strengthen glass
  • Rugged construction and slim modularized design
  • Input signal VGA and DVI
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • Panel ( Flush ) mount with bracket
  • NEMA4 / IP 65 compliant front panel
  • With standard VESA holes ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
  • Application for Automation control, HMI, M2M, heavy Manufacturing Equipment, CNC, machine tool etc.
Specifications
Display
  • Display Type 8" XGA TFT LCD
  • Resolution 1024x768
  • Max.color 262K
  • Luminance 250 cd/m2
  • View Angle 110°(H) , 120°(V)
  • Pixel Pitch 0.15825脳0.15825mm
  • Contrast Ratio 700 : 1
  • Response Time 25  ms
  • LCD MTBF 50,000hrs

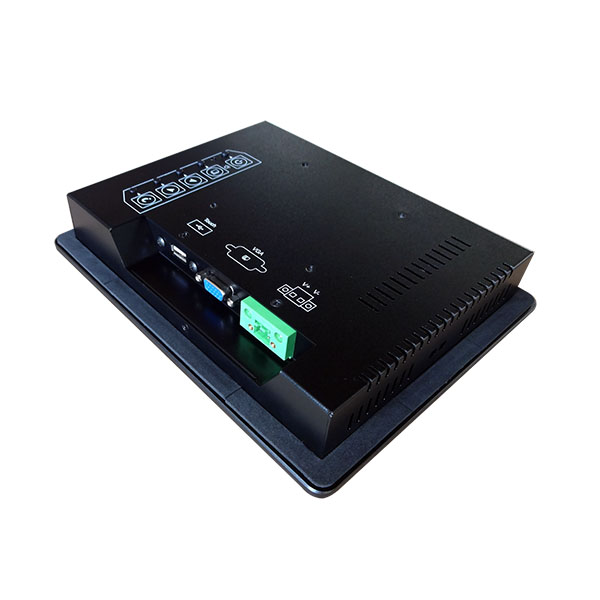

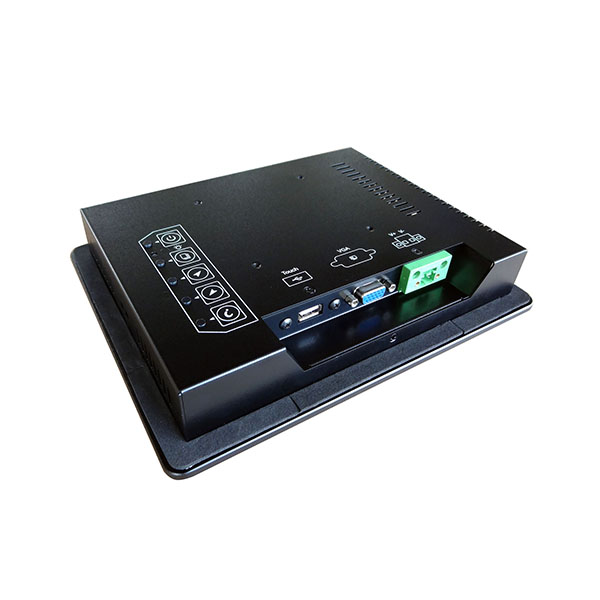

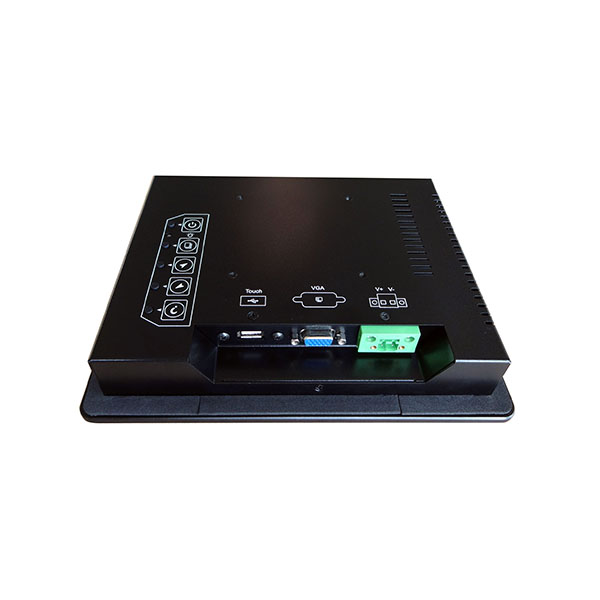

Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input DC Jack (2.1mm)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive Type with USB and RS232 controller
  • DC Power Input Wide Range 8~30v DC input
  • AV input No
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 287.5 x 231 x 50 mm
  • Weight Net: 3.kg , Gross:4.5 kg
Ordering informations
  • IDM-08 8" Industrial LCD Panel Monitor with VGA input
  • IDM-08T 8" Industrial LCD Panel Monitor with VGA input, with touch screen and USB controller
