IDM-08V

IDM-08V

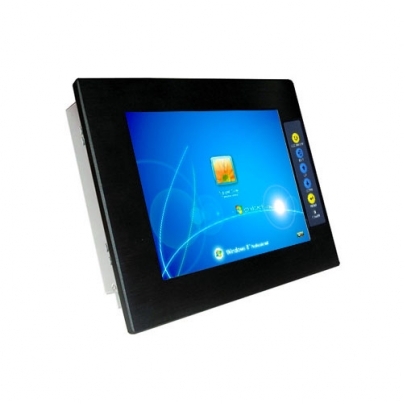

8 inch touch screen lcd Industrial monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [5] Images

8 Inch Industrial Monitor
8 Inch Industrial Monitor

8 Inch Touch Screen Display
8 Inch Touch Screen Display

8 Inch Touch Screen Monitor
8 Inch Touch Screen Monitor

8 Inch Touch Monitor
8 Inch Touch Monitor

8 Inch Industrial Display
8 Inch Industrial Display

Features
  • 8" TFT LCD Panel support 1024x768 pixels
  • Material: Aluminum magnesium Alloy
  • Rugged construction design
  • Input signal : VGA/AV
  • 300 cd/m2 brightness
  • Resistive type of touchscreen
  • NEMA4/IP65 compliant front panel
  • Panel mounting with clip
  • Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting
Specifications
Display
  • Size 8"TFT LCD
  • Resolution 1024x768
  • Color 262K
  • Backlight LED
  • Luminance 300 cd/m2
  • Contrast Ratio 300:1
  • View Angle 120°(H) , 110°(V)
  • LCD MTBF 50,000hrs
System
  • Construction Aluminum magnesium Alloy
  • Color Black
  • I/O DC input/VGA/AV/USB(COM optional)
  • Installation Install on desk,Hanging on the wall or VESA cantilever install
  • Power Supply DC12V input
Touchscreen
  • Type Resistive Touchscreen
  • Resolution 4096*4096
  • Controller Interface Internal USB ( RS-232 interface option)
  • Light Transmission 81% or more
  • Operating Force 250g
  • Life Expectancy 10 Millions
Environmental
  • Operate Temperature 0 °C to 60 °C
  • Storage Humidity 5% to 95%@ 40°C , on-condensing
  • Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
  • Shock 10G peak acceleration (11 msec. duration)
  • IP Leve (Front Panel) IP65
  • Safety FCC/VDE(Level A)
  • MBTF >50,000hrs
Packing info
  • Dimensions(WxHxD) 236x 185x 45mm
  • Packing Dimension 406x344x140mm
  • NET weight 2.5KG
Ordering informations
  • IDM-08V Industrial monitor with 8" TFT LCD, 8" touch screen,    VGA
