S62321

S62321

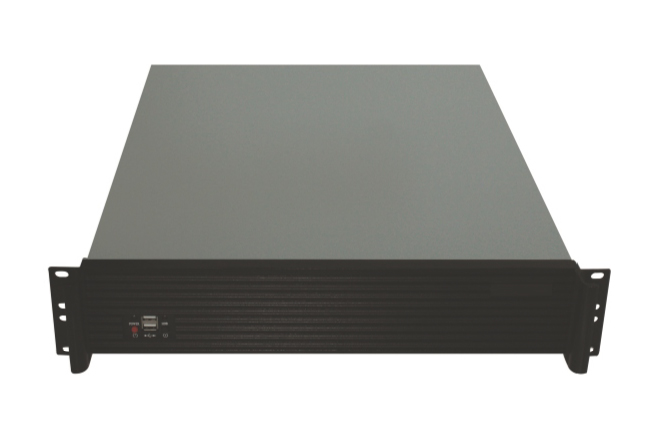

2U Server chassis with server motherboard supports Two Xeon E5-2600 CPU

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [1] Images

2U Server Chassis With Motherboard Based On Intel C612 Chipset
2U Server Chassis With Motherboard Based On Intel C612 Chipset

2U Server chassis with server motherboard supports Two Xeon E5-2600V3/V4 CPU,Max 512G DDR4 RAM, Max 8 Sata3.0 HDD, 550W redundant power supply

Features
  • Supports Two 22nm Intel E5-2600 V3/V4 processors
  • Intel C612 chipset
  • Eight 288-pin 2133/2400MHz DDR4 slots, up to 512 GB
  • Two Rj45 GbE ports, Intel Gbe controllers
  • 10 SATA3.0 interface, support RAID 0, 1, 5, 10
  • Supports IPMI2.0, USB3.0/&SB2.0, COM
Specifications
Motherboard
  • CPU Supports Two Xeon E5-2600 V3/V4 CPU, QPI up to 8.0GT/s
  • Chipset Intel C612 Chipset
  • System memory Eight DDR4 288-pin slots, up to 512GB
Storage
  • Interface Ten SATA3.0 connectors, support RAID 0, 1, 5, 10
  • Hard Drive Eight 3.5" HDD trays
  • RAID Optional LSI Mega RAID 9260-8I RAID
Ethernet
  • LAN Port Two 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Two Intel PCIe GbE controllers
Display
  • Graphic ASPEED AST2400  graphics controller
  • Vedio port One external VGA ports
System I/O
  • USB Two USB3.0 and Two USB2.0, Four internal USB2.0 interface
  • COM One DB-9 COM port, One internal RS-232 Pin interface
  • Indicator One Power LED, one HDD LED
  • Watchdog Timer Software programable supports1-255 sec. system reset
  • Expansion One PCIex16 slot and five PCIex8 slots
Power supply
  • Power consumption Built-in 550W server redundant power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or AC power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 45°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Aluminum font panel(OEM/Neutral)
  • Construction 2u chassis, Heavy duty metal
  • Dimensions (D x W x H) 550x440x88mm
  • Weight 11.3 kg
Ordering informations
  • S62321 2u rackmount server, Intel C612 Chipset, Two Xeon E5-2600V3/V4 CPU,Max 512G DDR4 RAM, Max 8 Sata3.0 HDD, 550W redundant power supply
