Industrial PC Single board computer Mini-ITX Motherboard with Intel Atom D525 CPU
Mini-ITX Motherboard
ITX-D525 Send enquiry!

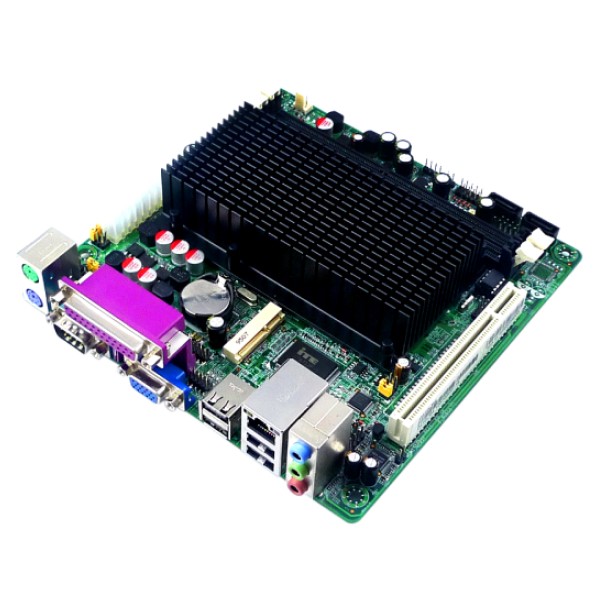

Mini-ITX Motherboard with Intel Atom D525 CPU



Factory price
Country of Origin: China
OEM/ODM accepted

Datasheet [3] Images

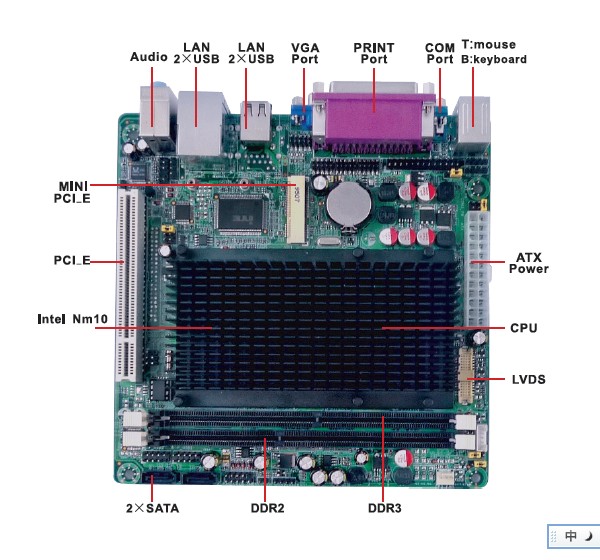

Mini ITX board, Mini ITX Mainboard,Mini itx sbc, Mini-ITX Motherboard with Intel Atom D525 CPUCPUIntel Atom D425/D525 CPUFSBFSB 667/800 MHzChipsetIntel D425/D525+ Nm10tedOSWindows 2000 SP4,Windows XP SP2,Windows Vista and Linux Ubuntu 7.1 (with Device Driver)SATA2* SATA IIIDE1* MINI-IDEMEMORYSupports 1*DDRII 667/800 Double Channel Mode
1*DDRIII 800/1066/1333 Double Channel Mode
(For more information on compatible components, please check with manufacturer)LAN1/2*RT8111DL LAN CARD ON BOARD (8103EL Optional)AudioSupports six channel sound input (example Realtek ALC662)

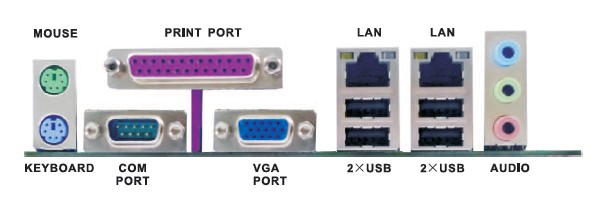

Supports multiple stereo input mixerLVDSOptionalInfrared1 Infrared header (optical)MINI PCIESupport 1 MINI PCIE Port HDMISUPPORT 1 HDMI PortLPTSUPPORT PIN CONNECTOR Back panel1 PS/2 mouse port 1 PS/2 keyboard port
1 COM1 port 1 VGA Port 1Parallel port supporting SPP/EPP/ECP mode
4 USB 2.0 Ports 1/2 LAN jack 3 flexible audio jacksForm FactorMINI ITX 170 * 170 mm (L * W)
