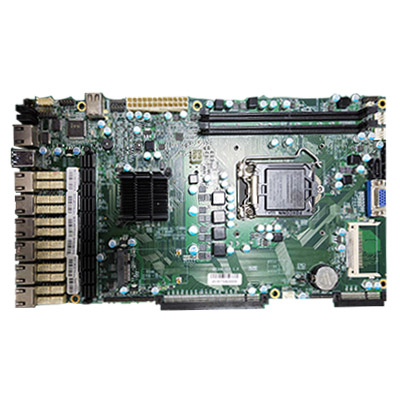

Network motherboard based on intel C236 chipset Gen6 Gen7 Intel skylake kaby lake processor

Mainboard-236


Place of Origin: China
OEM/ODM accepted

Datasheet Download [1] Images

Network motherboard based on intel C236 chipset,network application appliance supports Intel skylake kaby lake Gen6 Gen7 Intel Xeon or i3/i5/i7 Dual/Quad core processor.

Specifications

CPU: Intel LGA1151 Socket H4 supports 14nm Intel 庐 Gen6 and Gen7

Xeon 庐 / Core 鈩?i3/i5/i7 Dual/Quad core processor

 System Chipset: Intel 庐 C236/H110

 BIOS: SPI flash BIOS

 System Memory:

Two 288-pin 2133/1866MHZ Dual-Channel DDR4 SDRAM

Un-buffered DIMM supported (system max. 32GB)

 Ethernet:

Six Intel 庐 I210AT PCIe GbE Ethernet controller

Support two pairs BYPASS ethernet function, Optional three pairs

 Graphic Engine:

VGA by DP to VGA converter, with DB-15 & Pin-header connector

Built-in Display-port Graphic connector

 Storage:

SATA: 3 x SATA 6Gb/s,

mSATA: One mSATA socket, support mSATA SSD

CF: CF type II socket by SATA to PATA bridge

Super I/O: ITE IO IC

 I/O Interface:

2 x RS-232

6 x USB 2.0 (2 by Front IO, Built-in 2 USB2.0, 2 by pin-header)

2 x USB3.0 by Pin-header

1 x PS/2 KB/MS pin-header

 Expansion:

1 * PCIex16 Slot

1 * PCIex4 Slot

 Digital I/O: 8-bit Digital I/O ( 4-bit input / 4-bit output)

 TPM: 2x7pin pin header

 Watchdog Timer:

Software programmable supports 1~255sec system reset.

3

 FAN connector:

1 * 4 pin CPU fan connector, with smart FAN

4 * 3 pin System fan connector

 Power supply:

2x12pin ATX power supply

2x4pin 12V CPU power

 Power Consumption:

3.3V@3.08A, 5V@7.15A, 12V@4.10A, 5VSb@0.13A

(Intel 庐 i5-6500 3.2GHz CPU with 2133MHz DDR4 8GB x 2 memory)

 Operating Temperature: -10 ~ 60 掳C

 Operating Humidity: 5%~95% non-condensing

 Dimensions: 320x175mm

Weight: NW:680g
