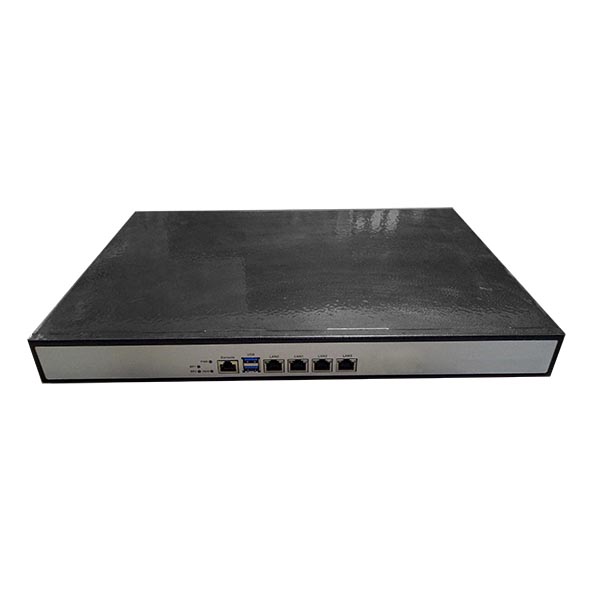

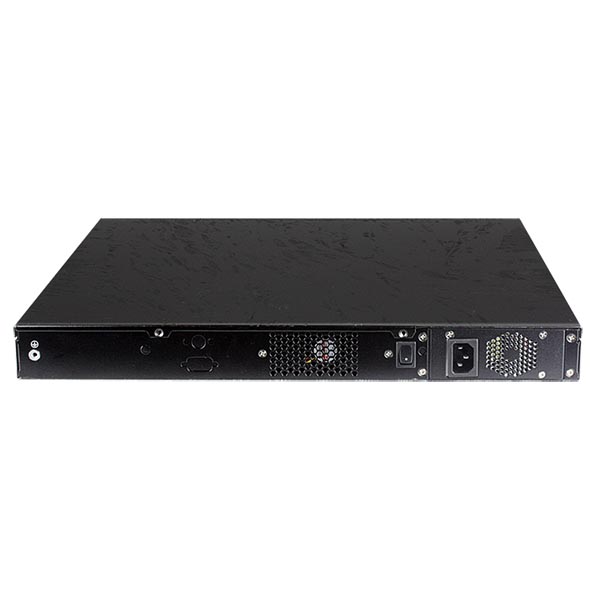

1u Network Security Appliance with 4 RJ-45 GbE network ports
Factory price
Country of Origin: China
OEM/ODM accepted
Datasheet [2] Images
Rackmount 1U network security appliance,onboard J1900 CPU, 4 RJ-45 GbE network ports, one SATA and one mSATA interface, single or redundant power supply
System memory One 204-pin DDR3-L DIMM slots, up to 8GB
Hard Drive One 3.5/2.5" HDD trays
CF slot One CFII slot
Ethernet Controller Four Intel PCIe GbE controllers
BYPASS Optional 2 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 430x295x44.5mm
Weight 9.3 kg
F19411-B2P2 1u rackmount chassis, J1900 CPU, 4 x GbE RJ45, 70W redundant PSU
Features
- Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
- One 204-pin DDR3-L DIMM slots, up to 8 GB
- Four Intel PCIe GbE controllers, Optional two channels bypass
- One SATA interface and one mSATA interface
- Two USB3.0, One CF TypeII
- One RJ45 for RS232 communication
- Optional one NIC module adding 4 GbE network ports
Specifications
Motherboard
CPU Onboard Intel Bay Trial J1900 Quad-core CPUSystem memory One 204-pin DDR3-L DIMM slots, up to 8GB
Storage
Interface One SATA and one mSATA connectorsHard Drive One 3.5/2.5" HDD trays
CF slot One CFII slot
Ethernet
LAN Port Four 10/100/1000Mbps RJ-45 portsEthernet Controller Four Intel PCIe GbE controllers
BYPASS Optional 2 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
USB Two USB3.0COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)
Power supply
Power consumption Built-in 60W power supplyPower input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental
Mounting Supports rack-mounting or desktop-mountingOperate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Mechanical
Chassis Color Black or OEMFront panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 430x295x44.5mm
Weight 9.3 kg
Ordering informations
F19411-B2 1u rackmount chassis, J1900 CPU, 4 x GbE RJ45, 60W PSUF19411-B2P2 1u rackmount chassis, J1900 CPU, 4 x GbE RJ45, 70W redundant PSU
