IPC-18PF

IPC-18PF

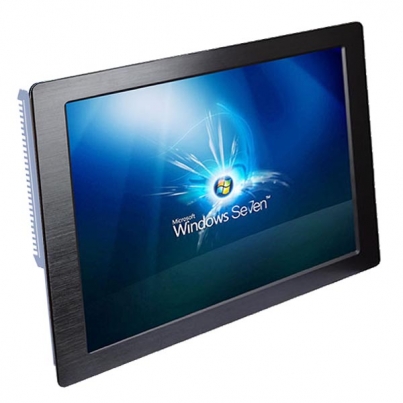

Fanless design 18.5 inch WXGA LED panel PC with touch screen

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

18 Inch Panel Pc
18 Inch Panel Pc

18 Inch Touch Screen Industrial PC
18 Inch Touch Screen Industrial PC

18 Inch Industrial Panel PC
18 Inch Industrial Panel PC

18 inch panel pc [Photo.4]
18 inch panel pc [Photo.4]

Features
  • Low power consumption and fanless design
  • 18.5" WXGA LED Panel (1366 x 768) with resistive touch screen
  • Embedded Intel庐 Celeron庐 Processor J1900 (2M Cache, up to 2.42 GHz)
  • 1x SODIMM DDR3 1600/1333 SDRAM, Preload 2G RAM (Max 8G)
  • 6x COM (1xRS422/485), 1x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x  AUDIO and MIC
  • Offers 1 x Mini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication
  • Wireless LAN with antenna (optional)
  • DC12V input (option Wide range DC 9-36V input)
  • 6mm Robust aluminum with IP65 compliant front bezel design
  • Panel ( Flush ) mount with clip or Standard VESA 100x100mm support stand, wall mount and swing arm
Specifications
Main System
  • CPU Onboard Intel  Intel庐 Celeron庐 Processor J1900 processor
  • Chipset Intel Bay trail SOC
  • System Memory Preload 2GB Ram(Max 8G)
  • HDD (hard disk ) 2.5" SATA HDD/SSD; Preload 500GB HDD
  • LAN 2x Realtek 庐 RL8111x (Gigabit) 10/100/1000Ethernet
  • Graphic Intel  HD chipset
  • Audio Realtek 庐 ALC662, 5.1 channel surround Audio

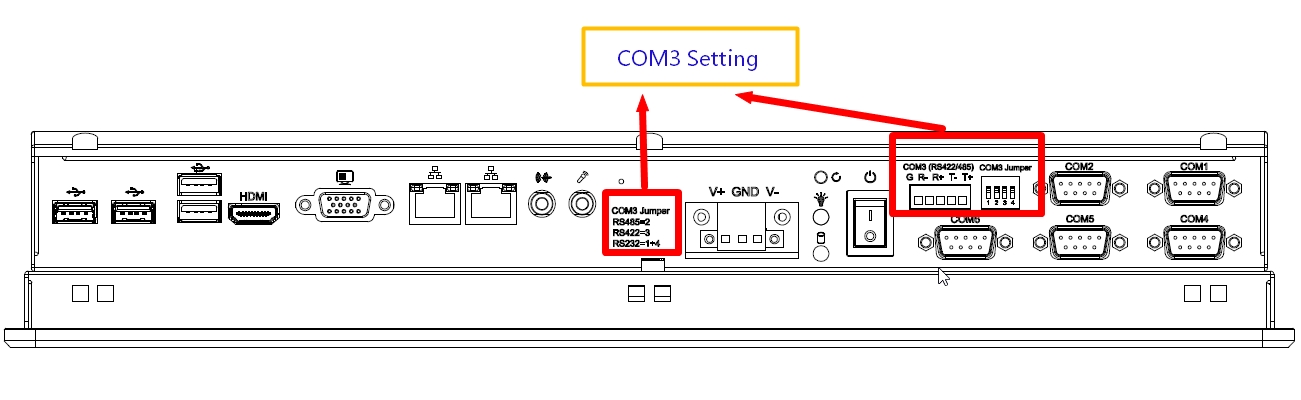

  • I/O Connector 5 x RS-232
    1 x RS422/485
    1 x HDMI
    1x DB-15 Connector
    1x Audio (Mic-in / Line-out)
    2x 10/100/1000MLAN port ( RJ-45 )
    3 x USB2.0, 1 x USB3.0
    1x 3Pin DC power input terminal block
  • Expansion 1x Mini PCIe slot
General
  • Construction Aluminum front bezel and Aluminum chassis
  • OS Support Windows 10/8/7, Windows XP, Linux
  • Mounting Panel mount or Standard VESA 100mm
  • Power supply DC Input Voltage : 12v, with External AC adapter; Output Rating 28W
         Optional Wide range DC 9-36V input
LCD display
  • Display type 18.5" WXGA TFT LCD LED Backlight
  • Resolution 1366 x 768pixels
  • Contrast Ratio 700:1
  • Luminance 250 cd/m2
  • Viewing angle 170°(H) , 140°(V)
  • Response  Time 12 ms
  • LCD MBTF 50, 000hrs
Touchscreen
  • Type Resistive touch screen
  • Controller Interface Internal USB interface controller
  • Resolution Continuous
  • Light Transmission 81% or more
  • Operating Force ≤100g
  • Life Expectancy 35 Million
Environmental
  • Operate Temperature 0 ~ 50°C (32 ~ 125°F)
  • Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
  • Humidity 10% to 90%@ 40°C , on-condensing
  • Vibration 17 to 500HZ 1G PTP
  • Operating Shock 1G /peak ( 11m sec)
  • Ingress Protection Front panel IP65/NEMA4
Packing info
  • Dimensions(WxHxD) 480  x 300 x 68mm
  • NET weight 10.5 KG
Ordering informations
  • IPC-18PF 18.5" WXGA Fanless Industrial Panel PC support  Intel庐 Celeron J1900 Processor, with 2G RAM, 2.5鈥?500G HDD, with Resistive Touch Screen, DC12V  input External AC adapter
  • IPC-18PFL

    IPC-18PF + Mini-PCIE  wireless Lan card with antenna
