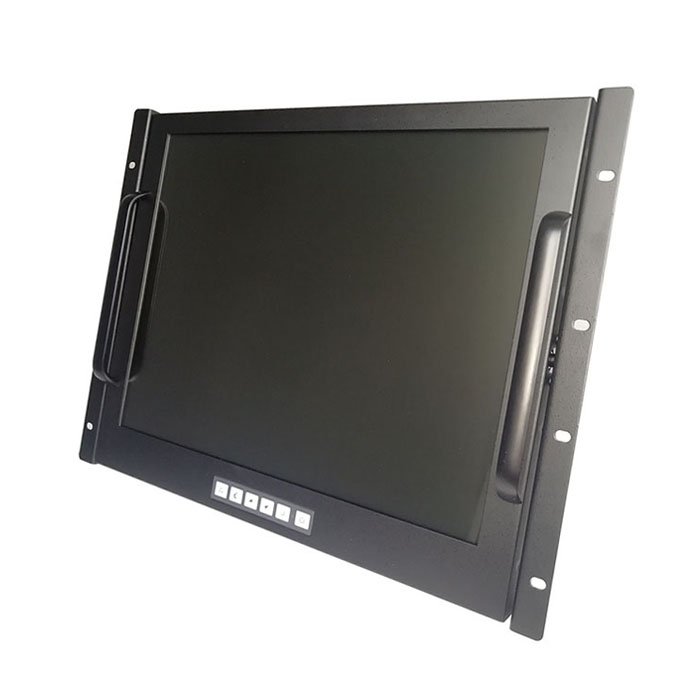

RCIM-17-M24

Rackmount LCD monitor with Resistive Touch Screen, 17" LCD Panel, 1280 x 1024, SXGA, LED Backlight, VGA , DVI, 4:3


  • Touch Screen: Resistive Touch Screen
  • Size: 17" LCD Panel
  • Resolution: 1280 x 1024, SXGA
  • Backlight Type: LED Backlight
  • Signal Interface: VGA , DVI
  • Video Format: 4:3

17 inch rackmount lcd display. Optioanl signal input VGA, DVI, HDMI, BNC, AV, S-vedio, touch screen optional

Features

  • 8U height Rack mount display monitor for compact 19" cabinnet

  • 17" SXGA TFT LCD Panel support 1280x1024 pixels

  • Input signal : VGA + DVI/HDMI + BNC,AV,S-vedio, Audio

  • 90 掳tilt adjustment while mounted in rack: +45 掳~ -45 掳

  • 300 cd/m2 brightness

  • OSD control keys to optimize the display

  • AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)

  • Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting

Specifications

Display

Display Type17" SXGA TFT LCD
Resolution1280x1024
Max.color16.7M
Luminance300 cd/m2
View Angle178 掳(H) , 178 掳(V)
Pixel Pitch0.264 x 0.264mm
Contrast Ratio1000:1
Response Time5 ms
LCD MTBF50,000hrs

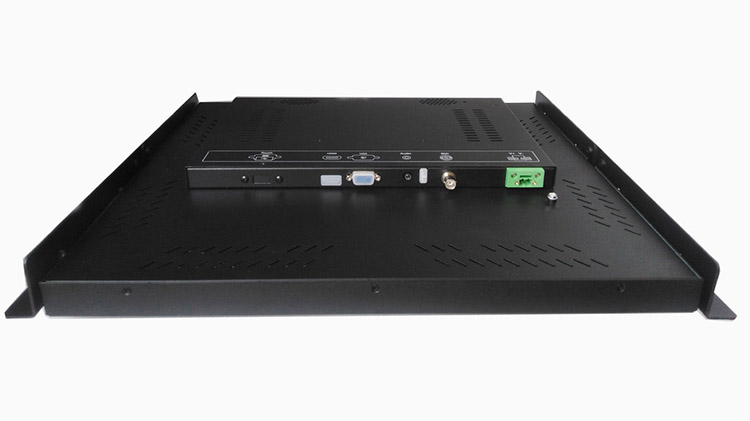

Input Signals

RGB SignalD-SUB 15P Connector (female)
DC inputAviation 2pin Plug
DVI-D SignalDVI-D input 24pin connector (female)
Touch screen RS232 (option)D-SUB 9p connector (female)
Touch screen USB (option)USB-A type connector (female)

Available Options

Touch screenResistive Type with USB and RS232 controller
DC Power InputWide Range 8~30v DC input

Power supply

Standard100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
DC-DC PowerDC 8 ~ 30v input power module(optional)

Environmental

ConstructionHeavy duty steel and aluminum front panel
Operate temperature0 掳C to 50 掳C
Storage temperature-20 掳C to 60 掳C
Storage humidity10% to 90% non-condensing
Anti-Vibration17HZ-500 HZ 1G PTP
Anti-Shock1G / peak( 11m sec)
Certification and ApprovalsCE/FCC/ROHS

Packing info

Dimensions (WxHxD)482.6 x 354.8 x 48 mm
WeightNet: 7.0kg , Gross:10.3kg



Tags: Rackmount LCD monitor, Resistive Touch Screen, 17" LCD Panel, 1280 x 1024, SXGA
