RCIM-15-M23

Rackmount LCD monitor with Resistive Touch Screen, 15" LCD Panel, 1024 x 768, XGA, LED Backlight, VGA , DVI, 4:3


  • Touch Screen: Resistive Touch Screen
  • Size: 15" LCD Panel
  • Resolution: 1024 x 768, XGA
  • Backlight Type: LED Backlight
  • Signal Interface: VGA , DVI
  • Video Format: 4:3

RCIM-15 is a rack mount lcd monitor. it support mutiple signal input option VGA, DVI, HDMI, BNC, AV, S-vedio.  Touch screen or strengthen glass is  optional. The 15 inch LCD panel and touch screen are installed in a rugged Rack Mount chassis designed for 19鈥?Equipment Racks suitable for industrial process control room environments.

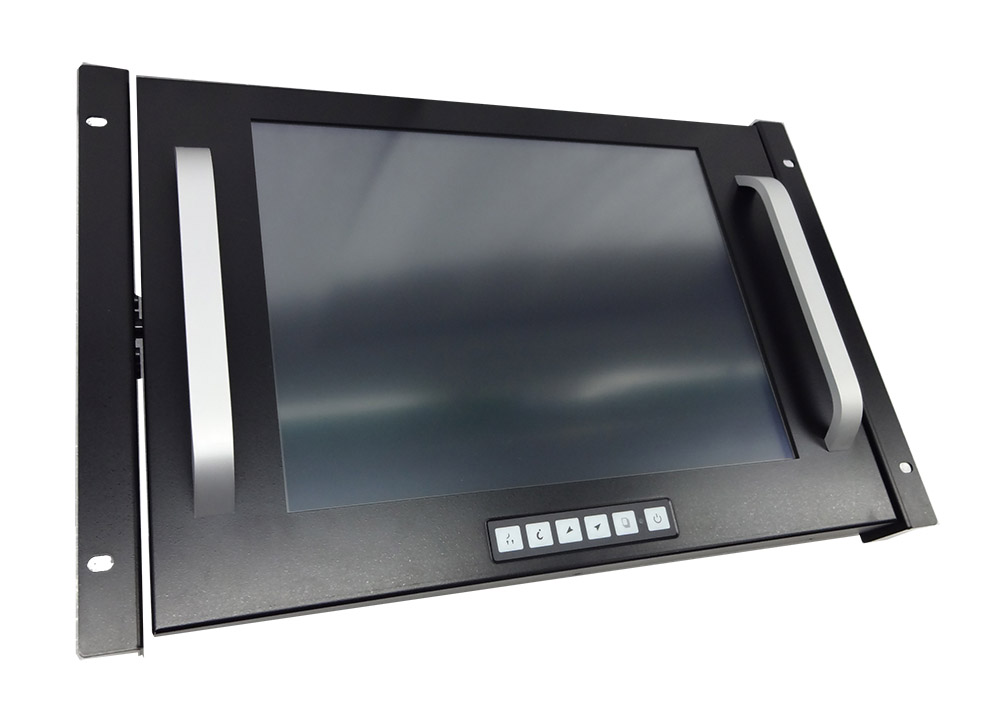

15" rack mount lcd monitor with touch screen

  • 19" Compact 15" rack mount display monitor with 7U height

  • 15" XGA TFT LCD Panel support 1024x768 pixels

  • 90 掳tilt adjustment while mounted in rack: +45 掳~ -45 掳

  • Input signal : VGA + DVI + AUDIO

  • 250 cd/m2 brightness

  • OSD control keys to optimize the display

  • AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)

  • Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting

Display

Display Type 15" SXGA TFT LCD
Resolution 1024 x 768
Max.color 16.2M
Luminance 250 cd/m2
View Angle 178 掳(H) , 160 掳(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 700:1
Response Time 8 ms
LCD MTBF 50,000hrs

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input Aviation 2pin Plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0 掳C to 50 掳C
Storage temperature -20 掳C to 60 掳C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions (WxHxD) 482.6 x 310.3 x 48 mm
Weight Net: 6.0kg , Gross:9.5kg

RCIM-15 15" LCD Industrial Rack Mount Monitor with VGA + DVI/HDMI +Audio input
RCIM-15TC 15" LCD Industrial Rack Mount Monitor with VGA + DVI/HDMI +Audio input, with touch screen and RS232 controller
RCIM-15TU 15" LCD Industrial Rack Mount Monitor with VGA + DVI/HDMI +Audio input, with touch screen and USB controller

Tags: Rackmount LCD monitor, Resistive Touch Screen, 15" LCD Panel, 1024 x 768, XGA
