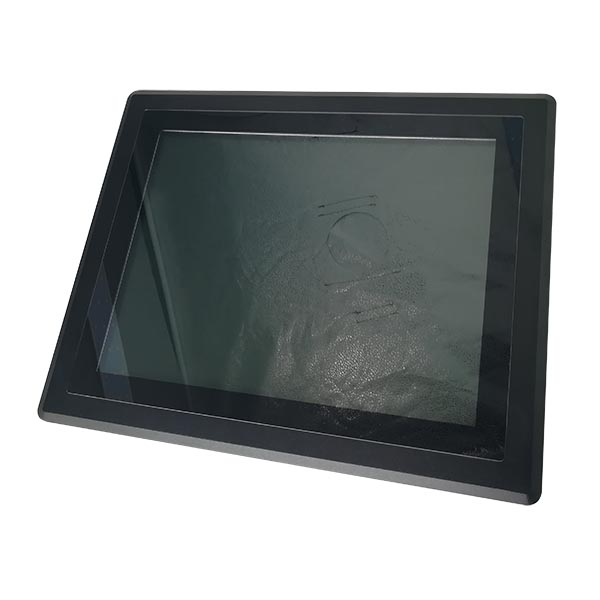

IDM-12VHT-M12

Capacitive touch screen monitor with Capacitive Touch Screen, 12.1" LCD Panel, 1024 x 768, XGA, LED Backlight, VGA , HDMI, 4:3


  • Touch Screen: Capacitive Touch Screen
  • Size: 12.1" LCD Panel
  • Resolution: 1024 x 768, XGA
  • Backlight Type: LED Backlight
  • Signal Interface: VGA , HDMI
  • Video Format: 4:3

Specifications

Display

Display Type 12.1" SXGA TFT LCD
Resolution 1024 x 768
Max.color 16.7M
Luminance 450 cd/m2
View Angle 120掳(H) , 100掳(V)
Pixel Pitch 0.289x0.289 mm
Contrast Ratio 500:1
Response Time 8 ms
LCD MTBF 50,000hrs

System

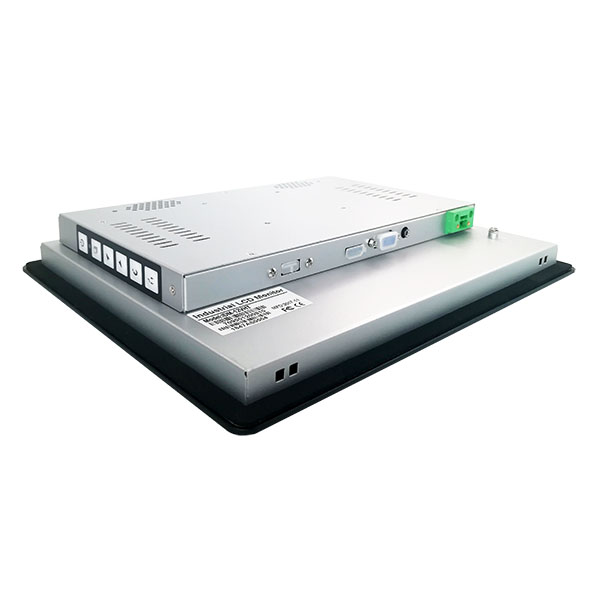

Display Construction 6mm Rugged Aluminum panel with multi-touch display, OSD on the back side
Touch screen Capacitive touch screen(Multi touch)
Speakers 2 x stereo speakers
Input Signals VGA+HDMI+Audio
Power Supply Input 100~240VAC,50/60Hz external ac adapter (Output DC12V@ 5A / 60W)
DC-DC input(optional) 8 ~ 30V DC input power module
Dimensions (WxHxD) 320 x 258.5 x 45 mm
Weight Net: 4.8kg , Gross:6.5kg

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0 掳C to 50 掳C
Storage temperature -20 掳C to 60 掳C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Tags: Capacitive touch screen monitor, Capacitive Touch Screen, 12.1" LCD Panel, 1024 x 768, XGA
