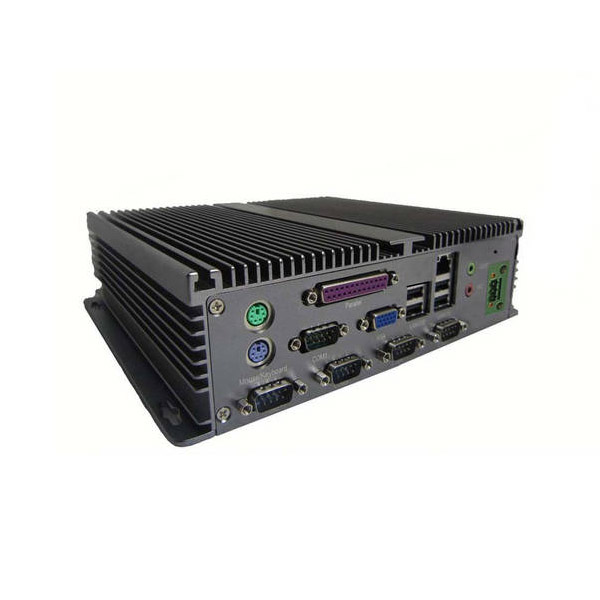

6 x USB, 5x COM Ports, 1 x LAN port ( RJ45 ), 1 x VGA , 1 x LPT, 2 x PS2 and 1x Line out / MIC in
1 x SIM Card Slot and 1x Mini PCI-E socket
1x SO-DIMM DDR3 800MHz Slot, up to 4 GB
1x 2.5-inch anti-vibration SATA HDD bay

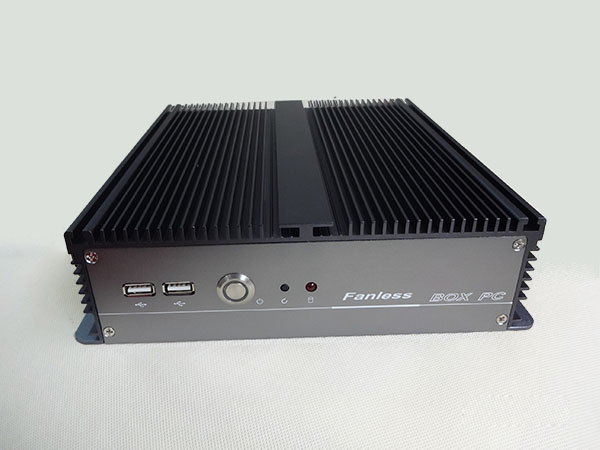

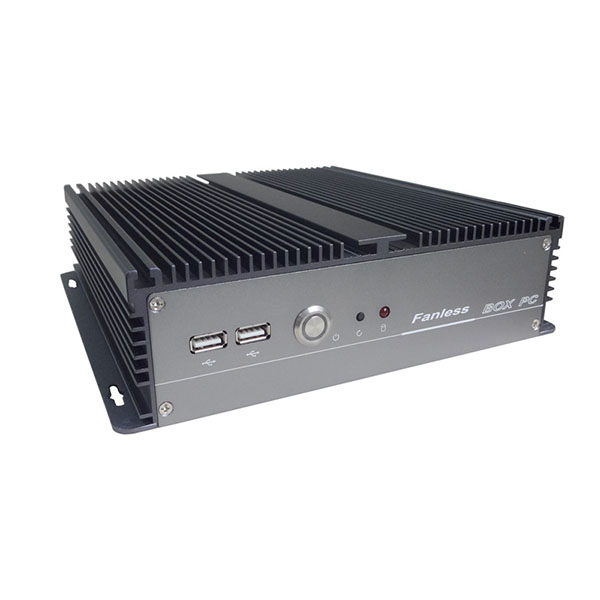

Front panel with power switch and Reset Switch Button, HDD LED, 2x USB
Wireless LAN with antenna (optional)
DC 12V input ( Wide range DC 8-30V input optional )
Specifications
Main System
CPUBuilt-in Intel? Atom? dual-core processor D525 1.86 GHz ChipsetIntel NM10 chipset System Memory1x SO-DIMM DDR3 800MHz Slot, up to 4 GB, preload 2GB Ram HDD (hard disk )2.5" SATA HDD; Preload 320GB HDD LAN1x 10/100Mbps LAN ports GraphicIntel GMA3650 chipset AudioRealtek ACL662 6-channel Audio codec integrated I/O Connector1 x LPT 6 x USB 5x COM Port 1 x 10/100 LAN port ( RJ45 ) 1 x VGA 2 x PS2 (Keyboard/ mouse) 1 x Reset Switch 1 x 3pin Terminal 1x Line out / MIC in Expansion1 x PCI , 2 x Mini PCI-E ( internal )
General
ConstructionAluminum front bezel and Aluminum chassis Front panelPower switch, reset switch button, HDD LED, 2x USB OS SupportWindows 7, Windows XP, Linux Power supplyInput Voltage : 100- 240V, 50/60HZ, DC 12V/5A ,60Watts external AC Adapter
Dimensions(WxHxD)234 x 200 x 64 mm (W x D x H) Net weight3.5 KG Gross weight5.5 KG
Ordering informations
MPC-5600Mini-ITX Fanless Embedded Box PC with Intel Atom D525 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional), 6x USB, 5x COM Ports, 1 x LAN port ( RJ45 ), 1 x VGA , 1 x LPT, 2 x PS2 and 1x Line out / MIC in MPC-5600-WIFIMini-ITX Fanless Embedded Box PC with wifi module, Intel Atom D525 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional), 6x USB, 5x COM Ports, 1 x LAN port ( RJ45 ), 1 x VGA , 1 x LPT, 2 x PS2 and 1x Line out / MIC in, Wireless LAN with antenna
