- Wide temperature Fanless Industrial Embedded computer with 4 GbE Rj45 2 RS232 5 RS485
F1930A

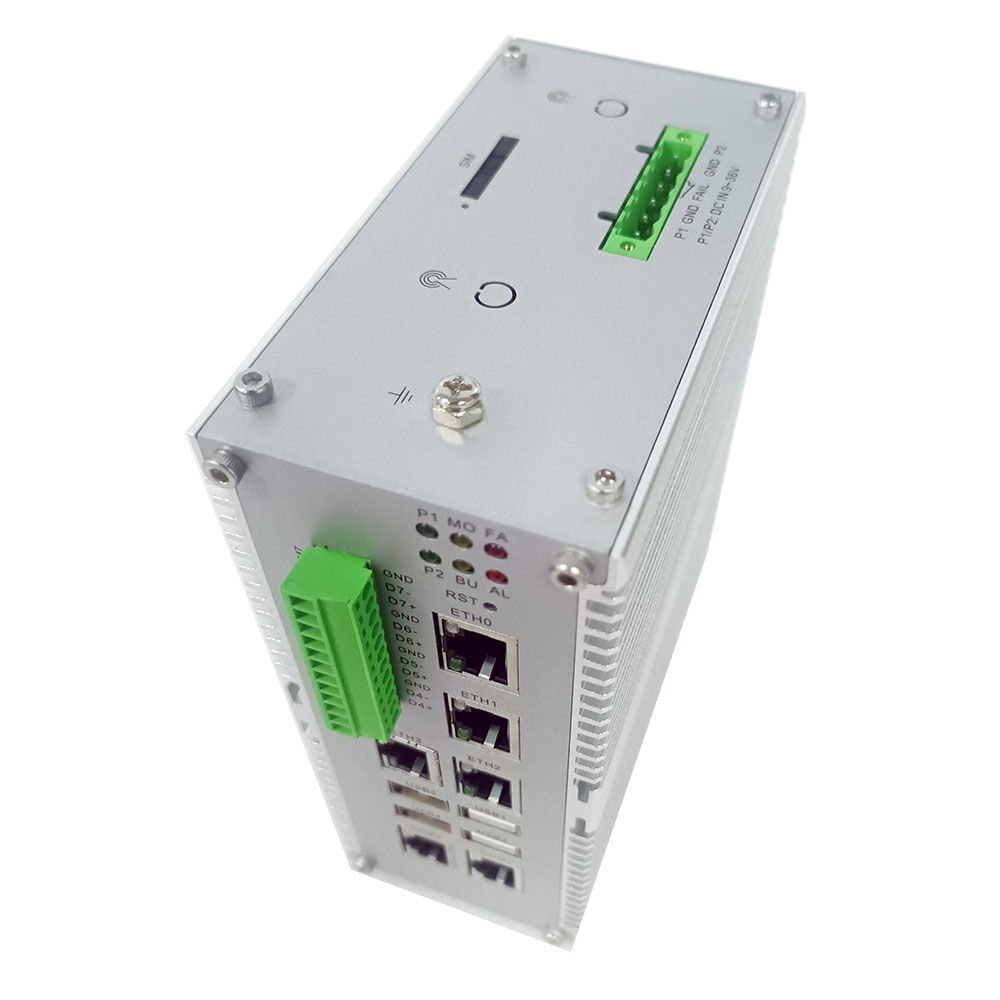

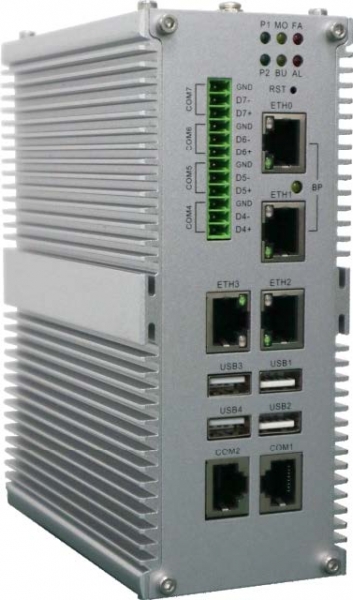

Wide temperature Fanless Industrial Embedded computer with 4 GbE Rj45 2 RS232 5 RS485
Country of Origin: China
Customization OEM accepted
Datasheet (PDF)
[4] Images
Din Rail Industrial Computer With 4 GLAN 2 RS232 And 5 RS485
Embedded Computer
Industrial Computer
Fanless Computer
Features
- Onboard Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
- One 204pin 1600MHz DDR3L RAM, max 8GB RAM

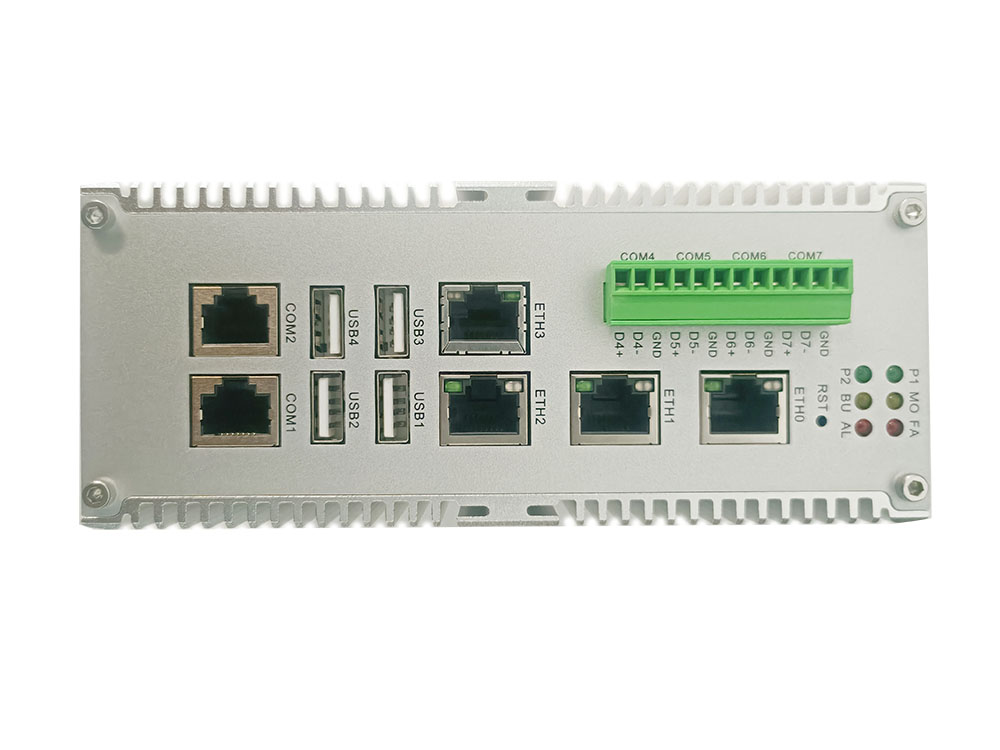

- Four Gigabit Ethernet ports, support one channel LAN BYPASS
- Two RS232 RJ-45 port
- Five RS-485 COM isolated interface
- Optional a 4G model(external SIM slot)
- Four USB2.0, mSATA storage
- Two 9~36VDC wide voltage DC inputs, with alarm for power failure
- Multi-function LED indicators , support customize according to requirements
- Fanless thermally conductive aluminum extrusion to support wide temperature working
- Support DIN-RAIL rail type installation
- Widely used in industrial-application environments
Specifications
Motherboard
- CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
- BIOS SPI FLASH BIOS
- System memory Max 4GB RAM
Storage
- Interface One SATA Interface
- SSD MAX 512G industrial mSATA SSD
- CF slot None
Ethernet
- LAN Port Rj45 Four 10/100/1000Mbps RJ45 network interfaces
- BYPASS Suppoer one channel LAN BYPASS
- Indicator With LAN link, active, speed LED, built-in BYPASS status LED
System I/O
- USB Four USB2.0
- COM RS232 Two RS232 COM RJ-45 connectors
- COM RS485 Five RS485 COM Phoenix connectors
- Indicator One Power LED, one HDD LED

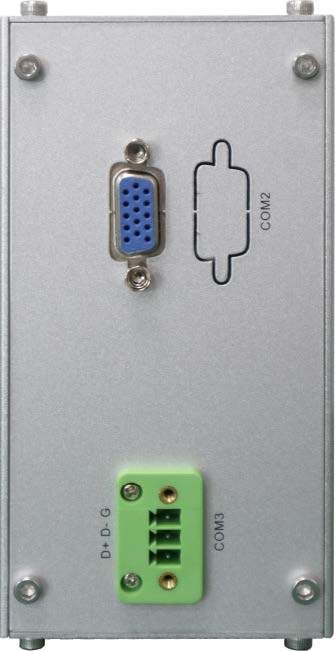

- Display One built-in VGA interface, supports hot plug, maximum resolution support 2048x1536
- USB Four USB2.0 Pin interface
- Reset One built-in reset button
- COM One RS232 Pin interface, optional external RS-485 interface with isolation
- DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
- Watchdog 1~255 seconds programmable software watchdog, support system reset
- 4G module One full Netcom 4G module, external SIM slot
-
Power supply
- Power consumption 60W power adapter

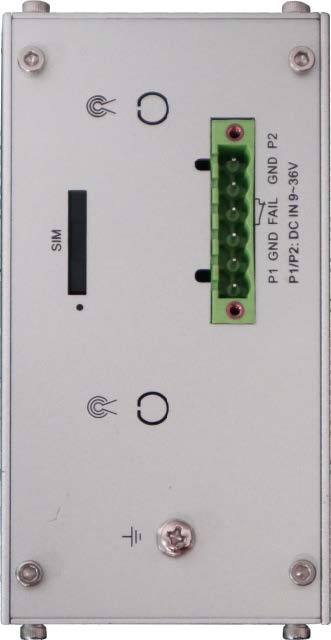

- Power input Dual 9 ~ 36V wide range DC input
Environmental

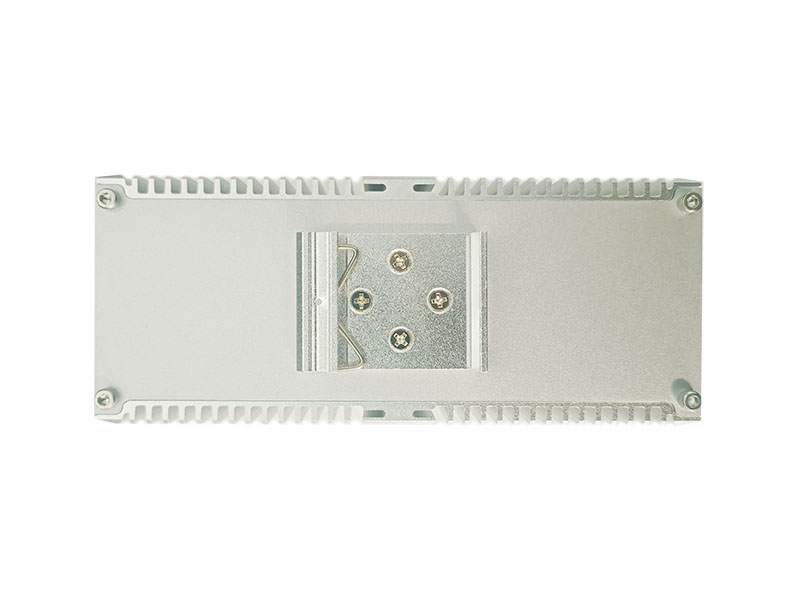

- Mounting Support DIN-RAIL rail type installation
- Operate Temperature -40°C ~ 70°C
- Storage Temperature -50°C ~ 85°C
- Operate Humidity 5% ~ 85% non-condensing @ 40°C
- Storage Humidity 5% ~ 95% non-condensing
Mechanical
- Chassis Color Silver
- Front panel Front panel silk-screen [Customized LOGO optional]
- Construction Aluminum extrusion chassis
- Dimensions (D x W x H) 158.1x122x60.8 mm
- Weight 3.5 kg
Ordering informations
- F1930A Din rail industrial computer, Aluminum extrusion chassis, E3845 CPU, 4 x GbE RJ45 with one lan bypass, 2x Rs232 and 5 RS485 COM, 60W Power adapter
