Fanless network Appliance

F19618

Fanless network Appliance plugs one nic with 4 RJ45 or SFP Gbe network ports

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [3] Images

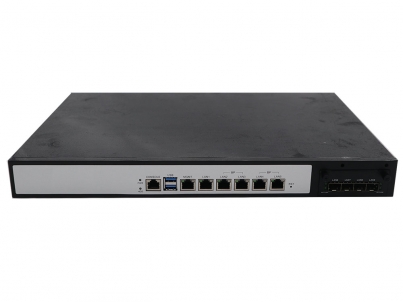

Fanless Network Appliance
Fanless Network Appliance

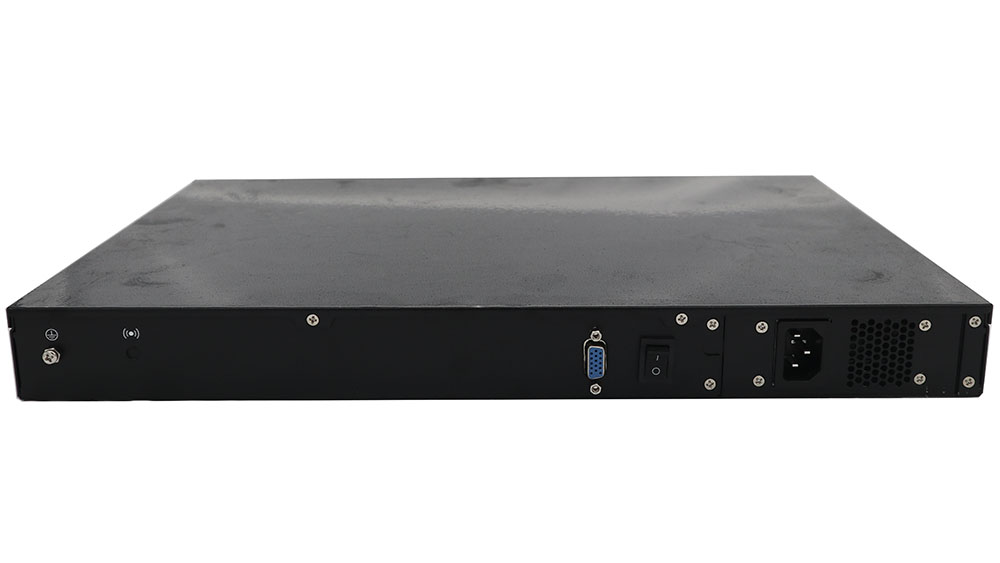

Fanless network Appliance [Photo.2]
Fanless network Appliance [Photo.2]

Fanless network Appliance [Photo.3]
Fanless network Appliance [Photo.3]

F19618 is a Fanless network Appliance, rackmount, onboard J1900 CPU, 6  GbE network ports, optional add one nic with 4 RJ45/SFP Gbe, one SATA and one mSATA interface, single or redundant power supply
Features
  • Fanless design nework hardware appliance
  • Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
  • One 204-pin DDR3-L DIMM slots, up to 8 GB
  • Six Intel PCIe GbE controllers, support two channels bypass
  • One SATAinterface and one mSATA interface
  • Two USB3.0, One CF TypeII
  • One RJ45 for RS232 communication
  • Optional one NIC module adding 4 RJ45/SFP GbE network ports
Specifications
Motherboard
CPU Onboard Intel Bay Trial J1900 Quad-core CPU
System memory One 204-pin DDR3-L DIMM slots, up to 8GB
Storage
Interface One SATA and one mSATA connectors
Hard Drive One2.5" HDD trays
CF slot One CFII slot
Ethernet
LAN Port Six 10/100/1000Mbps RJ-45 ports

Ethernet Controller Six Intel i211AT GbE controllers

BYPASS Twochannels Gen3.0 BYPASS

Expansion One NIC with 4 SFP/RJ45 GBE
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)
Power supply
Power consumption Built-in 60W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Mechanical
Chassis Color Black or OEM
Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 430x295x44.5mm
Weight 9.6 kg
Ordering informations
F19618 1u rackmount chassis, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 60W PSU
F19618-P2 1u rackmount chassis, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 70W redundant PSU
Optional NIC modules
58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
