  3. Wide Temperature network appliance with fanless design 6GbE vga4GB ram 64G mSATA ssd

F19605-B

F19605-B

Wide Temperature network appliance with fanless design 6GbE vga4GB ram 64G mSATA ssd

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

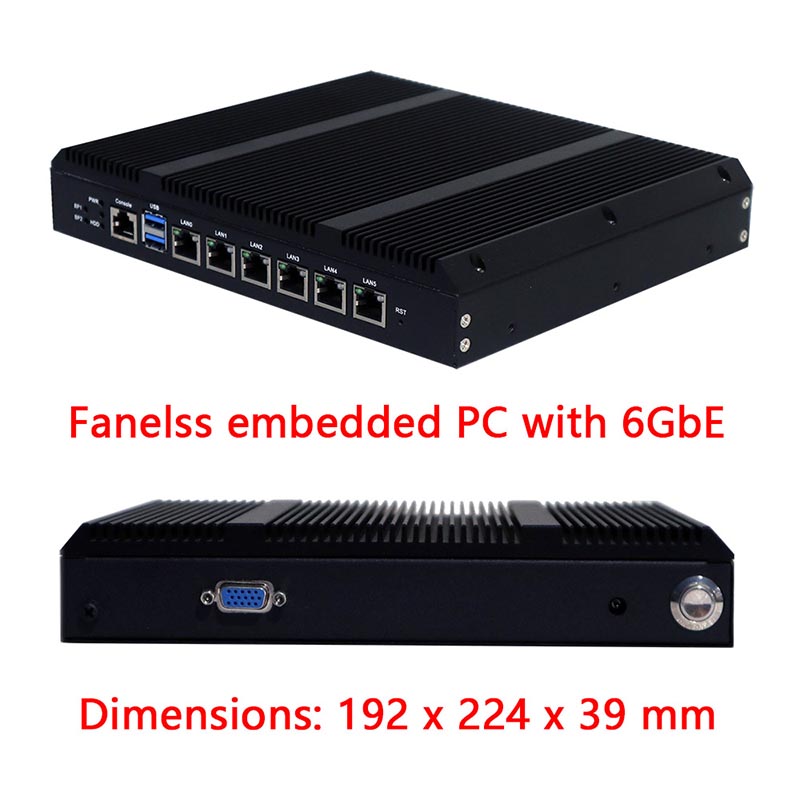

Wide Temperature Network Appliance
Wide Temperature Network Appliance

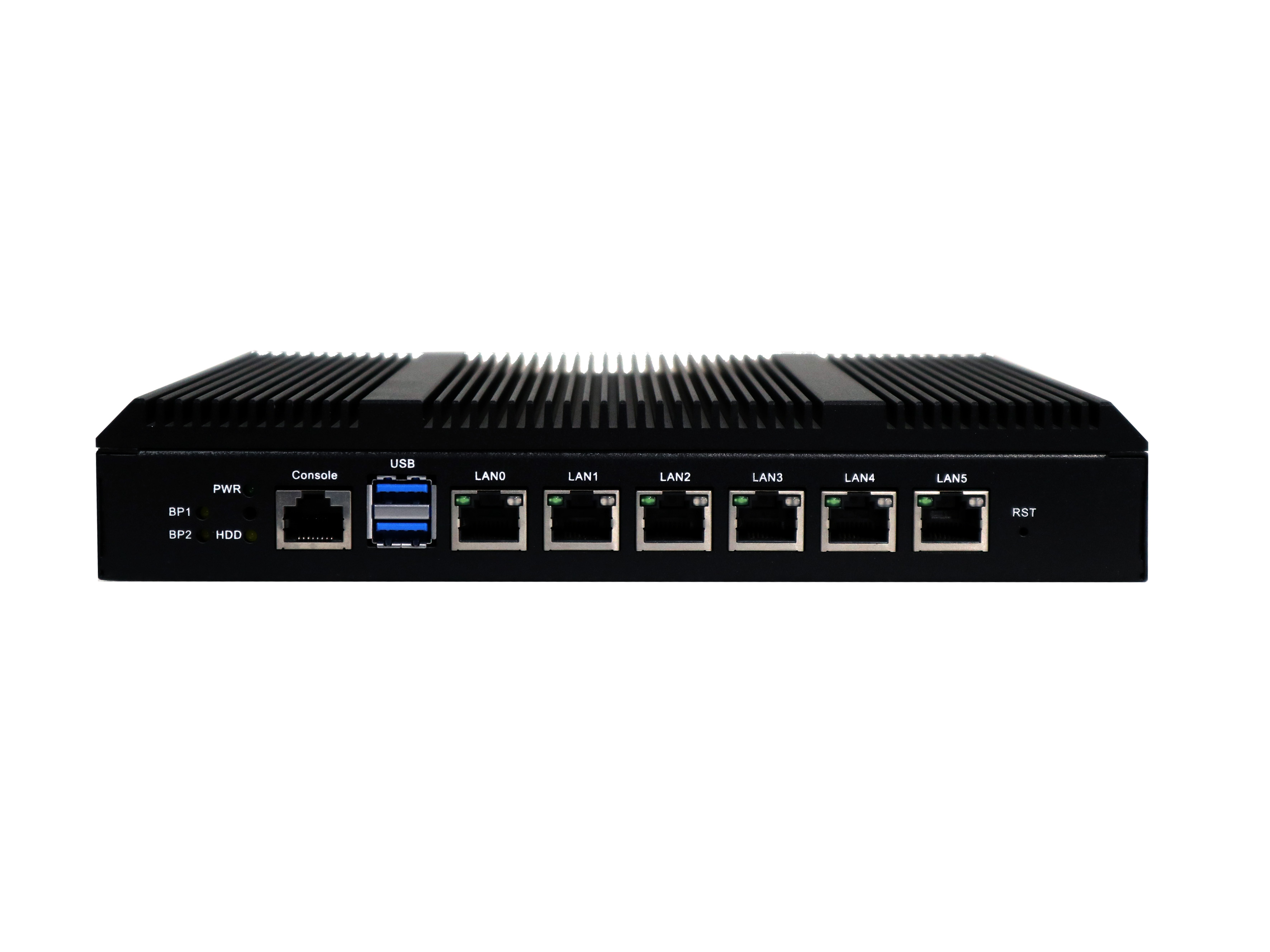

Fanless Network Appliance
Fanless Network Appliance

Features
  • Wide Temperature network appliance
  • Fanless design with Aluminum extrusion cover
  • Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
  • One 204-pin DDR3-L DIMM slots, up to 8 GB
  • Six Intel PCIe GbE controllers, support two channels bypass
  • One SATA  interface and one mSATA interface
  • Two USB3.0, One CF TypeII
  • One RJ45 for RS232 communication
  • 12V/3A  DC power adapter
Specifications
Motherboard
  • CPU Onboard Intel Bay Trial J1900 Quad-core CPU
  • System memory One 204-pin DDR3-L DIMM slots, up to 8GB
Storage
  • Interface one mSATA connectors
Ethernet
  • LAN Port Six 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Six Intel PCIe GbE controllers
  • BYPASS 2 channels BYPASS
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Reset Button One built-in reset button
  • Indicator One Power LED, one HDD LED
  • Video One VGA interface, support hot plug(Internal)
Power supply
  • Power consumption 12V/3A DC in
  • Power input 100 ~ 240V AC power adapter
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -20°C ~ 70°C
  • Storage Temperature -40°C ~ 85°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Construction Aluminum extrusion cover and Metal chass
  • Dimensions (D x W x H) 192 x 224 x 39 mm
  • Weight 3.5 kg
Ordering informations
  • F19605-A  Wide Temperature network appliance,  J1900 CPU,  6 GbE, 2 channels LAN, BYPASS, 12V/3A power adapter, 4GB DDR3L,  32G mSATA
  • F19605-B  Wide Temperature network appliance, J1900 CPU,  6 GbE, 2 channels LAN, BYPASS, 12V/3A power adapter, 4GB DDR3L,  64G mSATA
