7 inch Industrial panel LCD touch screen monitor

7 inch Industrial panel LCD touch screen monitor

Model NO. IDM-07

Customization OEM accepted

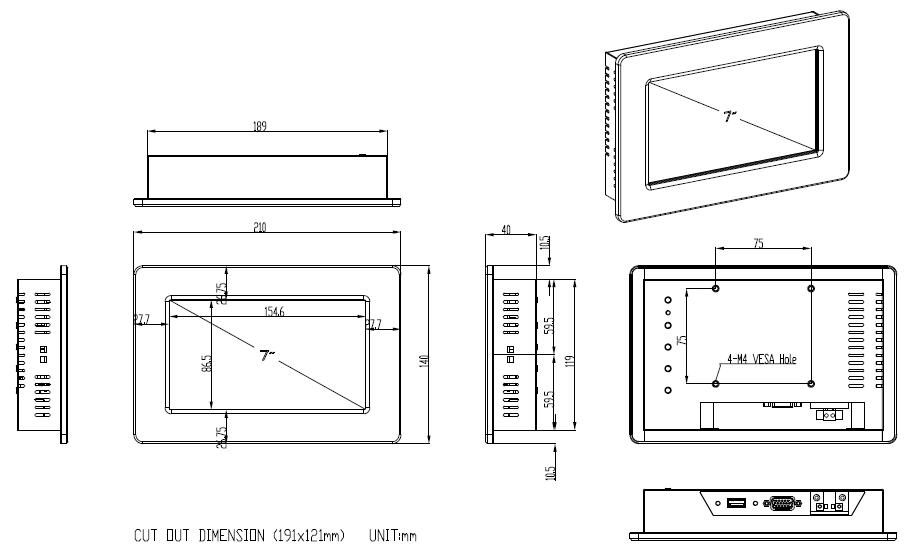

Datasheet (PDF) Dimensions Drawing [4] Images

7 Inch Touch Screen Monitor

7 Inch Touch Panel Monitor

7 Inch Industrial Monitor

7 Inch Touch Screen Display

Features

7" WVGA TFT LCD Panel support 1024 x 600/ 800 x 480 pixels,300 cd/m2 brightness
6mm Aluminum front bezel panel and with resistive touch screen
Rugged construction and modularized design
VGA Input signal
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter
DC 8 ~ 30V input power module(Optional)
Panel ( Flush ) mount with bracket
NEMA4 / IP 65 compliant front panel
With standard VESA hole ( 75x75 mm ), support desk top stand /wall mount/ swing arm mounting

Specifications

Display

Size WVGA 7" TFT LCD
Resolution 800*480 / 1024*600
Color 262K
Backlight LED
Luminance 300 cd/m2
Contrast Ratio 300:1
View Angle 120°(H) , 110°(V)
LCD MTBF 50,000hrs

System

Construction Aluminum magnesium Alloy
Color Black

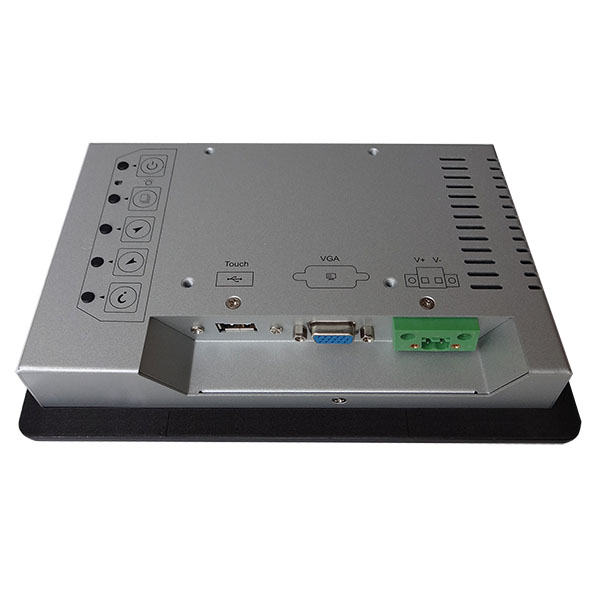

I/O DC input/VGA/USB
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power Supply DC12V input

Touchscreen

Type Resistive Touchscreen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions

Environmental

Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% non-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65

Packing info

Dimensions(WxHxD) 210 x 140 x 40 mm
Packing Dimension 406x344x140mm
NET weight 2.8KG

Ordering informations

IDM-07 Industrial monitor with 7" TFT LCD, VGA
IDM-07T Industrial monitor with 7" TFT LCD, 7" touch screen, VGA
