  3. 12.1 inches industrial panel pc

12.1 inches industrial panel pc

Model NO. IPC-1201A

Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [3] Images

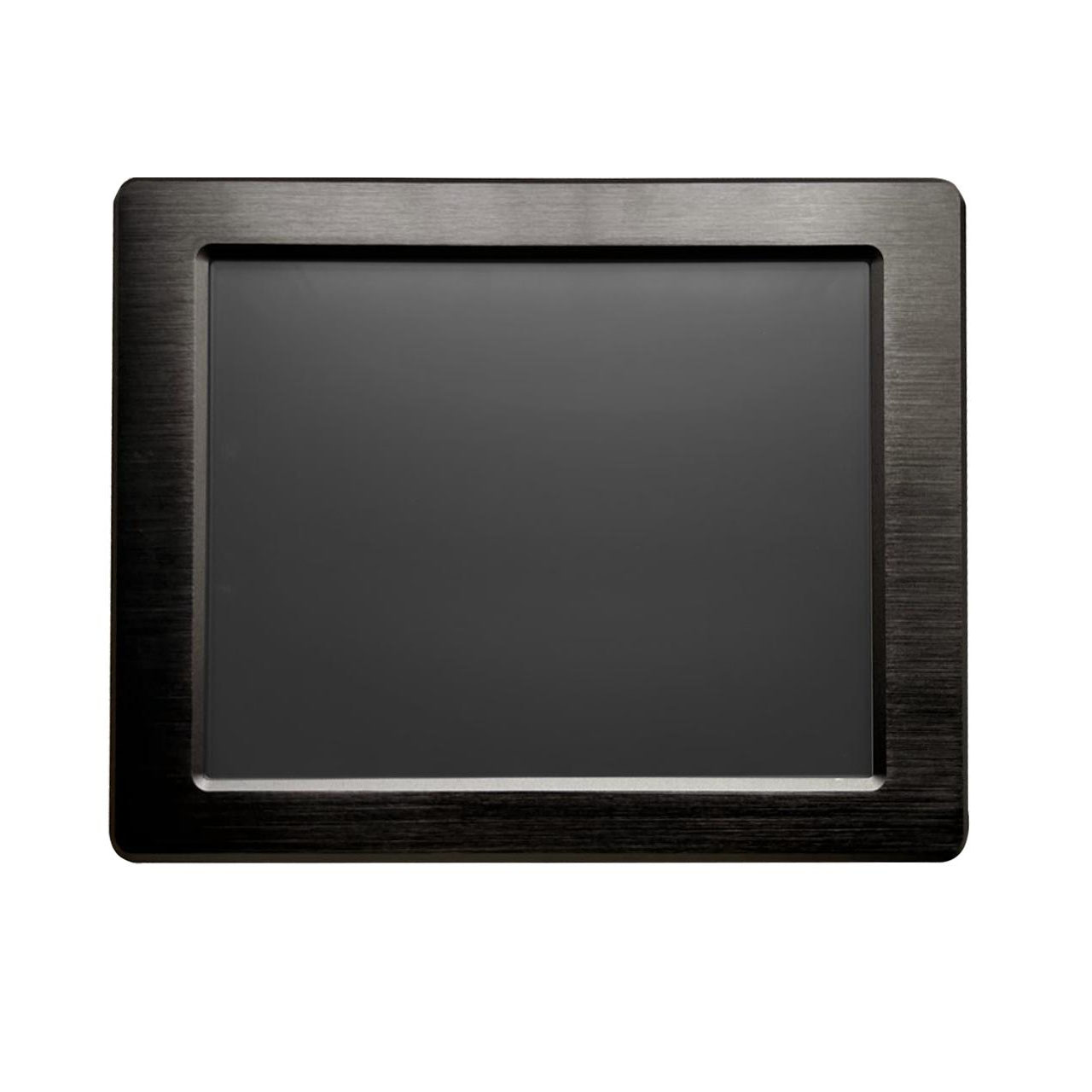

Panel Pc 4 COM
Panel Pc 4 COM

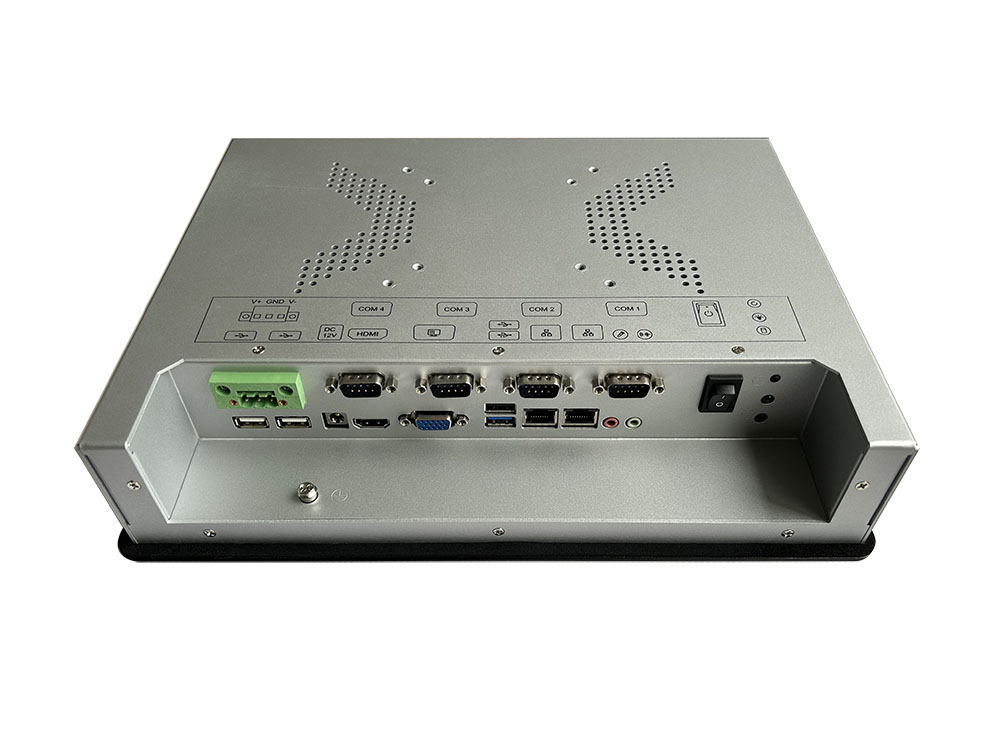

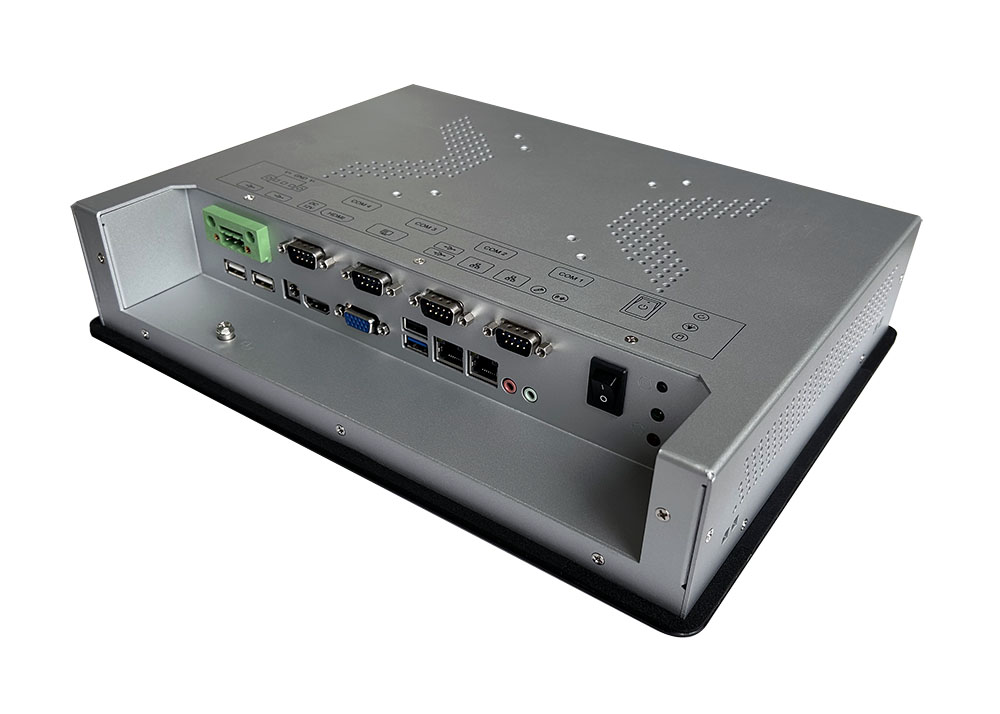

IPC-1201A Rear Side View
IPC-1201A Rear Side View

IPC-1201A Rear Side View
IPC-1201A Rear Side View

Features

  • Intel Celeron J1900 Quad Core 2.0G CPU
  • 1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB
  • 12.1" XGA LCD Panel support 1024x768 pixels
  • Aluminum front bezel with resistive touch scree
  • 4x RS232 COM , 1x HDMI, 1x VGA, 4x USB, 2x LAN, 1x Mic-in/Line-out
  • Wide range DC 9-32V DC input
  • Panel mount / VESA 75 x 75mm and 100 x 100mm
  • Supports Win7/Win10, Linux
  • CE,ROHS compliant

Specification

  • Model IPC-1201A 12.1” Industrial Panel PC
  • System
    • CPU Intel® Celeron J1900 (Four-core 2.0GHz processor) CPU
    • Chipset Intel Bay trail SOC
    • Memory 1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB
    • HDD Space for 1x 2.5" SATA HDD
    • Ethernet 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet
    • Graphic Intel HD chipset
    • Audio Realtek ® ALC662, 5.1 channel surround audio
  • I/O Ports
    • Serial ports 4x RS-232 COM
    • Ethernet 2x 10/100/1000MLAN port ( RJ-45 )
    • USB port 3x USB2.0, 1x USB3.0
    • HDMI 1x HDMI Connector
    • VGA 1x DB-15 Connector
    • Sound 1x Mic-in / Line-out
    • DC input Connector 1x 3Pin DC power input terminal block , 1x DC Jack
  • Power Supply
    • Output Rating 24.5W
    • Input Voltage DC 12V/ Wide range DC 9-36V input
  • LCD Display
    • Display Type 12.1” LED panel
    • resolution (Pixels) 1024 x 768
    • Brightness 350cd/m2
    • Contrast Ratio 800:1
    • Response Time 16 ms
    • Viewing angle 160°(H) , 160°(V)
    • Operation Lifetime 50.000 Hrs
  • Touch screen
    • Controller Internal USB interface controller
    • Resolution continuous
    • Light transmission 80% or more
    • Surface hardness 3H
    • Operating force ≤100g
    • Life expectancy 35 Million
  • Environmental & Mechanical
    • Operating Temperature 0 °C to 60°C
    • Storage temperature -20 °C to 60 °C
    • Relative Humidity 10% to 90% non-condensing
    • Shock (operating) 1G /peak ( 11m sec)
    • Vibration 17 to 500HZ 1G PTP
    • OS support DOS, Windows7,10, Linux
    • Construction Aluminum front bezel and Aluminum chassis
    • Mounting Panel mount / VESA 75 x 75mm and 100 x 100mm
    • Dimension (WxHxD) 322 x 247.5 x 70 mm
    • Weight 4.5 KG

Ordering information

  • Model Description
  • IPC-1201A 12.1” XGA Industrial Panel PC, 1024x768, Intel® J1900 Processor, Optional size for RAM SSD, with Resistive Touch Screen, DC 9~32V
