Industrial panel PC with D525

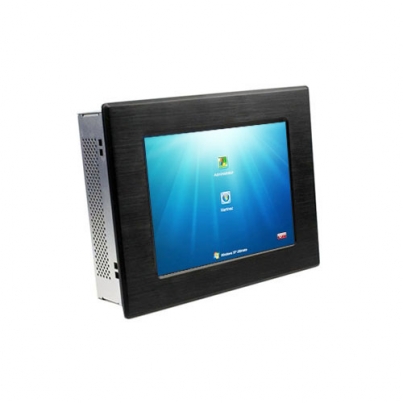

8.4 inch touch screen industrial panel PC

8.4 inch touch screen industrial panel PC

Model NO. IPC-08D

Customization OEM accepted

Datasheet (PDF) [2] Images

8 Inch Touch Panel PC

8 Inch Industrial Panel PC

Features

8.4" SVGA TFT LCD Panel support 800x600 pixels
Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
Front 6mm aluminum bezel with IP65 compliant
Front hardness glass protect screen ( touch option )

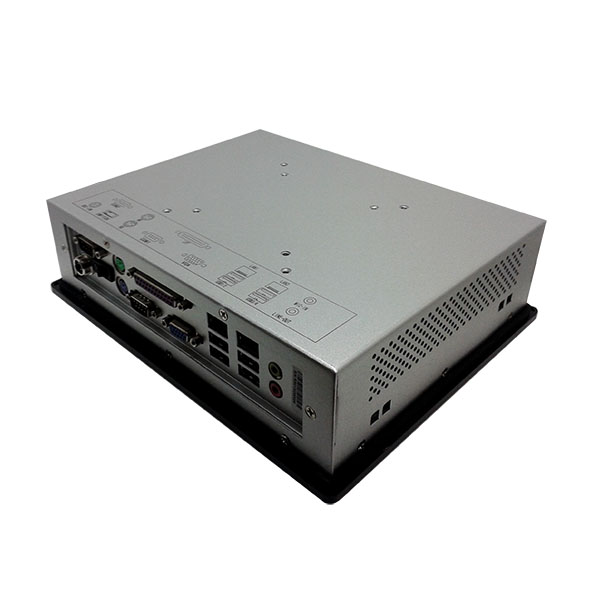

2* COM, 1* LPT, 2 * PS/2, 1 * VGA, 4 * USB, 2* GLAN, 1* AUDIO, 1* MIC
1* Mini PCIe slot
Wireless LAN with antenna (option)
Panel ( Flush ) mount with clips
Standard VESA 75mm support stand , wall mount and swing arm mounting

Specifications

System

Processor Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
Chipset Intel NM10
Memory DDR3 2G RAM
Dispay Intel GMA3150 chipset
Storage 2.5" HDD SATA 320G
Ethernet 2 x 100/1000 LAN ports
VGA port 1 x VGA Connector
KB & Mouse 1 x PS2 port
Audio Realtek ALC662, 5.1 channel surround audio
USB Port 4 x USB 2.0
Serial Port 2 x RS-232, COM2, RS232/RS422/RS485
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply 1 x DC input connector
Construction Front aluminum bezel and steel chassis

LCD display

Display Type 8.4" SVGA TFT LCD
Resolution 800 x 600
Max.color 16.2M
Luminance 250 cd/m2
View Angle 150°(H) , 135°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 500:1
Response Time 8 ms
LCD MTBF 50, 000hrs

Available Options

Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard
DC Power Input Wide Range 8~28v DC input

Power supply

Input 100~240VAC , 50/60Hz
Output DC 12V@ 10A / 120W , external ac adapter with lockable connector

Environmental

Operate temperature 32°F~113°F (0°C to 45°C )
Storage temperature -4°F~140°F (-20°C to 60°C )
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Approvals CE/ROHS

Packing info

Dimensions (WxHxD) 248.8x196.8x70 mm
Weight Net: 4.5kg , Gross:6.0 kg

Ordering informations

IPC-08D 8.4" All in one industrial panel PC with Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD
IPC-08DT 8.4" touch screen industrial panel PC with Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD, with Resistive Touch Screen
