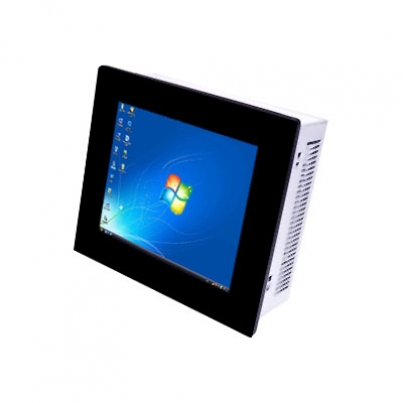

Small All in one panel PC with 8.4 inch LCD

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [1] Images

Industrial Panel Pc

Features

8.4" SVGA TFT LCD Panel support 800�� 600 pixels & touch screen
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Windows XP Professional and WinXPe, Win7, Win8, Win10, Linux
2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC
1* Mini PCIe slot and wifi optional
Panel ( Flush ) mount with clips
Standard VESA 75mm support stand , wall mount and swing arm

Specifications

System

Processor Intel Celeron J1900
Chipset ICH8M
Memory DDR3 2G RAM(Max 8G)
Storage SSD 32G(HDD optional)
Ethernet 1 x 100/1000 LAN ports
Video 1 x VGA, 1x HDMI & LVDS
Audio 1x line out
USB Port 4 x USB 2.0
Serial Port 2 x RS-232
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V(Optional 9-36V)
Construction Front aluminum bezel and steel chassis

LCD display

Display Type 8.4 SVGA TFT LCD
Resolution 800 x 600
Max.color 16.2M
Luminance 250 cd/m2
View Angle 150°(H) , 135°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 500:1
Response Time 8 ms
LCD MTBF 50, 000hrs

Available Options

Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard(WiFI)
DC Power Input Wide Range 9~36v DC input

Power supply

Input 100~240VAC , 50/60Hz
Output DC 12V-In , external ac adapter with lockable connector

Environmental

Operate temperature 32 °F~113 °F (0 °C to 45°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Approvals CE/ROHS

Packing info

Dimensions (WxHxD) 248.8x196.8x670 mm
Weight Net: 4.5kg , Gross:6.0 kg

Ordering informations

IPC-0208J 8.4 inches industrial LCD All in one touch screen PC, withIntel J1900 Processor, 2G RAM,32GSSD,2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC , Resistive Touch Screen
