1u network appliance based on H110 chipset supports Gen6 i3 i5 i7 processors

1u network appliance based on H110 chipset supports Gen6 i3 i5 i7 processors

Model NO. F1116

Customization OEM accepted

CPU Optional Datasheet (PDF) [2] Images

Network Security Appliance

1u Network Appliance

Features

Supports Sky Lake Intel LGA1151 Socket Xeon E3-12XX V5, Gen 6/7th i3 i5 i7 Core, Pentium processor
Intel H110 chipset
Two dual-channel 1866/2133MHz DDR4 slots, up to 64 GB
Six Intel PCIe GbE controllers(i210-AT)
One HDD trays and Three SATA 6Gb/s support RAID0, 1, 5, 10
Supports USB3.0, MSATA, CF TypeII, COM
Supports add one NIC model for more Intel GbE network ports

Specifications

Motherboard

CPU Intel LGA1151 Socket Gen5 Xeon E3. Gen6 i3/i5/i7 Core, Pentium processor
Chipset Intel H110
BIOS UEFI BIOS
System memory Two 1866/2333MHz DDR4 slots, up to 64GB
Watchdog Timer Software programmable supports 1~255sec System reset

Storage

Interface Three SATA connector
Hard Drive one 3.5/2.5" HDD trays supports RAID 0, 1, 5, 10
SSD One mSATA slot, one CFII slot

Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel I210-AT GbE controllers
BYPASS Optional 2/3 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0 Onboard 2xUSB2.0 Pin and 2xUSB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
TPM Built-in one TPM, for TPM module
DIO 8-bit Digital I/O (4-bit input, 4-bit output)
Expansion Built-in One standard PCIEx4

Power supply

Power consumption Built-in 250W power supply(Optional DC power or Redundant power)
Power input 100 ~ 240V AC input

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 2u chassis, Heavy duty metal
Dimensions (D x W x H) 450x435x44.5mm
Weight 12.9 kg

Ordering informations

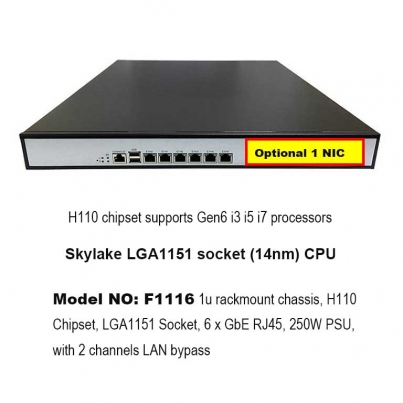

F1116-B0 1u rackmount chassis, H110 Chipset, LGA1151 Socket, 6 x GbE RJ45, 250W PSU
F1116-B1 1u rackmount chassis, H110 Chipset, LGA1151 Socket, 6 x GbE RJ45, 250W PSU, with 2 channels LAN bypass
CPU Optional Skylake LGA1151 socket (14nm) CPU

[Previous] Network appliance with Intel LGA1151 Socket 6 Intel i210-AT Gbe controllers

[Next] network security appliance
