Cyber network security appliance with motherboard Intel LGA 1200 socket and 4x NMC slots

Country of Origin: China
Customization OEM accepted

CPU Optional Datasheet (PDF) [2] Images

Cyber Security Appliance With 4 NMC Slots

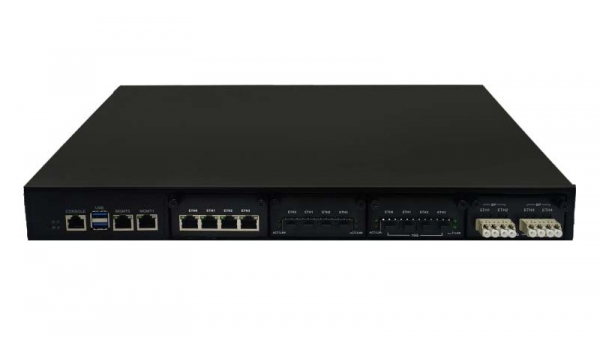

Cyber Security Appliance With 4 NMC Slots

Network Security Appliance With Motherboard Intel LGA 1200 Socket

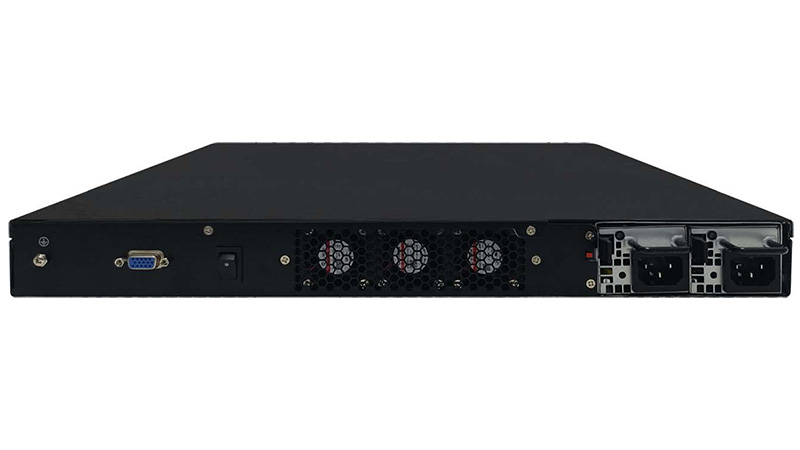

Network Security Appliance With Motherboard Intel LGA 1200 Socket

Network Cyber security appliance based on Intel庐 Rocket Lake family Intel庐 W580 Chipset, supports Intel LGA 1200 socket Gen10/11 i3/i5/i7 Core, Xeon W-1200/1300 processor, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.2 multiple storages options and 4 DDR4 RAM slots MAX 128G RAM. 2x 2.5G RJ45 GbE, 4 NMC slot, 250W PSU or 450W redundant PSU

The cyber security appliance has high performance and flexibale extension, Usually deploys into projects as network and cyber security including Unified Threat Management UTM, IPS, IDP, SSL VPN, Load Balancing, Bandwidth Manager, Firewall, Bandwidth Management, Gateway security, WAN acceleration, Network Access Control, Web Filter, AntiVirus Wall, Core Switch, Server Load Balancing, Anti-Spam.

Features
  • Supports Intel LGA 1200 socket Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
  • Intel W580 chipset(Rocket Lake family)
  • Four 288pin 2933/3200MHz DDR4 slots, up to 128GB
  • Two Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass
  • Four extension NMC slot for extending more network RJ45/ SFP/ SFP+ interfaces flexibly
  • Supports SATA3.0, mSATA, M.2 multiple storages options
  • Front USB3.0锛孋onsole interface and LED indicators
Specifications
Motherboard
  • CPU   Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
  • Chipset   Intel W580
  • System memory   Four DDR4 slots, up to 128GB
Storage
  • Interface   Two SATA3.0 connectors, one mSATA and one M.2 slot
  • Hard Drive   Supports one 3.5/2.5" HDD tray
Ethernet
  • LAN Port Two 2.5G RJ-45 ports
  • Ethernet Chip Intel庐 Ethernet Controller I225-V
  • Extension ports Max 32 ports, extending by NMC slots
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Indicator One Power LED, one HDD LED
  • Video Built-in one VGA interface, support hot plug(Internal)
  • NMC slots Four NMC slots for extension NIC
  • Expansion PCIEx8 slots
Power supply
  • Power consumption 250W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel PVC (OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 570x440x45 mm
  • Weight 10.6 kg
Ordering informations
  • F58214 Cyber Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, Intel LGA 1200 socket, 2x 2.5G RJ45, 4x NMC slots, 250W PSU
  • F58214-P2 Cyber Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, Intel LGA 1200 socket, 2x 2.5G RJ45, 4x NMC slots, 450W redundant PSU
Optional NIC modules
  • 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
  • 35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
  • 35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
  • 35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
  • 35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
  • 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
  • 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
  • 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
  • 71W4 4 10G SFP based on Intel XL710 controllers
