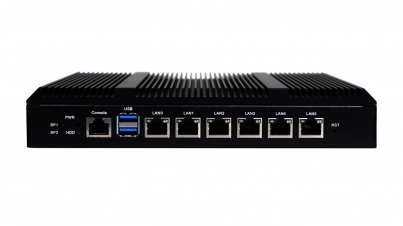

Fanless Industrial Embedded Computer Network appliance 6 GbE 4GB RAM 32G HDD msata 36W DC power

Fanless Industrial Embedded Computer Network appliance 6 GbE 4GB RAM 32G HDD msata 36W DC power

Model NO. F19605-A

Customization OEM accepted

Datasheet (PDF) [3] Images

Fanless Network Appliance

Fanless Embedded Computer

Fanless Computer

Features

Desktop Embedded network appliance
Fanless design with Aluminum extrusion cover
Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
One 204-pin DDR3-L DIMM slots, up to 8 GB
Six Intel PCIe GbE controllers, support two channels bypass
One SATA interface and one mSATA interface
Two USB3.0, One CF TypeII
One RJ45 for RS232 communication
12V/3A DC power adapter

Specifications

Motherboard

CPU Onboard Intel Bay Trial J1900 Quad-core CPU
System memory One 204-pin DDR3-L DIMM slots, up to 8GB

Storage

Interface one mSATA connectors

Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel PCIe GbE controllers
BYPASS 2 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video One VGA interface, support hot plug(Internal)

Power supply

Power consumption 12V/3A DC in
Power input 100 ~ 240V AC power adapter

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -20°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Construction Aluminum extrusion cover and Metal chass
Dimensions (D x W x H) 192 x 224 x 39 mm
Weight 3.5 kg

Ordering informations

F19605-A Fanless Embedded Network appliance, J1900 CPU, 6 GbE, 2 channels LAN, BYPASS, 12V/3A power adapter, 4GB DDR3L, 32G mSATA
F19605-B Fanless Embedded Network appliance, J1900 CPU, 6 GbE, 2 channels LAN, BYPASS, 12V/3A power adapter, 4GB DDR3L, 64G mSATA
