F23625

F23625

Rugged network security hadware appliance

Country of Origin: China
Customization OEM accepted

CPU Optional Datasheet (PDF) [4] Images

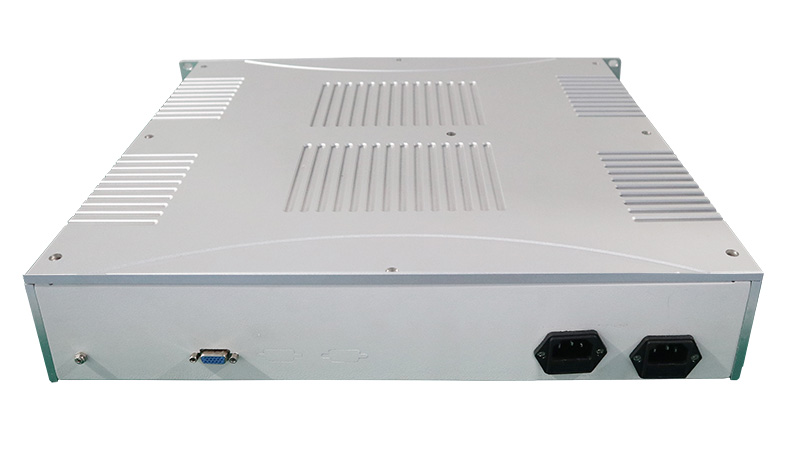

Rugged Network Security Appliance
Rugged Network Security Appliance

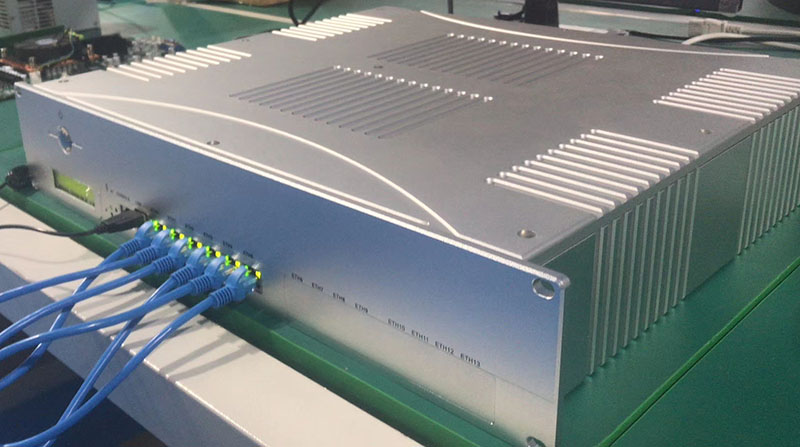

Rugged Network Appliance
Rugged Network Appliance

Rugged Network Hardware
Rugged Network Hardware

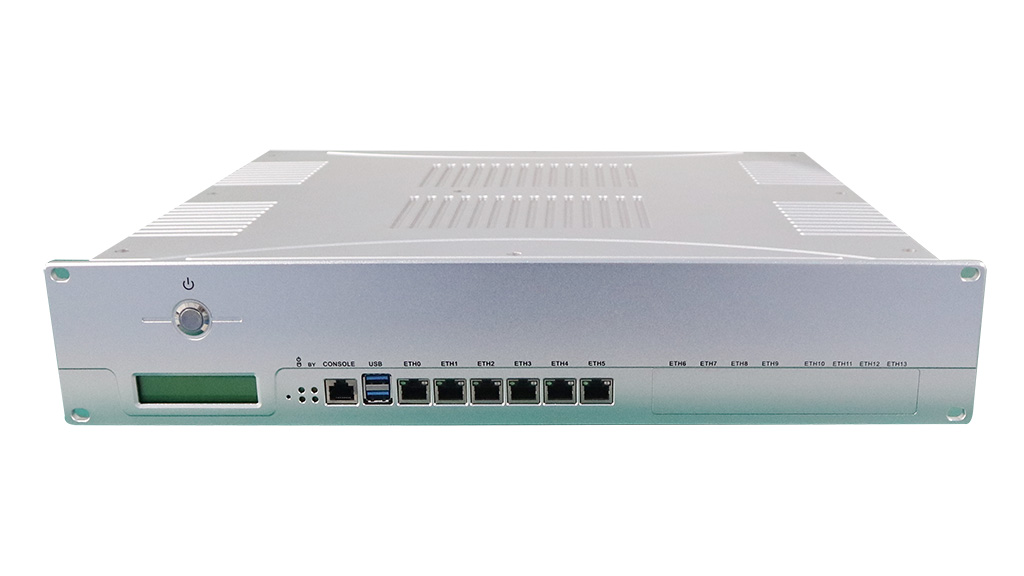

Rugged network security appliance [Photo.4]
Rugged network security appliance [Photo.4]

Ruggedized network appliance with Intel C236 chipset LGA1151 soket supports Gen 7/6th i3 i5 i7 and Xeon E3-1200V5 CPU, single or redundant power supply

Features
  • Ruggedized fanless network security system appliance
  • Supports Intel LGA1151 Socket 14nm Gen6/Gen7 Xeon E3-1200, Gen 6th i3 i5 i7 Core, Pentium processor
  • Intel C236 chipset
  • Two dual-channel 2133/2400MHz DDR4 slots, up to 64 GB
  • Six Intel PCIe GbE controllers for six network ports
  • Three SATA3.0 6Gb/s and one mSATA
  • Supports USB3.0, COM, VGA interface
  • Supports AC power and DC power supply hybrid dual redundant input
  • Two PCIEx8 supports add two nic modules
  • One PCIEx4 supports standard encryption card, isolation card
Specifications
Motherboard
  • CPU Supports Intel LGA1151 Socket Gen6/Gen7 Xeon E3-1200, or i3/i5/i7 Core, Pentium processor
  • Chipset Intel HC236 chipset
  • BIOS SPI Flash BIOS
  • System memory Two 2133/2400MHz DDR4 slots, up to 64GB
Storage
  • Interface Three SATA3.0 connector
  • Hard Drive Supports one 3.5/2.5" HDD trays
  • SSD one mSATA slot
Ethernet
  • LAN Port Six 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Six Intel I210AT PCIe GbE controllers
  • BYPASS 2 channels LAN BYPASS, optional 3 channels
  • Indicator LAN link, active, speed LED, built-in BYPASS function LED
External I/O
  • USB Two USB3.0
  • COM One RJ-45 COM console
  • Indicator One Power LED, one HDD LED
Internal I/O
  • USB Two USB3.0 pin and two USB2.0 Pin
  • COM One RJ-45 COM console
  • Watchdog 1~255 seconds programmable software watchdog, support system reset
  • Indicator One Power LED, one HDD LED
  • Serial ports One RS232 Pin for  LCM display module
  • TPM One TPM interface for Trusted Platform Module
  • Video Built-in one VGA interface, support hot plug(Internal)
  • Expansion Two PCIex8 for LAN cards
  • Expansion One PCIex4 for standard encryption card, isolation card
Power supply
  • Power supply A One 110 ~ 240V AC input
  • Power supply B One  16V~24V DC input
  • Power compatibility Support dual-channel hybrid redundant power input or single-channel power input
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -20°C ~ 70°C
  • Storage Temperature -40°C ~ 85°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Environmental
  • Chassis Color Silver or OEM
  • Front panel Aluminum front panel(OEM/Neutral)
  • Construction Ruggedized chassis, Aluminum material
  • Dimensions (D x W x H) 450x438x51mm
  • Weight 16.5kg
Ordering informations
  • F23615 Rackmount Ruggedized chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, AC and DC dual power input
Optional NIC modules
  • 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
  • 58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F8 8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
  • 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
  • 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
  • 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
