Rack mount monitor

RCIM-15

15 inch rack mount lcd monitor with touch screen

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

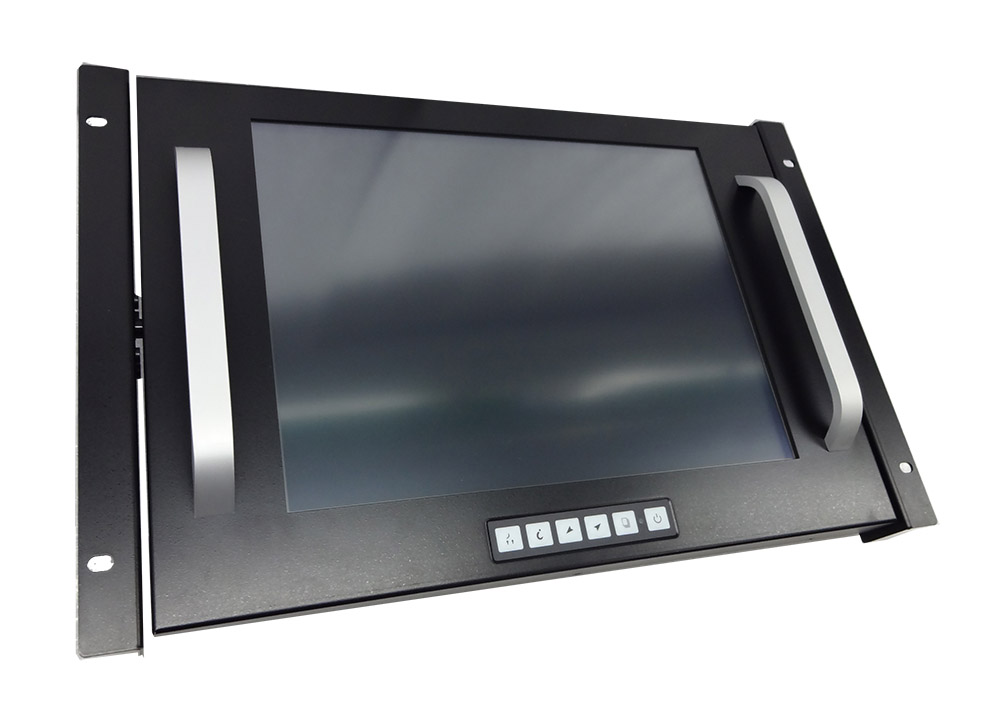

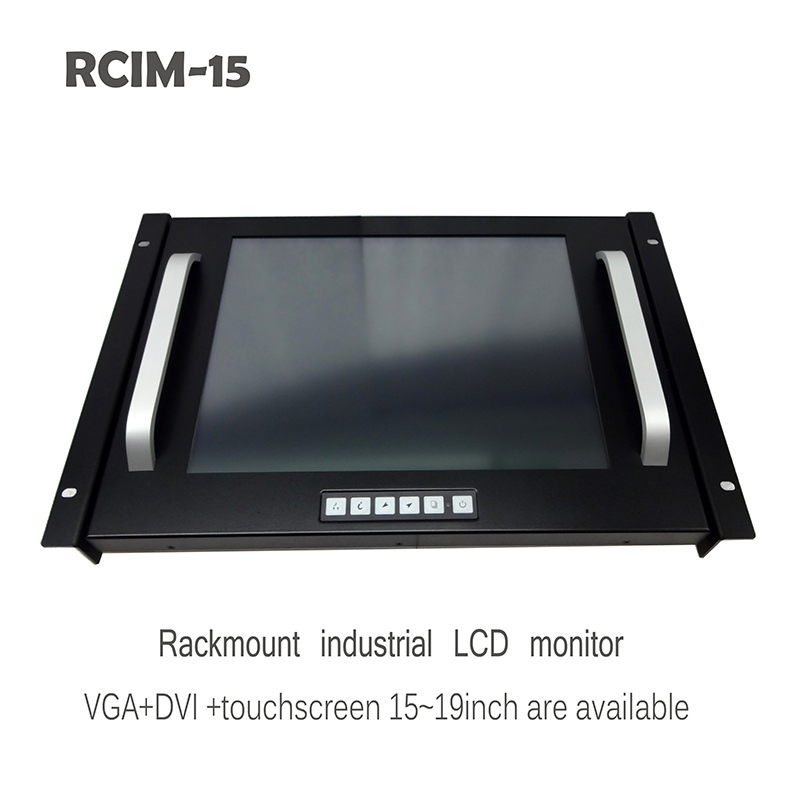

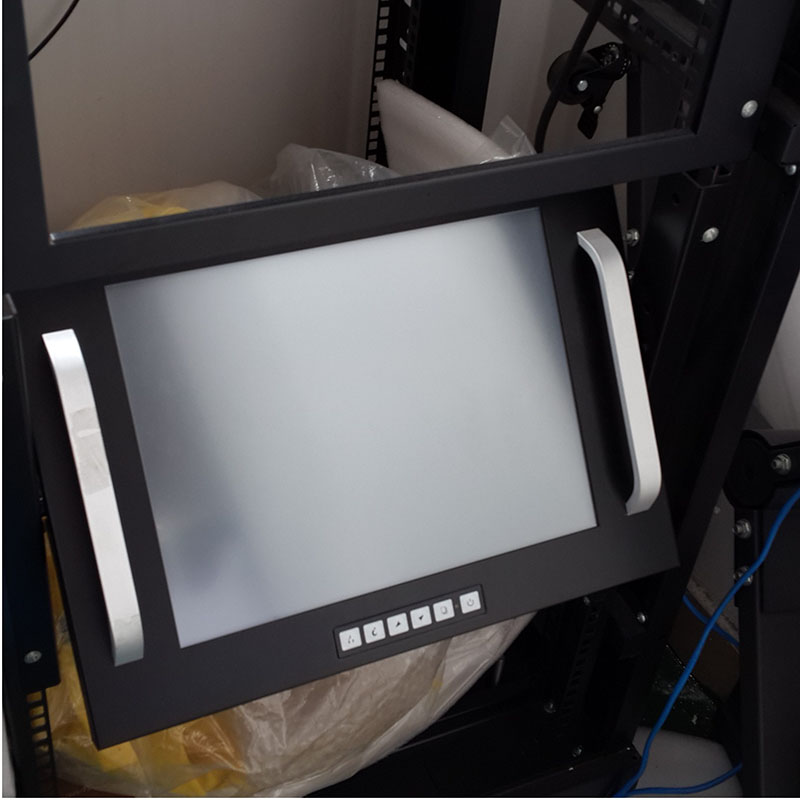

Rack Mount Monitor
Rack Mount Monitor

15 Inch Rackmount Monitor
15 Inch Rackmount Monitor

15 Inch Rack Lcd
15 Inch Rack Lcd

15 Inch Rack Mount LCD
15 Inch Rack Mount LCD

Features
  • 19" Compact 15" rack mount display monitor with 7U height
  • 15" XGA TFT LCD Panel support 1024x768 pixels
  • 90°tilt adjustment while mounted in rack: +45°~ -45°
  • Input signal : VGA + DVI + Audio
  • 250 cd/m2 brightness
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)
  • Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
Specifications
Display
Display Type 15" SXGA TFT LCD
Resolution 1024 x 768
Max.color 16.2M
Luminance 250 cd/m2
View Angle 178°(H) , 160°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 700:1
Response Time 8 ms
LCD MTBF 50,000hrs

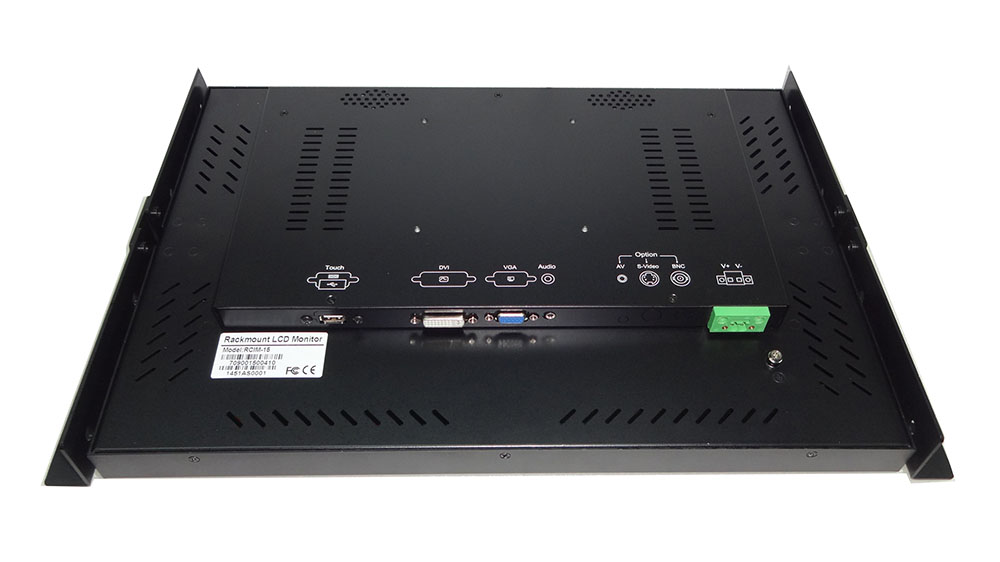

Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input Aviation 2pin Plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
Power supply
Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
Construction Heavy duty steel rackmountable chassis
Operate temperature 0°C to 50°C
Storage temperature -20°C to 60°C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS
Packing info
Dimensions (WxHxD) 482.6 x 310.3 x 48 mm
Weight Net: 6.0kg , Gross:9.5kg
Ordering informations
RCIM-15 15" LCD Industrial Rack Mount Monitor with VGA + DVI +Audio Input
RCIM-15TC 15" LCD Industrial Rack Mount Monitor with VGA + DVI +Audio Input, with touch screen and RS232 controller
RCIM-15TU 15" LCD Industrial Rack Mount Monitor with VGA + DVI +Audio Input, with touch screen and USB controller
