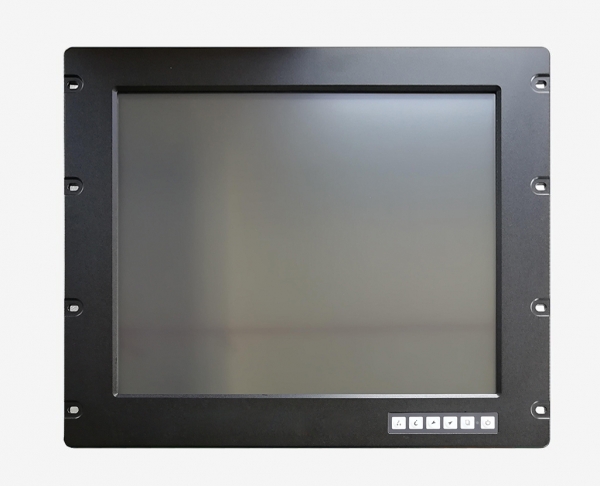

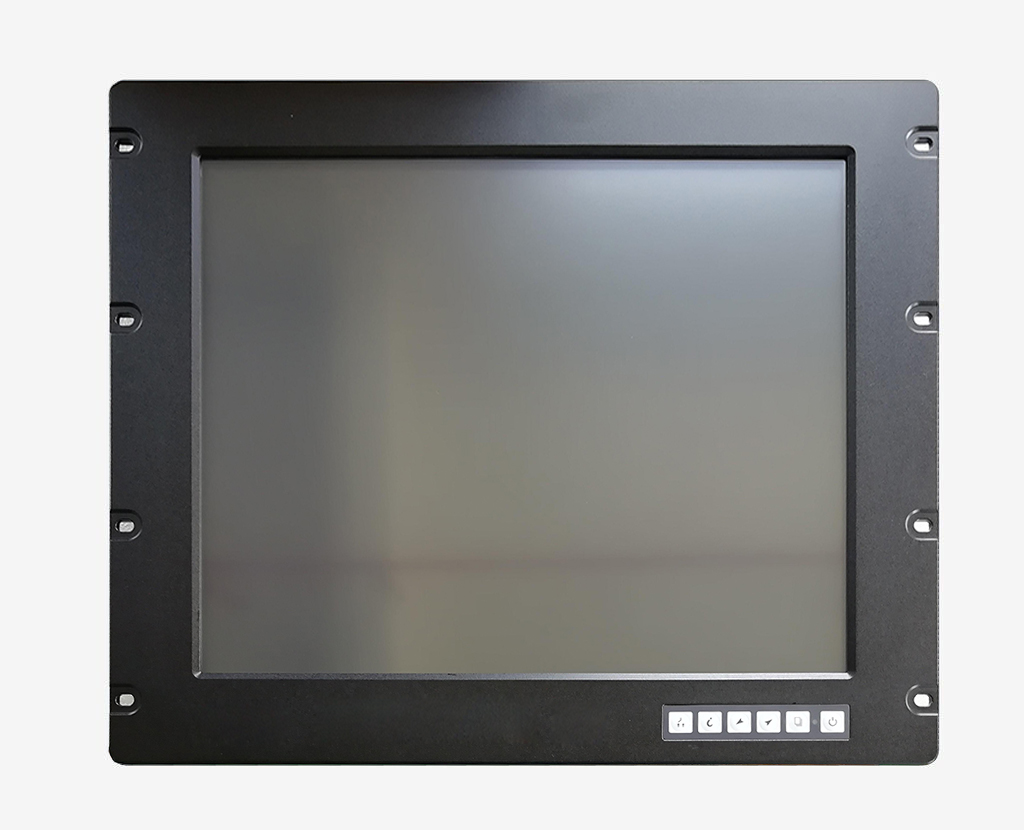

RCPM-19

RCPM-19

19 inches rack mount LCD monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [1] Images

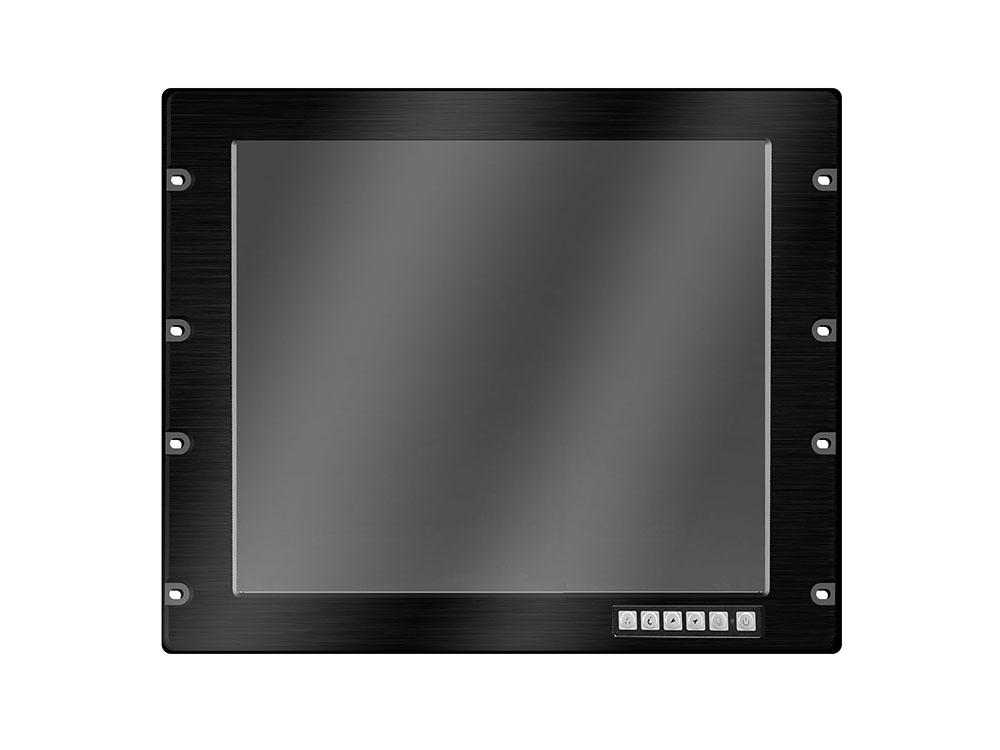

Rack Mount LCD
Rack Mount LCD

Features
  • Compact rack mount LCD monitor with 8.5U height
  • 19" SXGA TFT LCD Panel support 1280x1024 pixels
  • 90°tilt adjustment while mounted in rack: +45°~ -45°
  • Input signal : VGA + DVI + AUDIO
  • 300 cd/m2 brightness
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)
  • Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
Specifications
Display
  • Display Type 19" SXGA TFT LCD
  • Resolution 1280x1024
  • Max.color 16.7M
  • Luminance 300 cd/m2
  • View Angle 160°(H) , 160°(V)
  • Pixel Pitch 0.294 x 0.294mm
  • Contrast Ratio 1000:1
  • Response Time 5 ms
  • LCD MTBF 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input Aviation 2pin Plug
  • DVI-D Signal DVI-D input 24pin connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive Type with USB and RS232 controller
  • DC Power Input Wide Range 8~30v DC input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature 0°C to 50°C
  • Storage temperature -20°C to 60°C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Certification and Approvals CE/FCC/ROHS
Packing info
  • Dimensions (WxHxD) 482.6 x 375 x 47 mm
  • Weight Net: 9.0kg , Gross:11.5 kg
Ordering informations
  • RCPM-19 19" LCD Industrial Rack Mount LCD Monitor with VGA + DVI    + Audio input
  • RCPM-19TC 19" LCD Industrial Rack Mount LCD Monitor with VGA + DVI    + Audio input, with touch screen and RS232 controller
  • RCPM-19TU 19" LCD Industrial Rack Mount LCD Monitor with VGA + DVI    + Audio input, with touch screen and USB controller
