Specifications
System
Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage 1TB HDD(SSD optional)
Graphic Intel HD chipset

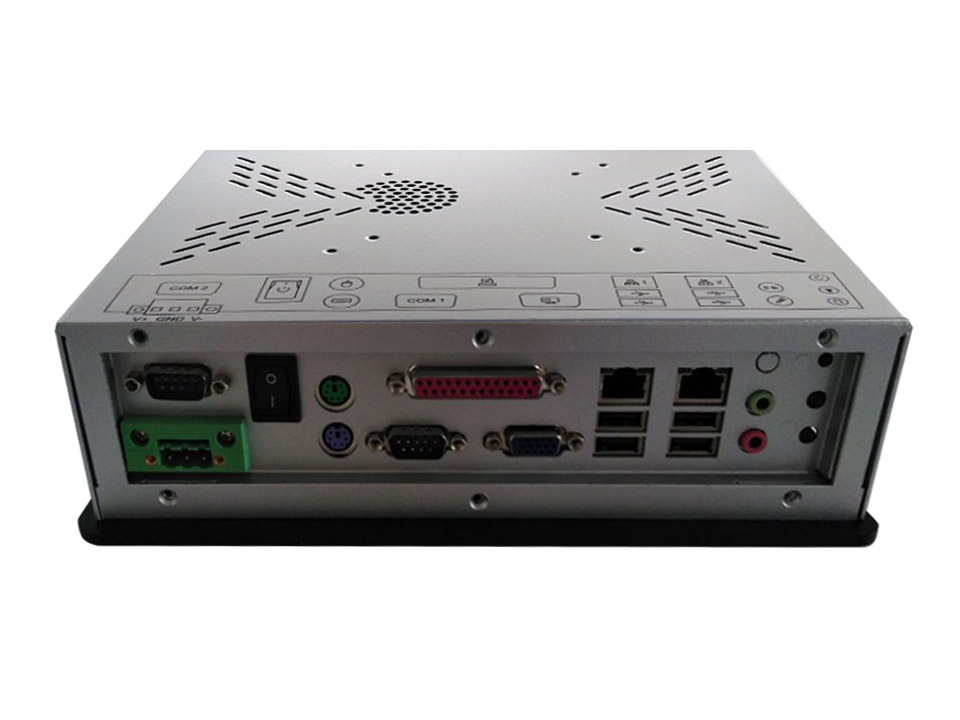

Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA
Audio 1x Mic-in and 1x Line-out
USB Port 4 x USB 2.0
Serial Port 2*COM(1* RS232,1*RS422/RS485)
Parallel ports(LPT) 1 x SPP/EPP/ECP port
Keyboard /Mouse 2xPS/2
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
Construction Front aluminum bezel(6 mm) and steel chassis
LCD display

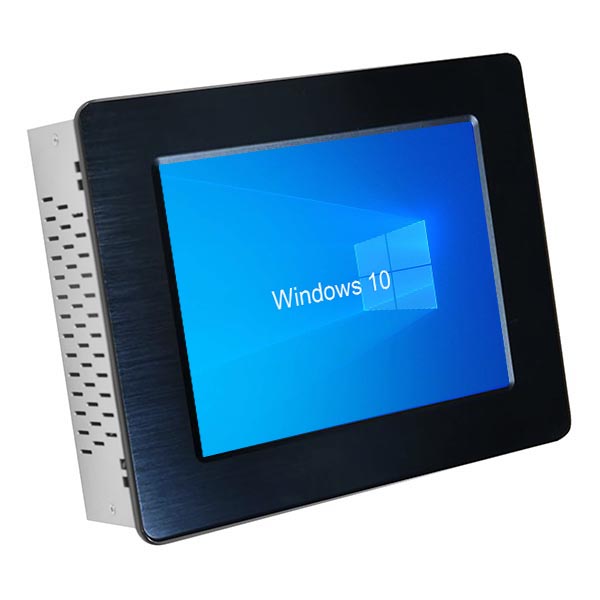

Display Type 8.4" SVGA TFT LCD(LED backlight)
Resolution 800*600
Max.color 16.2M
Luminance 250 cd/m2
View Angle 160°(H) , 140°(V)
Pixel Pitch 0.292 x 0.292 mm
Contrast Ratio 600:1
Response Time 30 ms
LCD MTBF 50, 000hrs
Touchscreen
Type Resistive Touchscreen with internal USB interface controller
Resolution Continuous
Light Transmission 80% or more
Surface hardness 3H
Operating Force ≤100g
Life Expectancy 35 Millions
Environmental
Operate temperature 32 °F~113 °F (0 °C to 45°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Power supply
Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 23.5W
Packing info
Dimensions (WxHxD) 248.8 x 196.8 x 70mm
Weight Net: 4kg , Gross:5.6 kg
