IDM-17-M25

Industrial panel monitor with Resistive Touch Screen, 17" LCD Panel, 1280 x 1024, SXGA, LED Backlight, VGA , HDMI, 4:3


  • Touch Screen: Resistive Touch Screen
  • Size: 17" LCD Panel
  • Resolution: 1280 x 1024, SXGA
  • Backlight Type: LED Backlight
  • Signal Interface: VGA , HDMI
  • Video Format: 4:3

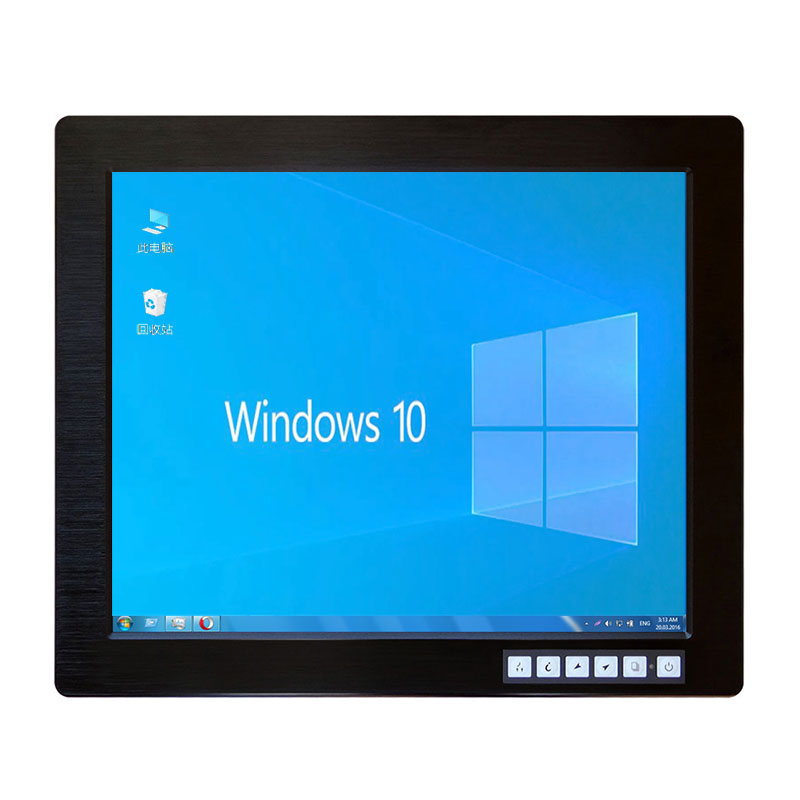

17" is an industrial touch screen monitor, equipped a LCD panel supports 1280 x 1024 resolutions. 6mm aluminum panel, IP65 level. touch screen or strengthen grass. It is idealy used into HMI, Kisok, Automation machine, M2M, Smart factory,heavy Manufacturing Equipment.

  • 17" SXGA TFT LCD Panel support 1280 x 1024 pixels,300 cd/m2 brightness

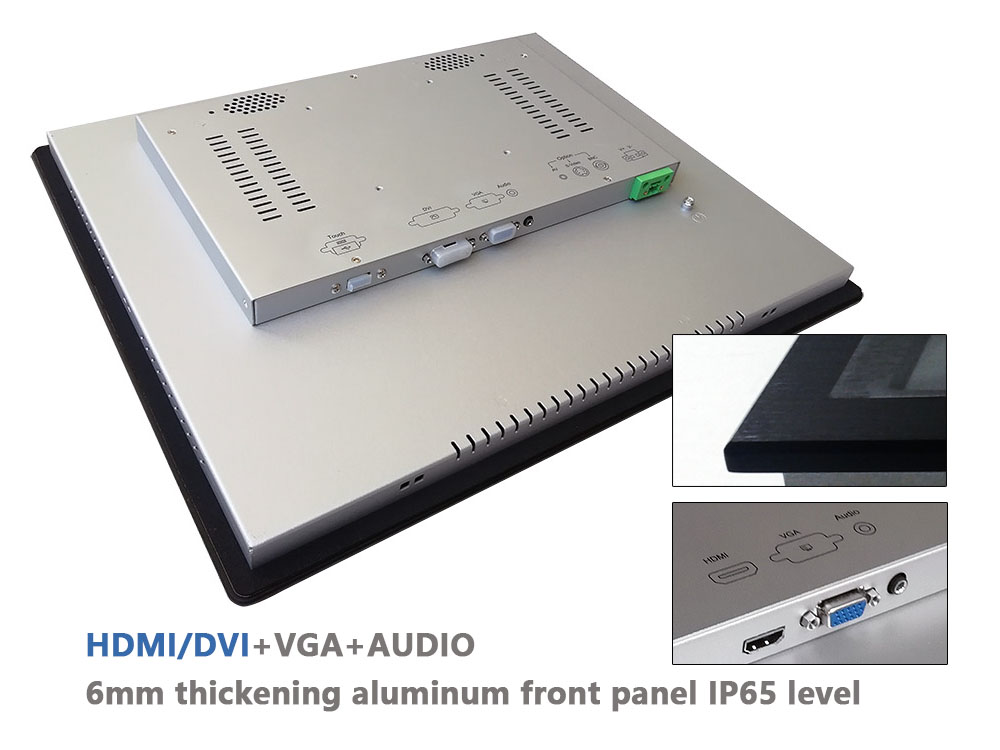

  • 6mm Aluminum bezel panel with touch screen/strengthen glass

  • Rugged construction and modularized design

  • VGA + DVI/HDMI + Audio Input signal(AV Optional)

  • 2 x stereo speakers for industrial automation system voice output

  • OSD control keys to optimize the display

  • AC 100-240V wide range external ac adapter

  • NEMA4 / IP 65 compliant front panel

  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount

  • Application for HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC, machine tool etc.)

Display

Display Type 17" SXGA TFT LCD
Resolution 1280x1024
Max.color 16.7M
Luminance 300 cd/m2
View Angle 178 °(H) , 178 °(V)
Pixel Pitch 0.264 x 0.264mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0  °C to 50  °C
Storage temperature -20  °C to 60  °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Packing info

Dimensions (WxHxD) 408 x 345 x 47 mm
Weight Net: 8.0kg , Gross:10.5 kg

Tags: Industrial panel monitor, Resistive Touch Screen, 17" LCD Panel, 1280 x 1024, SXGA
