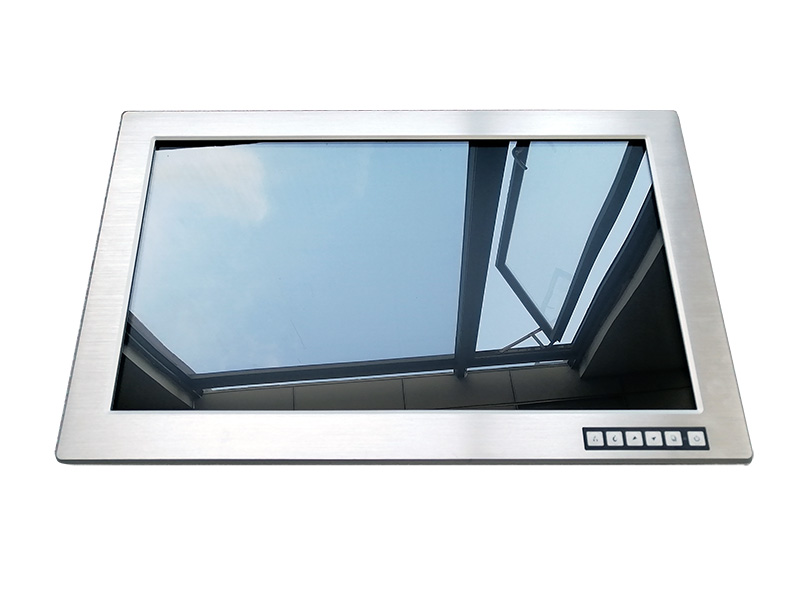

23.6 inch wide screen industrial monitor 16:9 FULL HD TFT LED Panel support 1920x1080 pixels, 400 cd/m2 brightness, with HDMI, touch screen and strengthen glass optional.
Features
23.6" FULL HD TFT LED Panel support 1920x1080 pixels, 400 cd/m2 brightness
6mm Aluminum bezel panel with touch screen/strengthen glass
Rugged construction and modularized design
VGA + DVI/HDMI + Audio Input signal(AV Optional)
2 x stereo speakers for industrial automation system voice output
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter
NEMA4 / IP 65 compliant front panel
Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
Specifications
Display
| Display Type | 23.6" LED FULL HD TFT LCD |
| Resolution | 1920x1080 |
| Max.color | 16.7M |
| Luminance | 400 cd/m2 |
| View Angle | 178 °(H) , 178 °(V) |
| Pixel Pitch | 0.2715 x 0.2715 mm |
| Contrast Ratio | 1000:1 |
| Response Time | 15 ms |
| LCD MTBF | 40,000hrs |
Input Signals
| RGB Signal | D-SUB 15P Connector (female) |
| DC input | 2-Pin Terminal Block |
| HDMI Signal | HDMI connector (female) |
| Touch screen RS232 (option) | D-SUB 9p connector (female) |
| Touch screen USB (option) | USB-A type connector (female) |
Available Options
| Touch screen | Resistive type touch screen with USB controller |
| DC Power Input | Wide Range 9~36v DC input |
Power supply
| Standard | 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter |
| DC-DC Power | DC 9 ~ 36v input power module(optional) |
Environmental
| Construction | Heavy duty steel and aluminum front panel |
| Operate temperature | 0 °C to 50 °C |
| Storage temperature | -20 °C to 60 °C |
| Storage humidity | 10% to 90% non-condensing |
| Anti-Vibration | 17HZ-500 HZ 1G PTP |
| Anti-Shock | 1G / peak( 11m sec) |
Packing info
| Dimensions (WxHxD) | 605 x 380 x 47 mm |
| Weight | Net: 8.0kg , Gross:10.5 kg |
Ordering informations
| IDM-236W | 23.6" Industrial LCD Panel Monitor with VGA + HDMI + Audio input, DC 9~36V Input |
