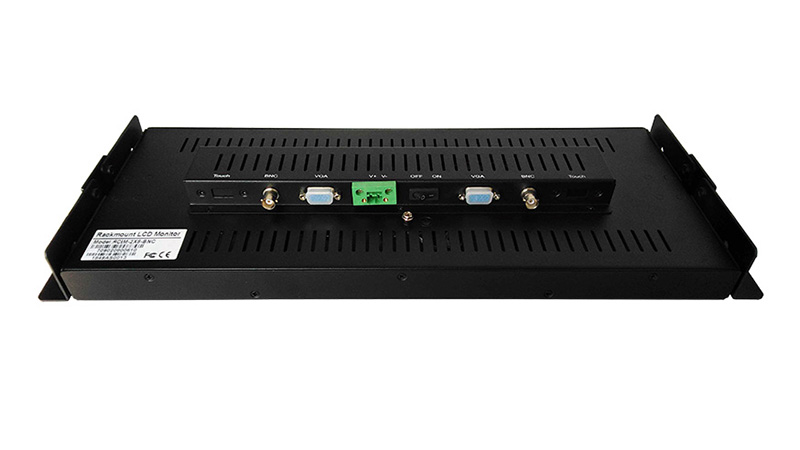

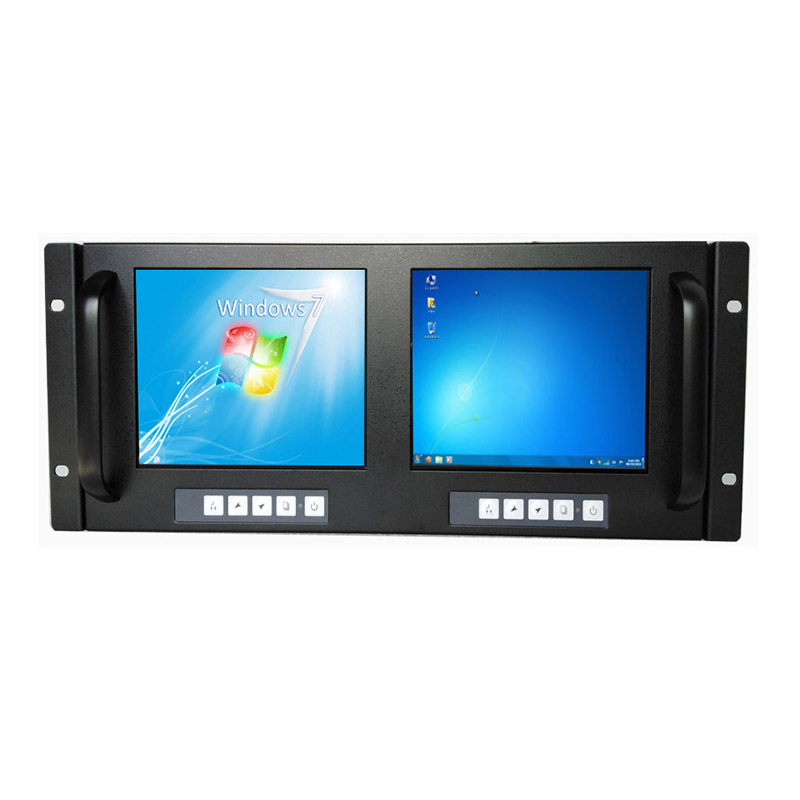

RCIM-2x8-M15

Rackmount LCD monitor with Resistive Touch Screen, 8" LCD Panel, 1024 x 768, XGA, LED Backlight, VGA , HDMI, 4:3

• Touch Screen: Resistive Touch Screen
• Size: 8" LCD Panel
• Resolution: 1024 x 768, XGA
• Backlight Type: LED Backlight
• Signal Interface: VGA , HDMI
• Video Format: 4:3

Datasheet Download

Specifications

Display

Display Type 8" XGA TFT LCD
Resolution 1024x768
Max.color 16.2M
Luminance 300 cd/m2
View Angle 170°(H) , 170°(V)
Pixel Pitch 0.15825 x 0.15825 mm
Contrast Ratio 700 : 1
Response Time 25 ms
LED Life Time 30,000hrs

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0°C to 50°C
Storage temperature -20°C to 60°C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions (WxHxD) 482.6 x 310.3 x 48 mm
Weight Net: 6.2kg , Gross: 9.2 kg

Optional

Input signal
HDMI, AV, S-vedio
DC-DC Power DC 8 ~ 30v input power module
