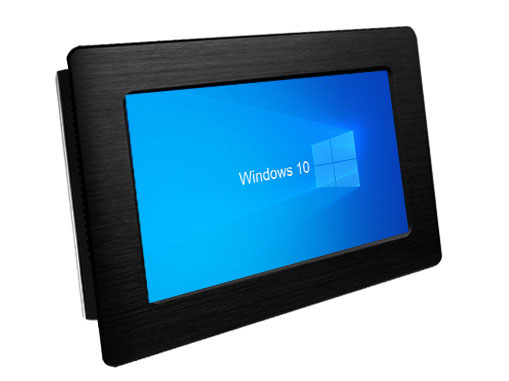

IPC-10WDF-M31

DF series industrial panel pc with Intel Celeron j1900, Resistive Touch Screen, 2G RAM, 128G SSD, 10.1" Wide LCD Panel, 1280 x 800, LED Backlight, 16:10


  • CPU: Intel Celeron j1900
  • Touch Screen: Resistive Touch Screen
  • Ram: 2G RAM
  • SSD: 128G SSD
  • Size: 10.1" Wide LCD Panel
  • Resolution: 1280 x 800
  • Backlight Type: LED Backlight
  • Video Format: 16:10

Specifications

System

Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage SSD 32G(HDD optional)

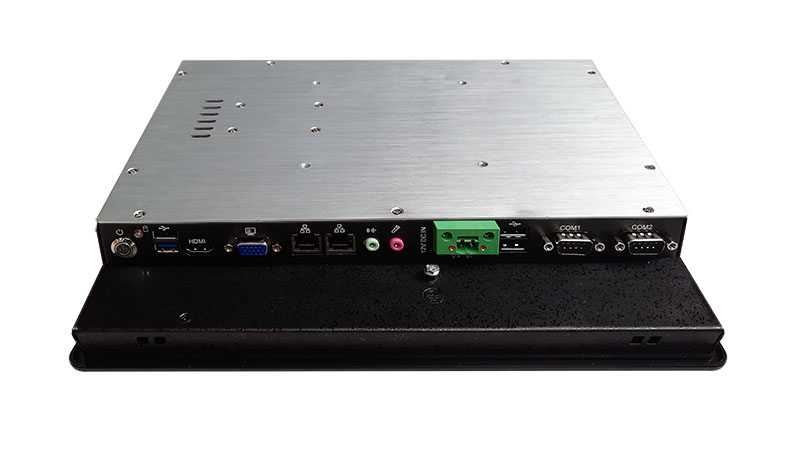

Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA, 1x HDMI
Audio 1x Mic-in  / Line-out
USB Port 3 x USB 2.0, 1x USB3.0
Serial Port 2 x RS-232
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter
Construction Front aluminum bezel(5 mm) and steel chassis

LCD display

Display Type 10.1" WXGA TFT LCD(LED backlight)
Resolution 1280*800
Max.color 16.7M
Luminance 300 cd/m2
View Angle 150°(H) , 135°(V)
Pixel Pitch 0.1692 x 0.1692 mm
Contrast Ratio 300:1
Response Time 8 ms
LCD MTBF 50, 000hrs

Available Options

Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard(WiFI)
DC Power Input Wide Range 9~36v DC input

Environmental

Operate temperature 32 °F~113 °F (0 °C to 50°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Power supply

Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 32W

Packing info

Dimensions (WxHxD) 315  x 225x 44mm
Weight Net: 4.4kg , Gross:6.5 kg
