Features

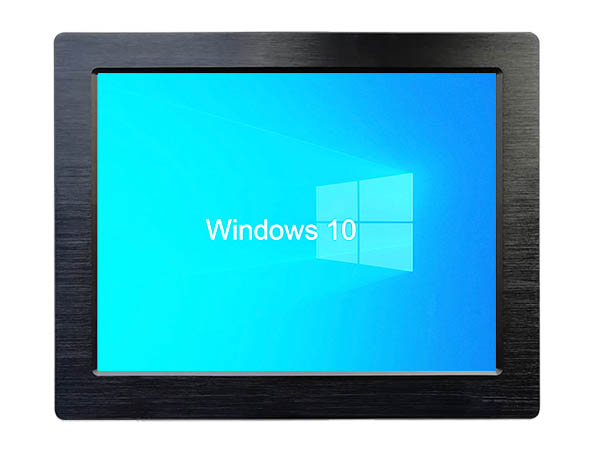

19" SXGA TFT LCD Panel support 1280x1024 pixels
5mm Aluminum front bezel with resitive touch screen
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Windows XP, Win7/Win8/Win10, Linux

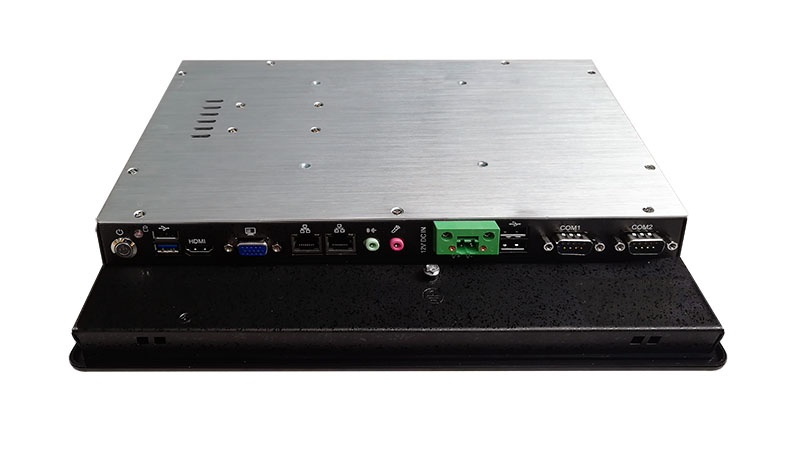

6*COM(5* RS232,1*RS485) , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
1* Mini PCIe slot for wifi optional
Standard DC 12V input (optional Wide range DC 9-36V input)
Panel ( Flush ) mount with clips
Standard VESA 75mm support stand , wall mount and swing arm
Specifications
System
Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage SSD 32G(HDD optional)
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA, 1x HDMI
Audio 1x Mic-in / Line-out
USB Port 3 x USB 2.0, 1x USB3.0
Serial Port 6*COM(5* RS232,1*RS485)
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter
Construction Front aluminum bezel(5 mm) and steel chassis
LCD display
Display Type 19" SXGA TFT LCD(LED backlight)
Resolution 1280*1024
Max.color 16.2M
Luminance 250 cd/m2
View Angle 120°(H) , 100°(V)
Pixel Pitch 0.292 x 0.292 mm
Contrast Ratio 500:1
Response Time 16 ms
LCD MTBF 50, 000hrs
Available Options
Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard(WiFI)
DC Power Input Wide Range 9~36v DC input
Environmental
Operate temperature 32 °F~113 °F (0 °C to 50°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Power supply
Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 32W
Packing info
Dimensions (WxHxD) 446 x 371x 50mm
Weight Net: 7.0kg , Gross:9.5 kg
Panel pc, 19 inch industrial pc
Tags: DF series industrial panel pc, Intel Celeron j1900, Resistive Touch Screen, 4G RAM
