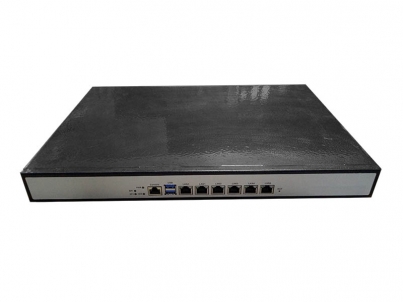

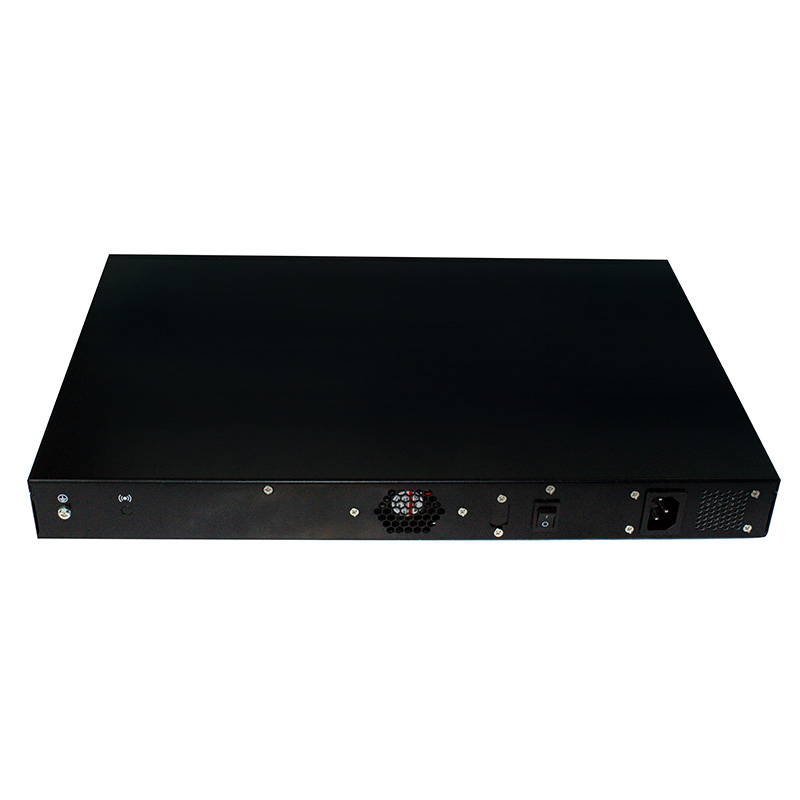

1u Rackmount network Appliance with 6 GbE network ports

Model NO. F19611

Customization OEM accepted

Datasheet (PDF) [3] Images

Network Appliance
Network Appliance

Rackmount Network Appliance
Rackmount Network Appliance

1u Network Appliance
1u Network Appliance

Rackmount 1U network Appliance,onboard J1900 CPU, 6 or 10 RJ-45 GbE network ports, one SATA and one mSATA interface, single or redundant power supply

Features
  • Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
  • One 204-pin DDR3-L DIMM slots, up to 8 GB
  • Six Intel PCIe GbE controllers, support two channels bypass
  • One SATA  interface and one mSATA interface
  • Two USB3.0, One CF TypeII
  • One RJ45 for RS232 communication
  • Optional one nic module adding 4 GbE network ports
Specifications
Motherboard
  • CPU Onboard Intel Bay Trial J1900 Quad-core CPU
  • System memory One 204-pin DDR3-L DIMM slots, up to 8GB
Storage
  • Interface One SATA and one mSATA connectors
  • Hard Drive One  3.5/2.5" HDD trays
  • CF slot One CFII slot
Ethernet
  • LAN Port Six 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Six Intel PCIe GbE controllers
  • BYPASS 2 channels BYPASS
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Reset Button One built-in reset button
  • Indicator One Power LED, one HDD LED
  • Video Built-in one VGA interface, support hot plug(Internal)
Power supply
  • Power consumption Built-in 60W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 430x295x44.5mm
  • Weight 9.6 kg
Ordering informations
  • F19611-B2 1u rackmount chassis, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 60W PSU
  • F19611-B2P2 1u rackmount chassis, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 70W redundant PSU
Optional Nic Modules
  • 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F4 4 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
