2U network appliance max 14 GbE networking ports single or redundant power supply
2U network appliance max 14 GbE networking ports single or redundant power supply
Model NO. F23621
Customization OEM accepted
CPU Optional
Datasheet (PDF)
[2] Images

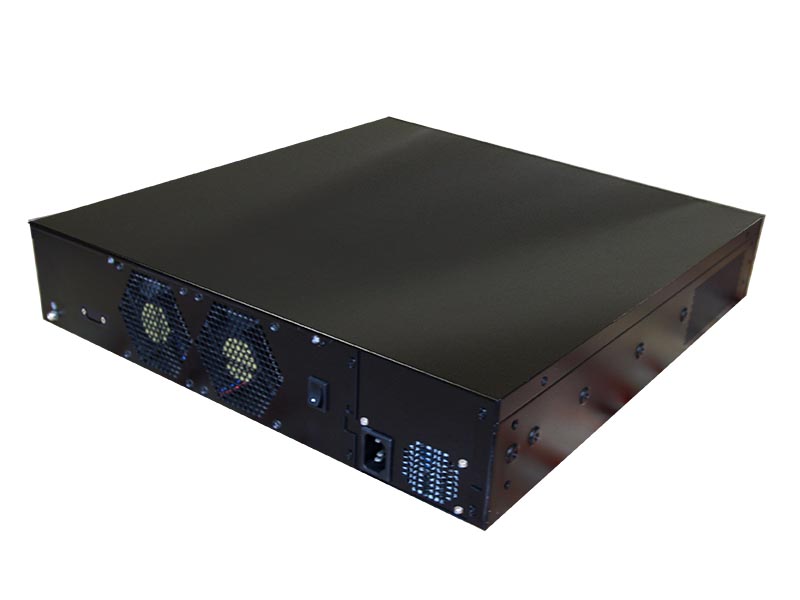

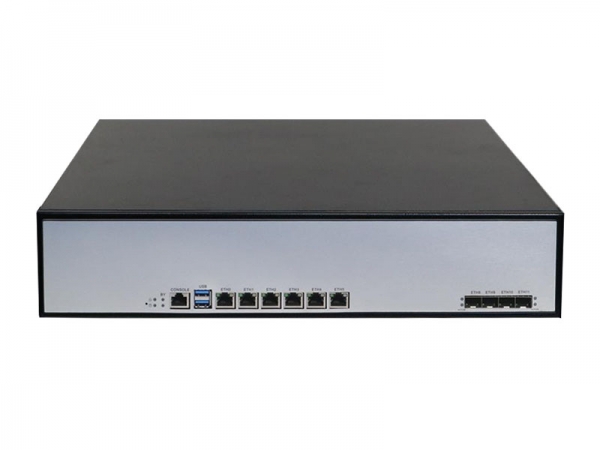

Network Appliance Max 14 Networking Ports
Network Appliance Max 14 Networking Ports
Features
Supports Intel Gen6/Gen7 Xeon E3-1200, i3/i5/i7 Core, Pentium processor
Intel C236 chipset
Two 2133/2400MHz DDR4 slots, up to 64GB
Six Intel PCIe GbE controllers, support two channels bypass
Three SATA3.0 6Gb/s interface
Supports USB3.0, mSATA, COM
Specifications
Motherboard
CPU
Supports Intel Gen6/Gen7 Xeon E3-1200 i3/i5/i7 Core, Pentium processor
Chipset
Intel C236
System memory
Two 2133/2400MHz DDR4 slots, up to 64GB
Storage
Interface
Three SATA3.0 connectors and one mSATA slot
Hard Drive
Supports four 3.5/2.5" HDD trays
Ethernet
LAN Port
Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller
Six Intel PCIe GbE controllers
BYPASS
Optional 2 channels BYPASS
Indicator
Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
USB
Two USB3.0
COM
One RJ-45 COM
Indicator
One Power LED, one HDD LED
LCM module
Optional 2x16 characters LCM display module
Video
Built-in one VGA interface, support hot plug(Internal)
Expansion
One PCIex16
Power supply
Power consumption
Built-in 250W power supply
Power input
100 ~ 240V AC input
Optional
DC power or Redundant power
Environmental
Mounting
Supports rack-mounting or desktop-mounting
Operate Temperature
-10°C ~ 50°C
Storage Temperature
-20°C ~ 75°C
Operate Humidity
5% ~ 85% non-condensing @ 40°C
Storage Humidity
5% ~ 95% non-condensing
Mechanical
Chassis Color
Black or OEM
Front panel
Silver PVC/Aluminum font panel(OEM/Neutral)
Construction
2u chassis, Heavy duty metal
Dimensions (D x W x H)
500x440x88mm
Weight
16.6 kg
Ordering informations
F23621-B2
2u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
F23621-B2P2
2u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W redundant PSU
Optional NIC modules
58N4
4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F4
4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
58NF2
2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
58N8
8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F8
8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
58B2
2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
59W2
2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
59B2
2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
71W4
4 10G SFP based on Intel XL710 controllers
