F58224

F58224

Rackmoun Network security appliance supprts Intel LGA 1200 socket CPU

Country of Origin: China
Customization OEM accepted

CPU Optional Datasheet (PDF) [2] Images

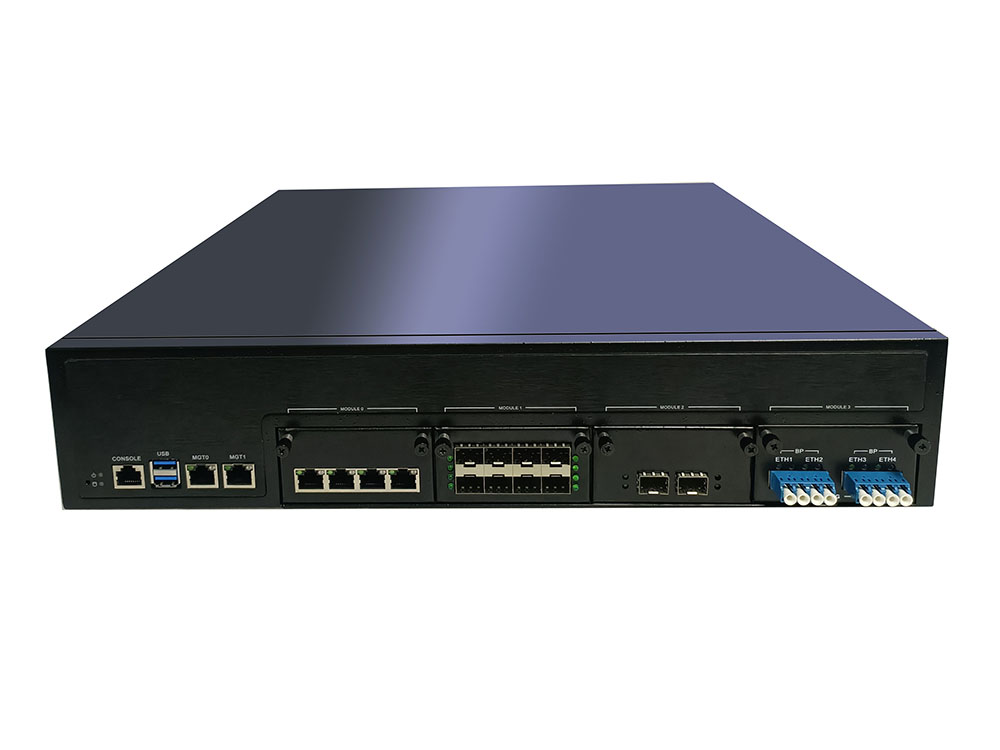

Rackmount Network Appliance Built With Intel Xeon E Or Core I3 Or Pentium Or Celeron Processor
Rackmount Network Appliance Built With Intel Xeon E Or Core I3 Or Pentium Or Celeron Processor

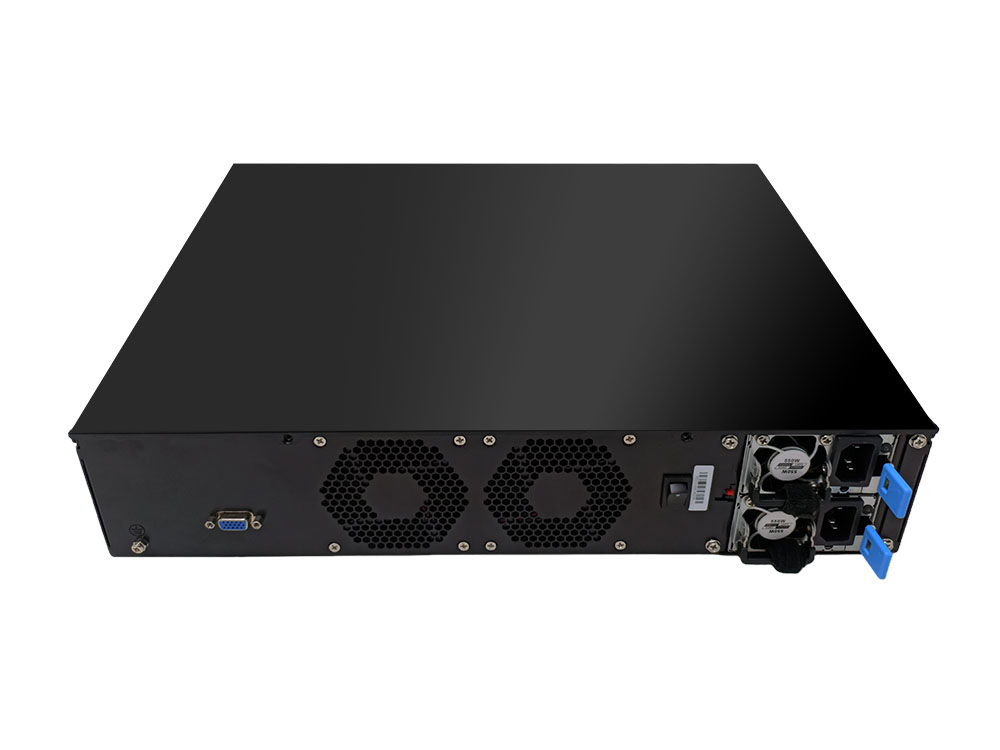

Rackmount Network Appliance Built with Intel Xeon E or Core i3 or Pentium or Celeron Processor [Photo.2]
Rackmount Network Appliance Built with Intel Xeon E or Core i3 or Pentium or Celeron Processor [Photo.2]

The F58224 is a rackmount network security appliance that can be customized with Intel® Xeon® E or Core™ i3 or Pentium® or Celeron® and Intel® C246 chipset, comes with  high performance and flexibale extensions in LAN ports, NIC expansion, storage and management, delivering exellent networking capacity for network traffic security, cloud computing and data centers.

Features
  • Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
  • Intel W580 chipset(Rocket Lake family)
  • Four 288pin 2933/3200MHz DDR4 slots, up to 128GB
  • Two Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass
  • Four extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces
  • Supports SATA3.0, mSATA, M.2 multiple storages options
  • Front USB3.0,Console interface and LED indicators
Specifications
Motherboard
  • CPU   Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
  • Chipset   Intel W580
  • System memory   Four DDR4 slots, up to 128GB
Storage
  • Interface   Two SATA3.0 connectors, one mSATA and one M.2 slot
  • Hard Drive   Supports two 3.5/2.5" HDD tray
Ethernet
  • LAN Port Two 2.5G RJ-45 ports
  • Ethernet Chip Intel® Ethernet Controller I225-V
  • Extension ports Max 32 ports, extending by NMC slots
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Indicator One Power LED, one HDD LED
  • Video Built-in one VGA interface, support hot plug(Internal)
  • NMC slots Four NMC slots for extension NIC
  • Expansion PCIEx8 slots
Power supply
  • Power consumption 250W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel PVC (OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 500x440x88 mm
  • Weight 11.9 kg
Ordering informations
  • F58224 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 250W PSU
  • F58224-P2 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 550W redundant PSU
Optional NIC modules
  • 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
  • 35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
  • 35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
  • 35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
  • 35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
  • 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
  • 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
  • 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
  • 71W4 4 10G SFP based on Intel XL710 controllers
  • 71B4 4 10G SFP based on Intel XL710 controllers, supports two channel optial bypass
