Mini size Industrial PC with Intel Celeron J4125 CPU 2x COM 4x 2.5G LAN

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Mini Size Industrial PC

Mini Size PC

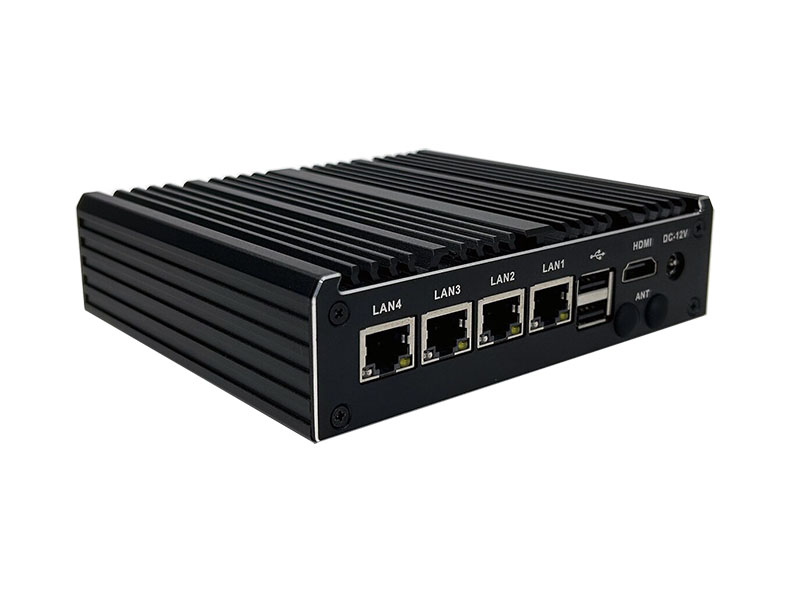

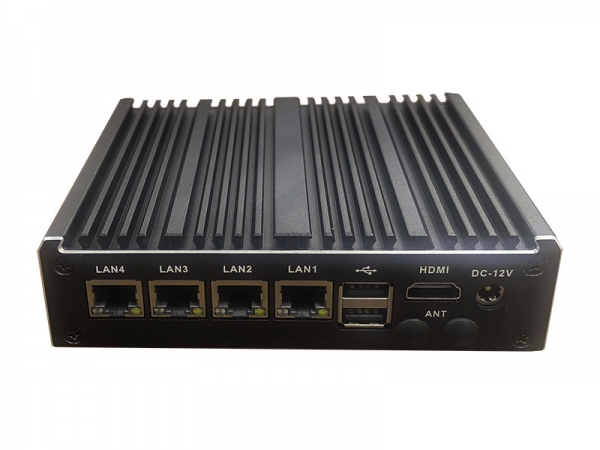

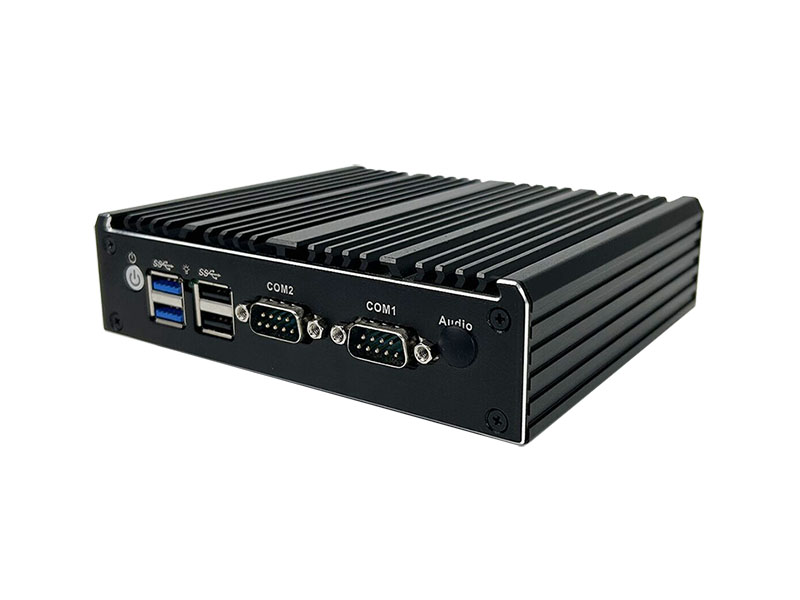

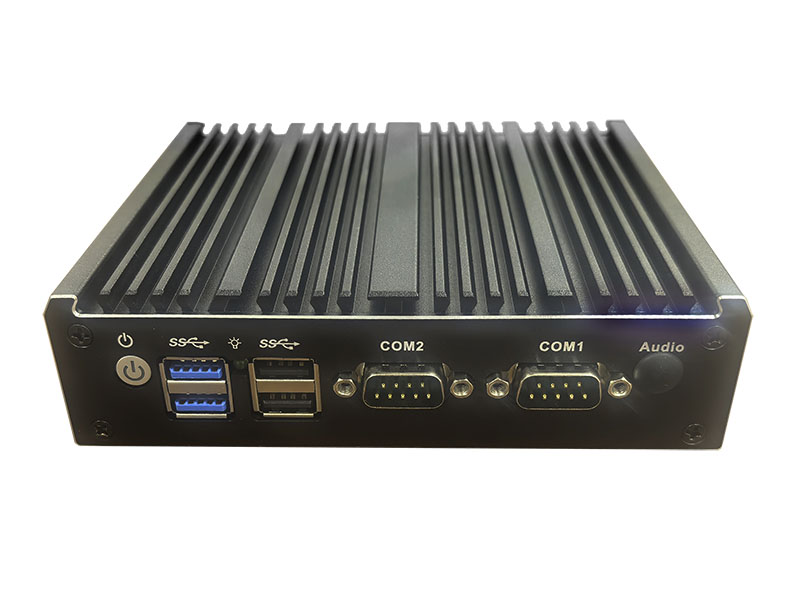

Mini size Industrial PC, dimensions 127x145x37 mm, Fanless design, Intel Celeron J4125 CPU, 2x COM, 4x 2.5G LAN, 1x HDMI(Opional add 1x DP), 6 USB, 1x Audio.

Features

Intel Celeron J4125 quad-core processor
4x intel i226 2.5G controllers
2x COM(RS-232), COM1 can switch to RS-485 signal
1x HDMI (HDMI1.4), Optional to add one DP signal
2x USB3.0, 4x USB2.0
1x Audio (Line out and MIC two-in-one interface)
1x DDR4 2400MHz so-DIMM slot, up to 16GB
1x SATA, 1x mSATA
1x WiFi or 4G module
DC 12-19 V power supply
Supports Win10/Linux
Supports industrial-application environment

Specifications

Motherboard

CPU Intel Celeron J4125 quad-core processor
BIOS 64Mb Flash ROM
System memory DDR4 2400MHz so-DIMM slot, MAX 16GB RAM

Storage

SATA One SATA3 6Gb/s socket
MSATA One mSATA3 socket
CF slot None

Ethernet

LAN Port Four RJ-45 ports
Ethernet Controller Four Intel i226 2.5G network Controllers

System I/O

Display one HDMI
USB Two USB3.0, Four USB2.0
COM Two COM(COM1 RS232,COM2 RS232/RS485)
Audio One Line out and MIC two-in-one jack
Power switch One switch with Led
Indicator One HDD Led
Expansion 1* Mini-PCIe

Power supply

Power consumption DC 12 External power adapter
Power input 100 ~ 240V full range AC input

Environmental

Operate Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Operate Humidity 5% ~ 85% non-condensing
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black
Construction Aluminum extrusion chassis

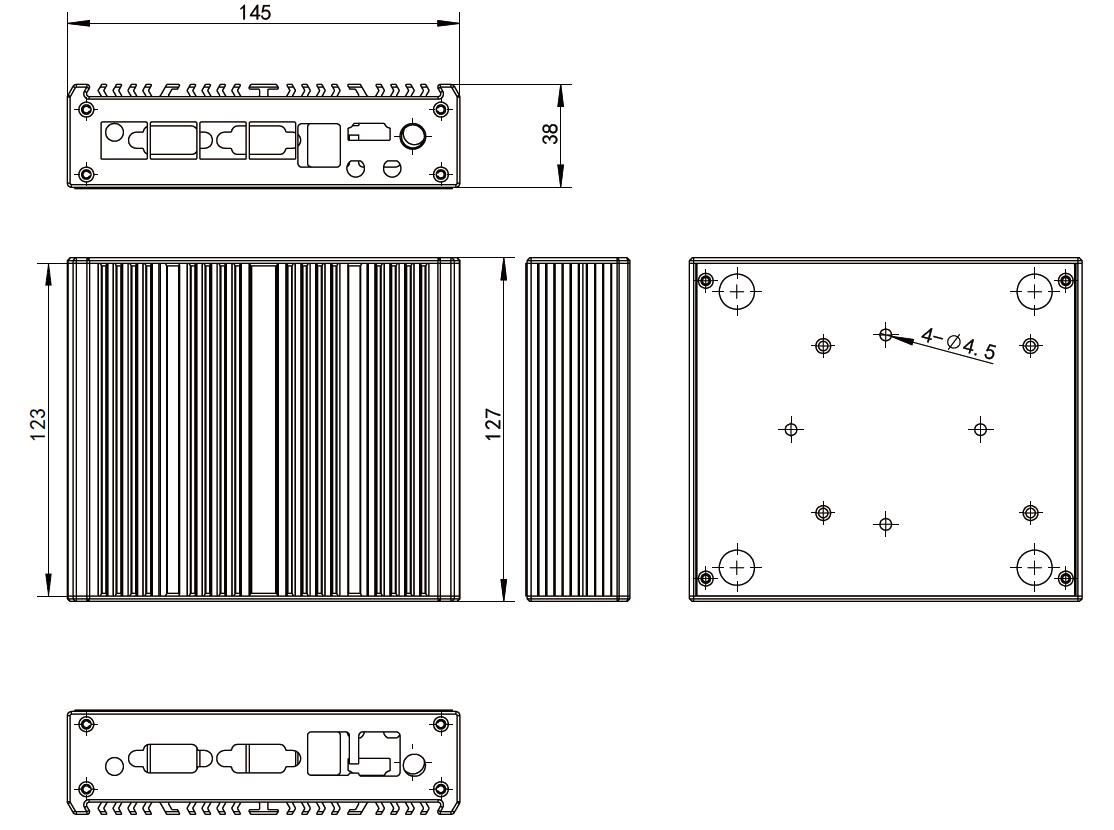

Dimensions (D x W x H) 127x145x37 mm
Weight 1.5 kg

Ordering informations

MPC-J4124 Industrial Mini PC, Aluminum extrusion chassis, Intel Celeron J4125 CPU, 2x COM, 4x GbE LAN, 1x HDMI, 6 USB, 1x Audio, DC 12V input
MPC-J4124D Industrial Mini PC, Aluminum extrusion chassis, Intel Celeron J4125 CPU, 2x COM, 4x GbE LAN, 1x HDMI, 1x DP, 6 USB, 1x Audio, DC 12 input
