Hardware Firewall Platform with 6 RJ45 GbE and 4 SFP Gigabit network ports

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Hardware Firewall
Hardware Firewall

Firewall Platform
Firewall Platform

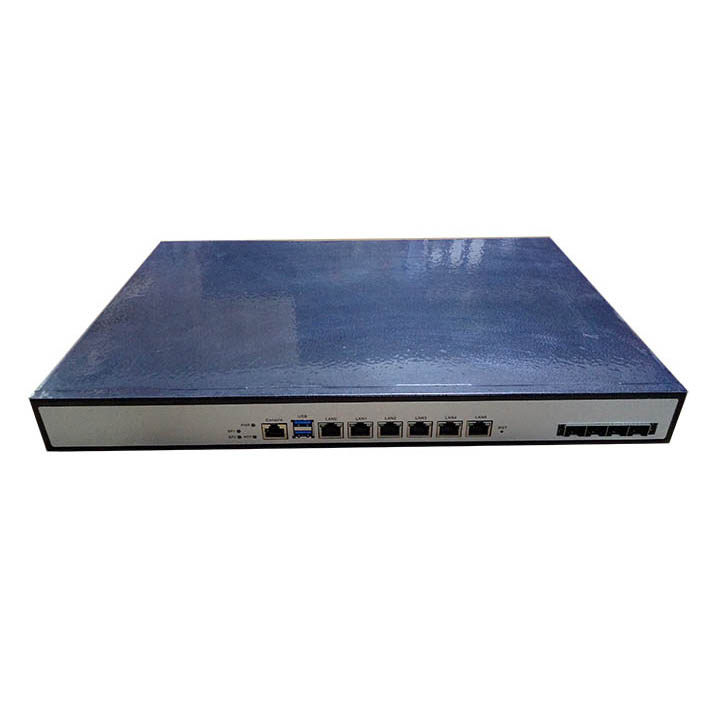

Hardware Firewall, Rackmount 1U network Appliance firewall hardware platform wiht onboard J1900 CPU, 6 RJ-45. support add 4 SFP GbE network ports, one SATA and one mSATA interface, 1* PCIEx4, CF slot, single or redundant power supply.

  • Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
  • One 204-pin DDR3-L DIMM slots, up to 8 GB
  • Six Intel PCIe GbE controllers, support two channels bypass
  • One SATA  interface and one mSATA interface
  • Two USB3.0, One CF TypeII
  • One RJ45 for RS232 communication
  • Optional one nic module adding 4 GbE network ports


Chassis ColorBlack or OEM
Front panelSilver PVC/Aluminum font panel(OEM/Neutral)
Construction1u chassis, Heavy duty metal
Dimensions (D x W x H)430x295x44.5mm
Weight9.6 kg
