industrial monitor


10.4 inch LCD 1024x768 panel industrial touch screen monitor

Country of Origin: China
Customization OEM accepted

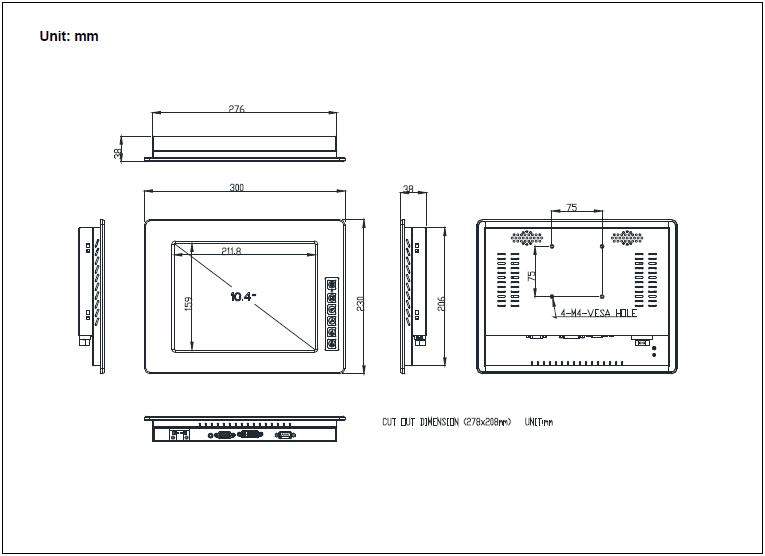

Datasheet (PDF) Dimensions Drawing [3] Images

Industrial Monitor
Industrial Monitor

Touch Screen Monitor With HDMI
Touch Screen Monitor With HDMI

Touch Panel Monitor
Touch Panel Monitor

  • 10.4" XGA TFT LCD Panel support 800 x 600/ 1024 x 768 pixels,400 cd/m2 brightness
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design

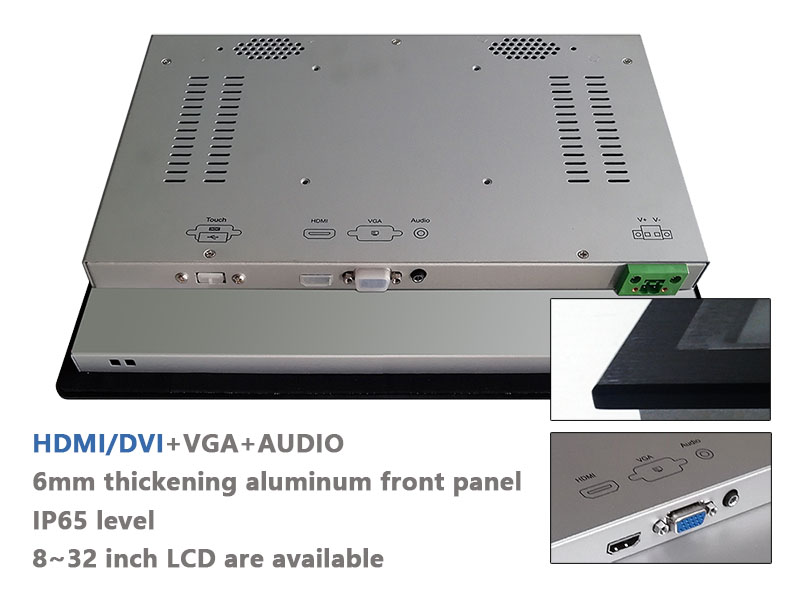

  • VGA + HDMI or DVI + Audio Input signal
  • 2 x stereo speakers is optional for industrial automation system voice output
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100 mm) supports desktop stand / wall mount/ swing arm mount
  • Application for HMI, Automation system,, M2M, Control device, Heavy Manufacturing Equipment(CNC, machine tool etc.)
Display Type 10.4" XGA TFT LCD(LED backlight)
Resolution 800 x 600/ 1024 x 768
Max.color 16.2M
Luminance 400 cd/m2
View Angle 160°(H) , 140°(V)
Pixel Pitch 0.264 x 0.264 mm
Contrast Ratio 500:1
Response Time 40 ms
LCD MTBF 50,000hrs

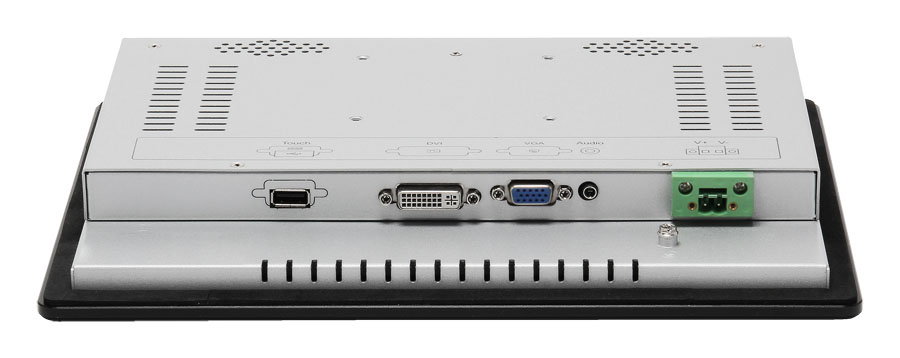

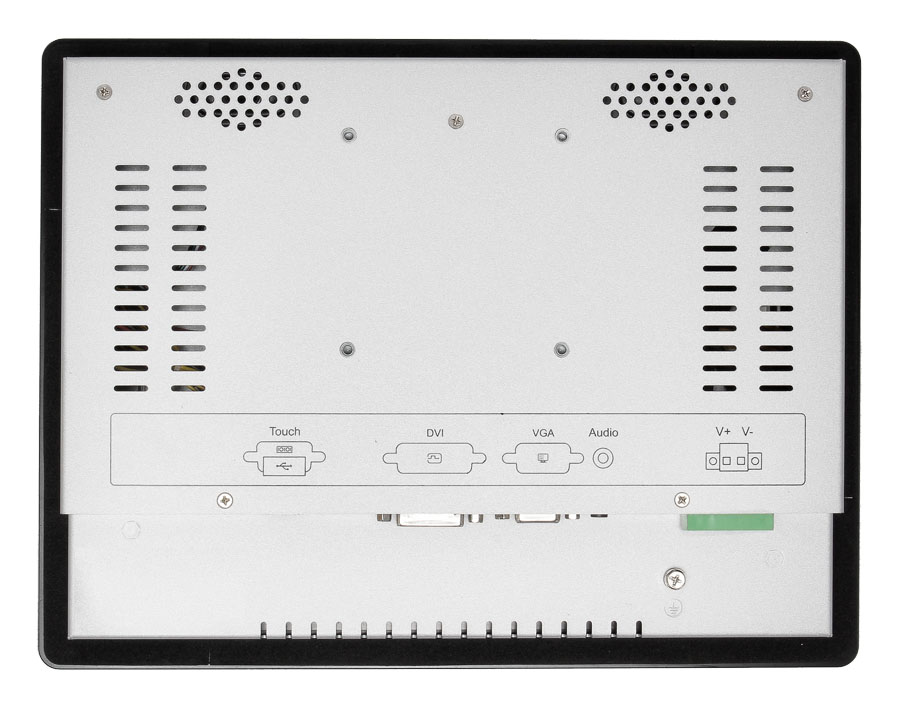

Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) No
S-Video signal (option) No
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input No
Power supply
Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Construction Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info
Dimensions (WxHxD) 300 x 230 x 38 mm
Weight Net: 3.5kg , Gross:5.0 kg
Ordering informations
IDM-10 10.4" LCD Industrial Panel Mount Monitor with VGA + HDMI or DVI + Audio Input
IDM-10TC 10.4" LCD Industrial Panel Monitor with VGA + HDMI or DVI + Audio Input, with touch screen and RS232 controller
IDM-10TU 10.4" Industrial Monitor with VGA + HDMI or DVI + Audio Input, with touch screen and USB controller
