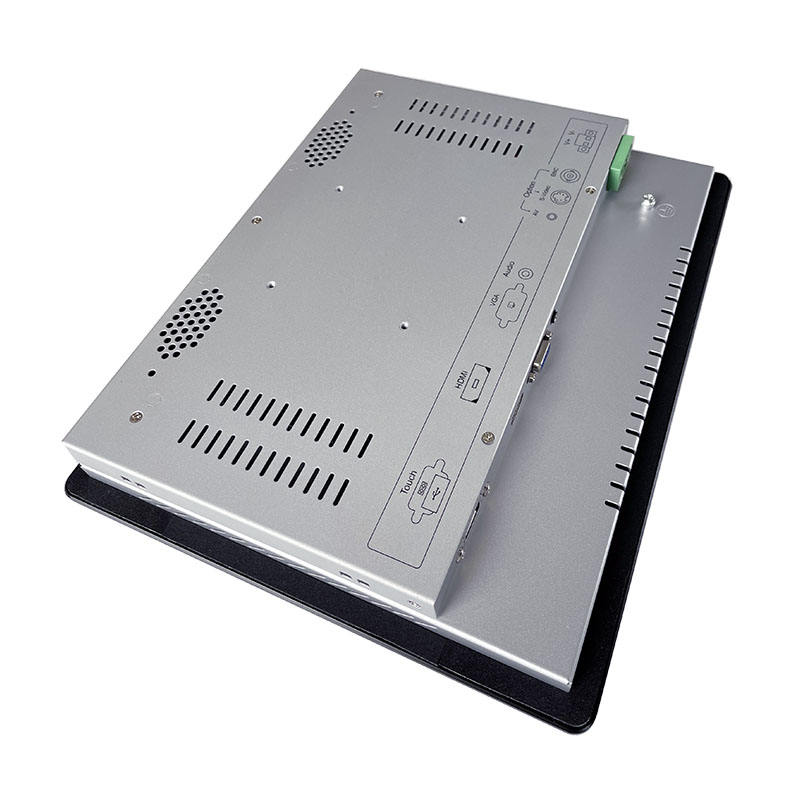

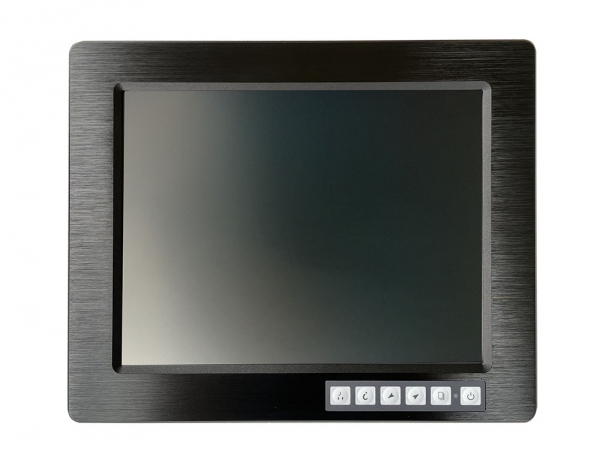

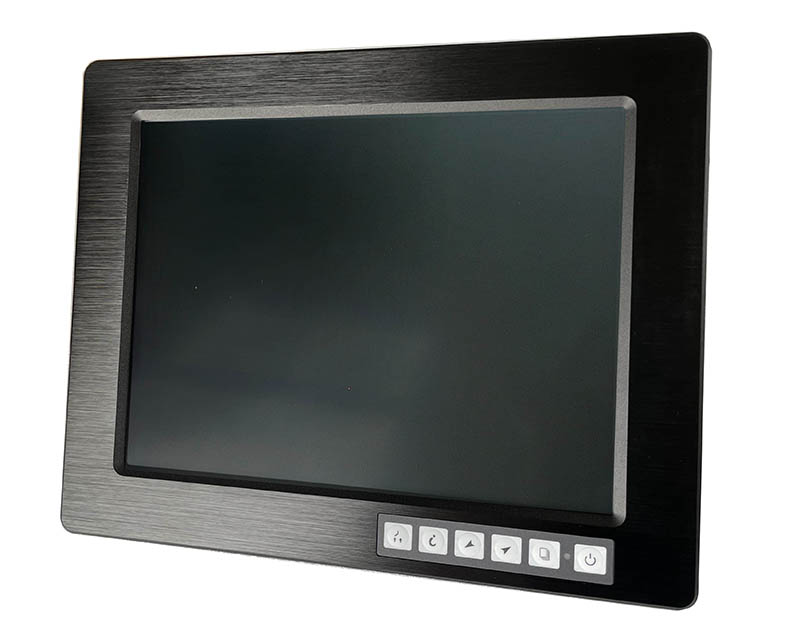

industrial monitor

IDM-12

12.1 inches touch screen lcd industrial panel monitor

Country of Origin: China
Customization OEM accepted

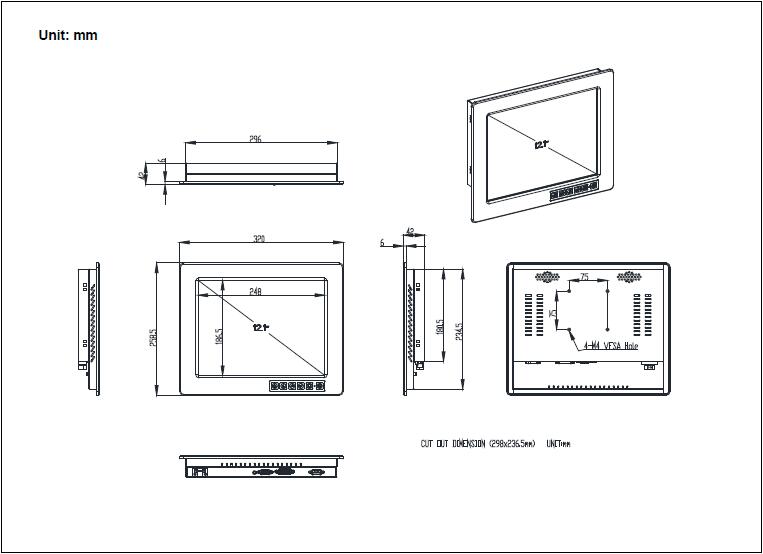

Datasheet (PDF) Dimensions Drawing [4] Images

Industrial Monitor
Industrial Monitor

Industrial Lcd Monitor With HDMI
Industrial Lcd Monitor With HDMI

12.1inch Touch Panel Monitor
12.1inch Touch Panel Monitor

12.1 Inch Touch Screen Monitor
12.1 Inch Touch Screen Monitor

Features
  • 12.1" XGA TFT LCD Panel support 1024x768/800x600 pixels
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • HDMI/DVI + VGA + Audio Input signal(AV Optional)
  • 2 x stereo speakers for industrial automation system voice output
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
  • Application for Automation control, M2M, Heavy Manufacturing Equipment,CNC, machine tool,HMI, Kiosk etc.
Specifications
Display
Display Type 12.1" SXGA TFT LCD
Resolution 1024 x 768/ 800 x 600
Max.color 16.2M
Luminance 450 cd/m2
View Angle 140°(H) , 110°(V)
Pixel Pitch 0.3075 x 0.3075 mm
Contrast Ratio 500:1
Response Time 35 ms
LCD MTBF 50,000hrs
Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input
Power supply
Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
Construction Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info
Dimensions (WxHxD) 320 x 258.5 x 42 mm
Weight Net: 4.5kg , Gross:6.0 kg
Ordering informations
IDM-12 12.1" Industrial LCD Panel Monitor with VGA + DVI/ HDMI + Audio Input
IDM-12TC 12.1" LCD Industrial Panel Monitor with VGA + HDMI/ DVI + Audio Input, with touch screen and RS232 controller
IDM-12TU 12.1" Industrial Panel Mount Monitor with VGA + DVI/ HDMI + Audio Input, with touch screen and USB controller
IDM-12A 12.1" Industrial LCD Monitor with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input
IDM-12ATC 12.1" Industrial Panel Mount Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller
IDM-12ATU 12.1" Industrial Monitor with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller
