industrial panel monitor

IDM-19

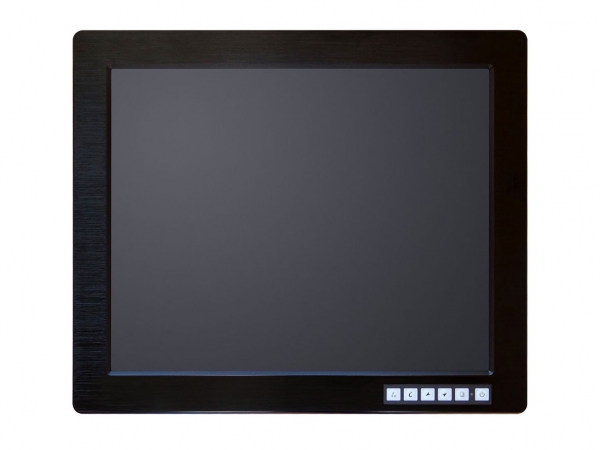

19 inch LCD touch screen industrial panel monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

Industrial Panel Monitor
Industrial Panel Monitor

Industrial Panel Mount Monitor
Industrial Panel Mount Monitor

19 Inch Industrial Touch Screen Monitor
19 Inch Industrial Touch Screen Monitor

19 Inch Industrial Monitor
19 Inch Industrial Monitor

Features
  • 19" SXGA TFT LCD Panel support 1280 x 1024 pixels,300 cd/m2 brightness
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • HDMI/DVI + VGA + Audio Input signal(AV Optional)
  • 2 x stereo speakers for industrial automation system voice output
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
  • Application for HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC, machine tool etc.)
Specifications
Display
Display Type 19" SXGA TFT LCD
Resolution 1280x1024
Max.color 16.7M
Luminance 300 cd/m2
View Angle 160°(H) , 160°(V)
Pixel Pitch 0.294 x 0.294mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs
Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input
Power supply
Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
Construction Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info
Dimensions (WxHxD) 450 x 375 x 47 mm
Weight Net: 9.0kg , Gross:11.5 kg
Ordering informations
IDM-19 19" LCD Industrial Panel Monitor with VGA + HDMI/ DVI + Audio Input
IDM-19TC 19" LCD Industrial Monitor with VGA + HDMI/ DVI + Audio Input, with touch screen and RS232 controller
IDM-19TU 19" LCD Industrial Panel Mount Monitor with VGA + HDMI/ DVI + Audio Input, with touch screen and USB controller
IDM-19A 19" Panel Mount Industrial LCD Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input
IDM-19ATC 19" Panel Mount Industrial LCD Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller
IDM-19ATU 19" Flat Panel Industrial LCD Monitor with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller
