- Industrial Monitor with Touchscreen

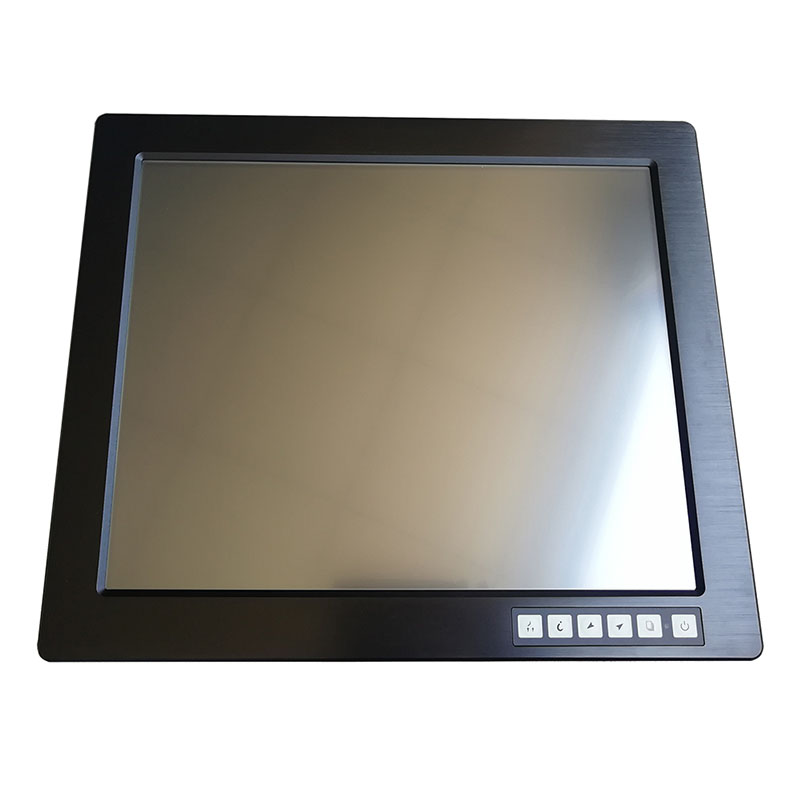

- 17 inch industrial touch screen monitor
Industrial Lcd Monitor
Industrial Monitor
17 Inch Touch Screen Monitor
Industrial Panel Mount Monitor
Features
- 17" SXGA TFT LCD Panel support 1280 x 1024 pixels,300 cd/m2 brightness

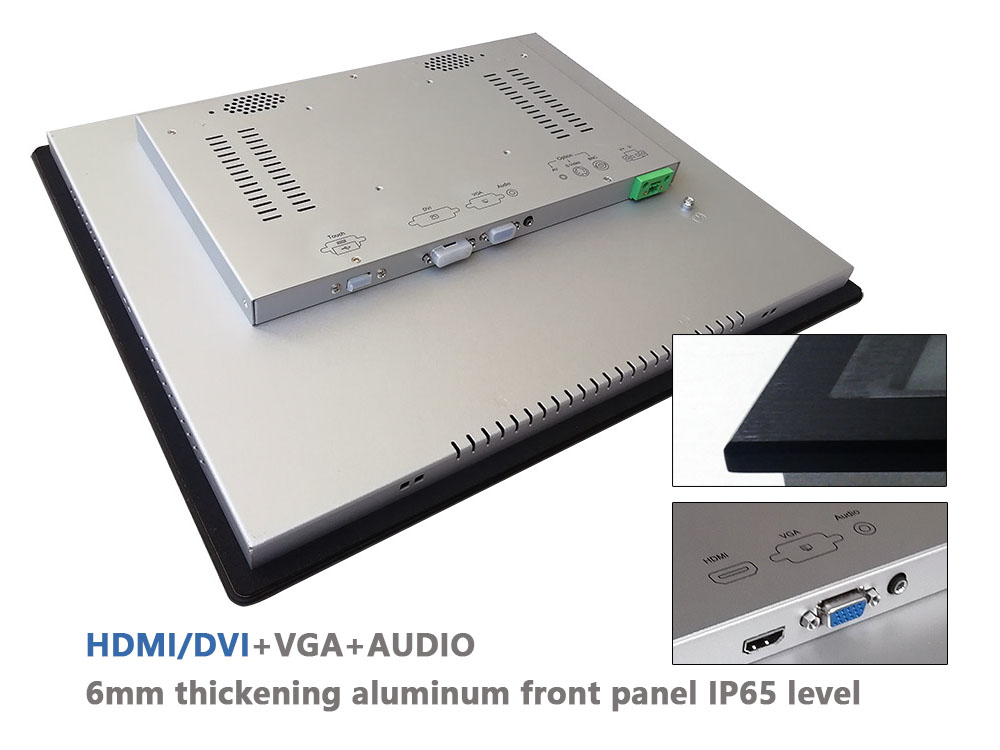

- 6mm Aluminum bezel panel with touch screen/strengthen glass
- Rugged construction and modularized design
- VGA + DVI or HDMI + Audio Input signal(AV and Other Optional)
- 2 x stereo speakers for industrial automation system voice output
- OSD control keys to optimize the display
- AC 100-240V wide range external ac adapter
- NEMA4 / IP 65 compliant front panel
- Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
- Application for HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC, machine tool etc.)
Specifications
Display
- Display Type 17" SXGA TFT LCD
- Resolution 1280x1024
- Max.color 16.7M
- Luminance 300 cd/m2
- View Angle 178°(H) , 178°(V)
- Pixel Pitch 0.264 x 0.264mm
- Contrast Ratio 1000:1
- Response Time 5 ms
- LCD MTBF 50,000hrs
Input Signals
- RGB Signal D-SUB 15P Connector (female)
- DC input DC Jack (2.1mm)
- Video Input (option) RCA Connector
- S-Video signal (option) S-Video (SVHS)plug
- DVI-D Signal DVI-D input 24pin connector (female)
- Touch screen RS232 (option) D-SUB 9p connector (female)
- Touch screen USB (option) USB-A type connector (female)
Available Options
- Touch screen Resistive Type with USB and RS232 controller
- DC Power Input Wide Range 8~30v DC input
- AV input Composite Video/Audio, S-Video Input
Power supply
- Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
- DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
- Construction Heavy duty steel and aluminum front panel
- Operate temperature -10°C~ 60°C (-14~140°F)
- Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
- Storage humidity 5% to 95% non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
Packing info

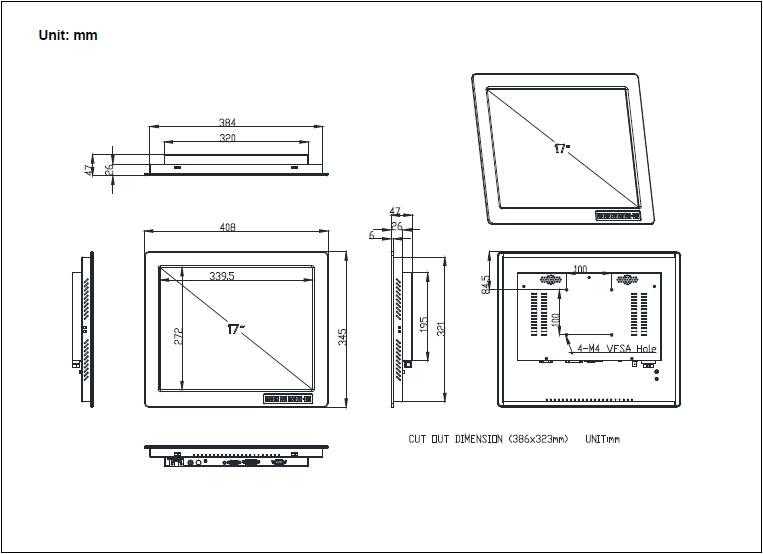

- Dimensions (WxHxD) 408 x 345 x 47 mm
- Weight Net: 8.0kg , Gross:10.5 kg
Ordering informations

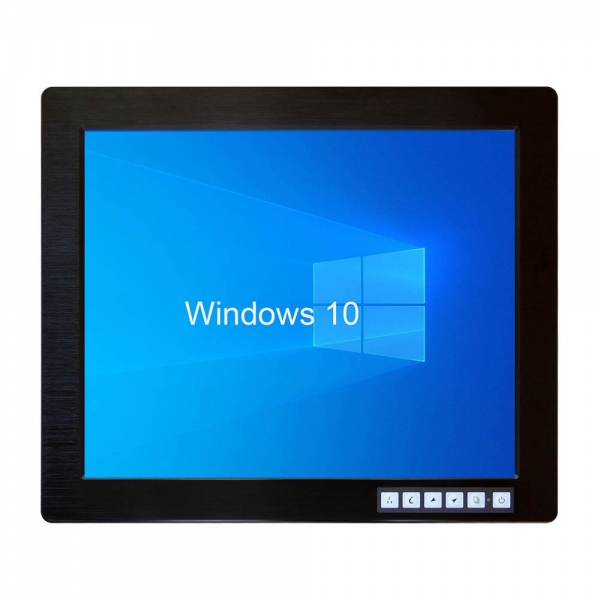

- IDM-17 17" Industrial Panel Monitor with VGA + HDMI/ DVI + Audio Input
- IDM-17TC 17" Industrial Panel Mount Monitor with VGA + DVI or HDMI + Audio Input, with touch screen and RS232 controller
- IDM-17TU 17" Industrial Panel Mount Monitor with VGA + HDMI or DVI + Audio Input, with touch screen and USB controller
- IDM-17A 17" IndustrialMonitor with VGA + HDMI or DVI + Audio + S-Video + Video Input or BNC input
- IDM-17ATC 17" Industrial Panel Mount Monitor with VGA + HDMI or DVI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller
- IDM-17ATU 17" Industrial Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller
