- 17 inch LCD industrial panel pc with touch screen
IPC-17D

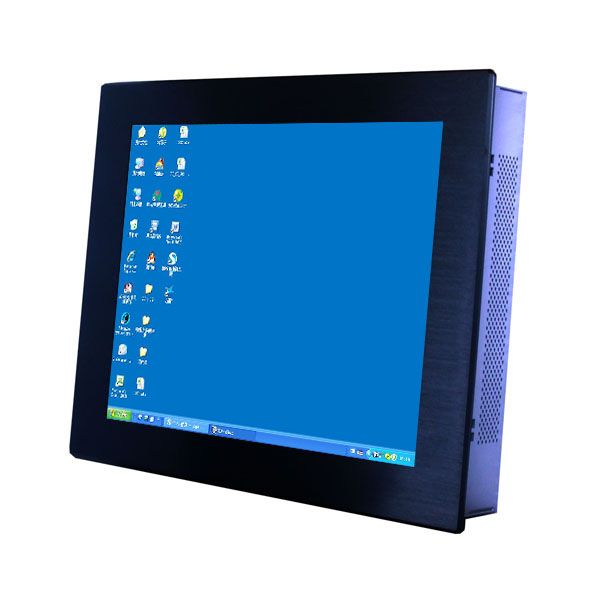

17 inch LCD industrial panel pc with touch screen
Country of Origin: China
Customization OEM accepted
Datasheet (PDF)
[2] Images
Industrial Panel PC
Touch Screen Industrial Panel PC
Features
- 17" SXGA TFT LCD Panel support 1280 x 1024 pixels
- Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
- Front 6mm aluminum bezel with IP65 compliant
- Front hardness glass protect screen ( touch option )

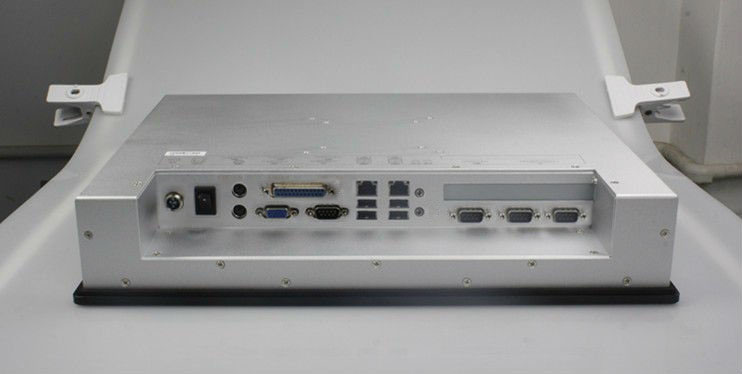

- 4* COM, 1* LPT, 2 * PS/2, 1 * VGA, 4 * USB, 2* GLAN, 1* AUDIO, 1* MIC
- 1 x Mini PCIe and 1 x PCI
- Wireless LAN with antenna (option)
- Panel ( Flush ) mount with clips
- Standard VESA 75mm support stand , wall mount and swing arm mounting
Specifications
System
- Processor Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU
with 667 MHz FSB - Chipset Intel NM10
- Memory DDR3 2G RAM
- Dispay Intel GMA3150 chipset
- Storage 2.5" HDD SATA 320G
- Ethernet 2 x 100/1000 LAN ports
- VGA port 1 x VGA Connector
- KB & Mouse 1 x PS2 port
- Audio Realtek ALC662, 5.1 channel surround audio
- USB Port 4 x USB 2.0
- Serial Port 4 x RS-232, COM2, RS232/RS422/RS485
- Power switch 1 x power switch
- Expansive Slot 1 x Mini PCIe and 1 x PCI
- Power supply 1 x DC input connector
- Construction Front aluminum bezel and steel chassis
LCD display
- Display Type 17" XGA TFT LCD
- Resolution 1280 x 1024
- Max.color 16.2M
- Luminance 300 cd/m2
- View Angle 150°(H) , 135°(V)
- Pixel Pitch 0.297 x 0.297 mm
- Contrast Ratio 700:1
- Response Time 8 ms
- LCD MTBF 50, 000hrs
Available Options
- Touch screen Resistive type touch screen
- Wireless LAN Meet IEEE802.11b/g standard
- DC Power Input Wide Range 8~28v DC input
Power supply
- Input 100~240VAC , 50/60Hz
- Output DC12V@ 10A / 120W , external ac adapter with lockable connector
Environmental
- Operate temperature 32°F~125°F (0°C to 50°C)
- Storage temperature -4°F~140°F (-20°C to 60°C)
- Storage humidity 10% to 90% non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
- Approvals CE/ROHS
Packing info
- Dimensions (WxHxD) 432X346X80.6 mm
- Weight Net: 8kg , Gross:11 kg
Ordering informations
- IPC-17D 17" All in one industrial panel PC with Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD
- IPC-17DT 17" All in one touch screen industrial panel PC with Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD, with Resistive Touch Screen
