Industrial panel PC


Industrial panel pc with 15 inch LCD and Touch screen

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Industrial Panel PC
Industrial Panel PC

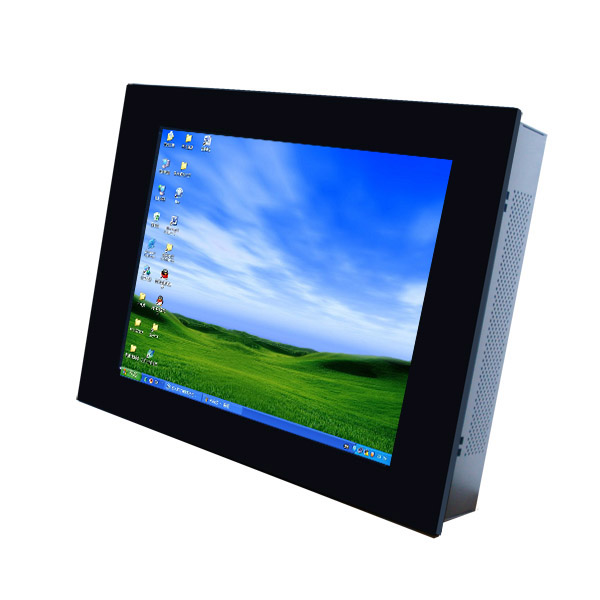

15 Inch Industrial Panel PC
15 Inch Industrial Panel PC

  • 15" XGA TFT LCD Panel support 1024x768 pixels
  • Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
  • Front 6mm aluminum bezel with IP65 compliant
  • Front hardness glass protect screen ( touch option )

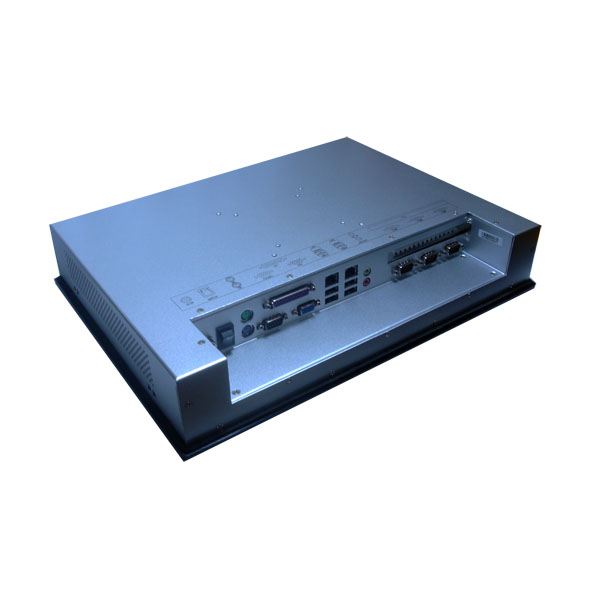

  • 4* COM, 1* LPT, 2 * PS/2, 1 * VGA, 4 * USB, 2* GLAN, 1* AUDIO, 1* MIC
  • 1 * PCI Slot, 1* Mini PCIe slot
  • Wireless LAN with antenna (option)
  • Panel ( Flush ) mount with clips
  • Standard VESA 75mm support stand , wall mount and swing arm mounting
Processor Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667MHz FSB
Chipset Intel NM10
Memory DDR3 2G RAM
Dispay Intel GMA3150 chipset
Storage 2.5" HDD SATA 320G
Ethernet 2 x 100/1000 LAN ports
VGA port 1 x VGA Connector
KB & Mouse 1 x PS2 port
Audio Realtek ALC662, 5.1 channel surround audio
USB Port 4 x USB 2.0
Serial Port 4 x RS-232, COM2, RS232/RS422/RS485
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe and 1 x PCI
Power supply 1 x DC input connector
Construction Front aluminum bezel and steel chassis
LCD display
Display Type 15" XGA TFT LCD
Resolution 1024x 768
Max.color 16.2M
Luminance 350 cd/m2
View Angle 150°(H) , 135°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 700:1
Response Time 8 ms
LCD MTBF 50, 000hrs
Available Options
Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard
DC Power Input Wide Range 8~28v DC input
Power supply
Input 100~240VAC , 50/60Hz
Output DC12V@ 10A / 120W , external ac adapter with lockable connector
Operate temperature 32°F~125°F(0°C to 50°C )
Storage temperature -4°F~140°F (-20°C  to 60°C )
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Approvals CE/ROHS
Packing info
Dimensions (WxHxD) 406x312x76 (mm)
Weight Net: 6kg, Gross:8.2 kg
Ordering informations
IPC-15D 15" all in one industrial panel pc with Intel AtomD525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD
IPC-15DT 15"  all in one industrial panel pc  withtouch screen, Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5"320G HDD, with Resistive Touch Screen
