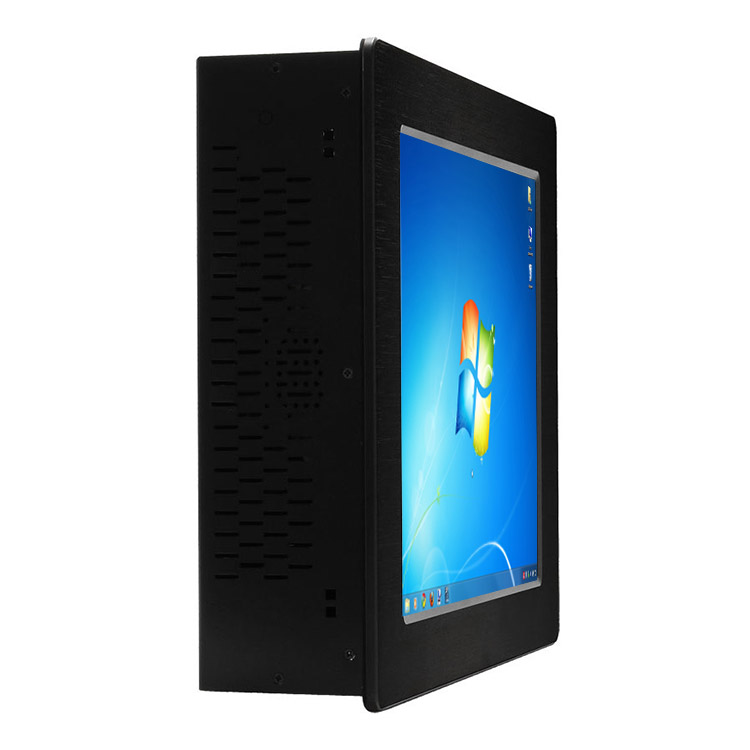

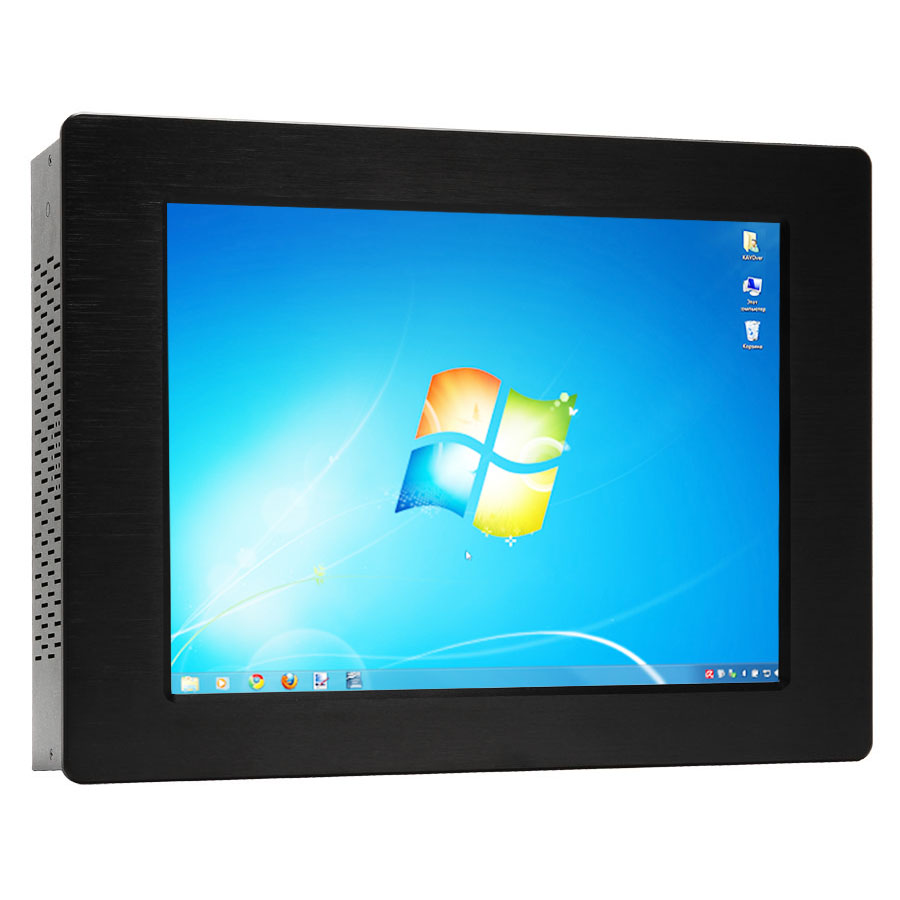

15 inches industrial panel pc with i3-3240 i5-3470 or i7-3770

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

15 Inch Industrial Panel Pc

15 Inch Panel Pc

15 Inch Touch Screen Pc

15 Inch Touch Panel Pc

Features

15" TFT SXGA LED Panel (1024 x 768) with resistive touch screen
Supports Intel Core i7/i5/i3 processor
System supports 1 x DDR3 DIMM slot ,up to 8G 1066/1333MHz SDRAM
6x COM (1x RS485), 1xDVI, 1x PS/2, 1xVGA, 6x2.0 USB, 2xLAN, 1x AUDIO & MIC
Offers 1xPCI Expressx16 slot and 1 xMini PCIe slot, for expansion
Rear panel with power LED and HDD LED Indication, Built-in 2x 3 Watts stereo speaker
Wireless LAN with antenna (optional), GPIO (optional)
Robust aluminum with IP65 compliant front bezel design
Modularize design for easy installation and maintenance
Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm

Specifications

Main System

CPU Intel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz FSB
Chipset Intel H61 chipset
System Memory 1x DIMM DDR3 800/1066/1333 SDRAM up to 8 GB; Preload 2GB RAM
LAN 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet
HDD (hard disk ) 2.5" SATA HDD; Preload 320GB HDD
Audio Realtek ® ALC662, 5.1 channel surround audio

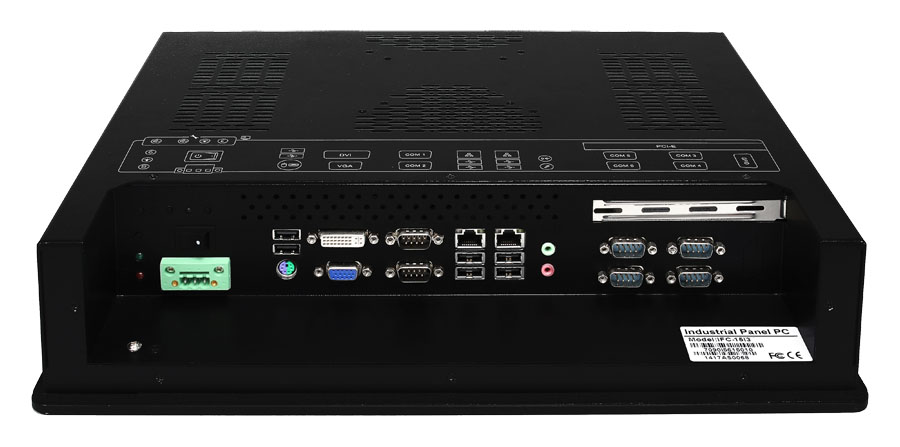

I/O Connector 5 x RS-232
1 x RS422/485
1x DVI-D port
1x PS/2 (Keboard/mouse)
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
6x USB2.0
1x 3Pin DC power input terminal block
Expansion 1xPCI Express x16 Slot, 1 x Mini PCIe slot

General

Construction Aluminum front bezel and Aluminum chassis
Color Black or OEM(>=100 units)
OS Support Windows 10/8/7, Windows XP, Linux
Mounting Panel mount or Standard VESA 75/100mm
Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating 92W

LCD display

Display type 12.1" XGA TFT LCD LED Backlight
Resolution 1024 x 768 pixels
Luminance 500 cd/m2
Viewing angle 160°(H) , 160°(V)

Touchscreen

Type Analog Resistive 5-wire
Controller Interface Internal USB interface controller
Resolution Continuous
Light Transmission 81% or more
Operating Force ≤100g
Life Expectancy 35 Million

Environmental

Operate Temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Humidity 10% to 90%@ 40°C , on-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Ingress Protection Front panel: IP65

Packing info

Dimensions(WxHxD) 406 x 312 x 90mm
NET weight 8.5 KG

Ordering informations

IPC-15i7 15 inch Industrial Panel PC with Intel i7/i5/i3 Processor, 2.5"SATA 320G HDD(or 32G SSD) , 2G RAM(4G & 8G optional), 6*COM(5* RS232.1 * 485), 1*VGA, 1* DVI,6*USB 2.0, 2*LAN, 1* Audio, 1* MIC, 1* PS2
IPC-15i7T 15 inch Industrial Panel PC IPC-15i7 with touch screen
CPU Description Intel® Core™ i3-3240 Processor (3M Cache, 3.40 GHz)
Intel® Core™ i5-3470 Processor (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-3770 Processor (8M Cache, up to 3.90 GHz)
