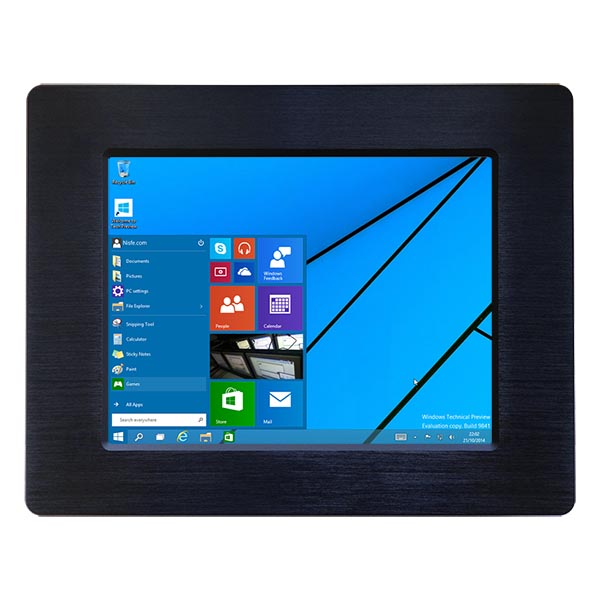

  3. 12.1 inch Touch screen Industrial Panel PC supports intel Core i7 i5 i3 cpu

IPC-12i7

IPC-12i7

12.1 inch Touch screen Industrial Panel PC supports intel Core i7 i5 i3 cpu

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

Industrial Panel Pc
Industrial Panel Pc

Touch Screen Pc
Touch Screen Pc

Touch Panel Pc
Touch Panel Pc

Panel Pc
Panel Pc

Features
  • 12.1" TFT XGA LED Panel (1024 x 768) with resistive touch screen
  • Supports Intel Core i7/i5/i3 processor
  • System supports 1 x DDR3 DIMM slot ,up to 8G 1066/1333MHz SDRAM
  • 6x COM (1x RS485), 1xDVI, 1x PS/2, 1xVGA, 6x2.0 USB, 2xLAN, 1x AUDIO & MIC
  • Offers 1 xMini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication, Built-in 2x 3 Watts stereo speaker
  • Wireless LAN with antenna (optional), GPIO (optional)
  • Robust aluminum with IP65 compliant front bezel design
  • Modularize design for easy installation and maintenance
  • Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm
Specifications
Main System
  • CPU Intel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz FSB
  • Chipset Intel H61 chipset
  • System Max 8 GB RAM; Preload 4GB RAM
  • LAN 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet
  • HDD (hard disk ) 2.5" SATA HDD/ SSD; Preload 250GB SSD
  • Audio Realtek ® ALC662, 5.1 channel surround audio

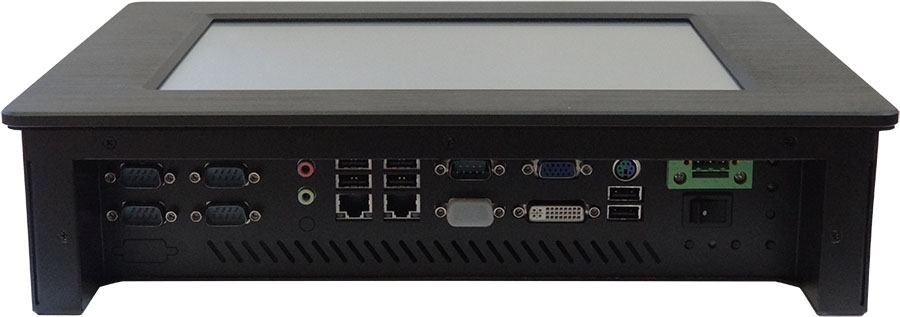

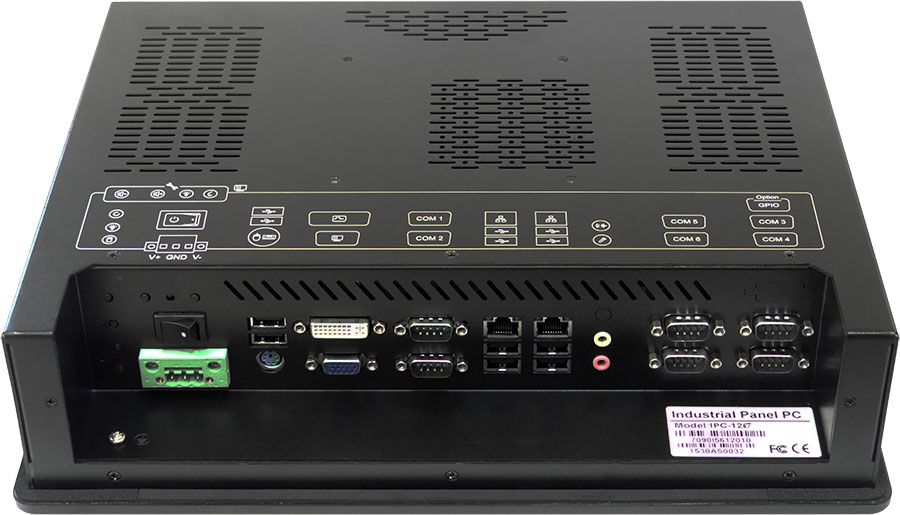

  • I/O Connector 5 x RS-232
    1 x RS422/485
    1x DVI-D port
    1x PS/2 (Keboard/mouse)
    1x DB-15 Connector
    1x Audio (Mic-in / Line-out)
    2x 10/100/1000MLAN port ( RJ-45 )
    6x USB2.0
    1x 3Pin DC power input terminal block
  • Expansion Mini-PCIE wireless Lan card with antenna(Optional)
General
  • Construction Aluminum front bezel and Aluminum chassis
  • Color Black or OEM(>=100 units)
  • OS Support Windows 10/8/7, Windows XP, Linux
  • Mounting Panel mount or Standard VESA 75/100mm
  • Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating    92W
LCD display
  • Display type 15" XGA TFT LCD LED Backlight
  • Resolution 1024 x 768 pixels
  • Luminance 450 cd/m2
  • Viewing angle 160°(H) , 140°(V)
Touchscreen
  • Type Analog Resistive 5-wire
  • Controller Interface Internal USB interface controller
  • Resolution Continuous
  • Light Transmission 81% or more
  • Operating Force ≤100g
  • Life Expectancy 35 Million
Environmental
  • Operate Temperature -10°C~ 60°C (-14~140°F)
  • Storage Temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Humidity 10% to 90%@ 40°C , on-condensing
  • Vibration 17 to 500HZ 1G PTP
  • Operating Shock 1G /peak ( 11m sec)
  • Ingress Protection Front panel: IP65
Packing info
  • Dimensions(WxHxD) 355 x 279 x 88mm
  • NET weight 8.0 KG
Ordering informations
  • IPC-12i7 12.1" Industrial Panel PC with Intel i7/i5/i3 Processor, 2.5"SATA SSD/ HDD size optional (Preload 250G SSD), 4G RAM(8G optional), 6*COM(5*    RS232.1 * 485), 1*VGA, 1* DVI,6*USB 2.0, 2*LAN, 1* Audio, 1* MIC, 1* PS2
  • IPC-12i7T 12.1" Industrial Panel PC IPC-12i7 with touch screen
  • CPU Description Intel® Core™ i3-3240 Processor (3M Cache, 3.40 GHz)
    Intel® Core™ i5-3470 Processor (6M Cache, up to 3.60 GHz)
    Intel® Core™ i7-3770 Processor (8M Cache, up to 3.90 GHz)
    Other LGA1155 socket CPU
